Olivetti Explor 200XS - Touch Screen Board; Touch Screen Board Connectors; Inverter Board; Inverter Board Connectors

1-16 XZAC4074

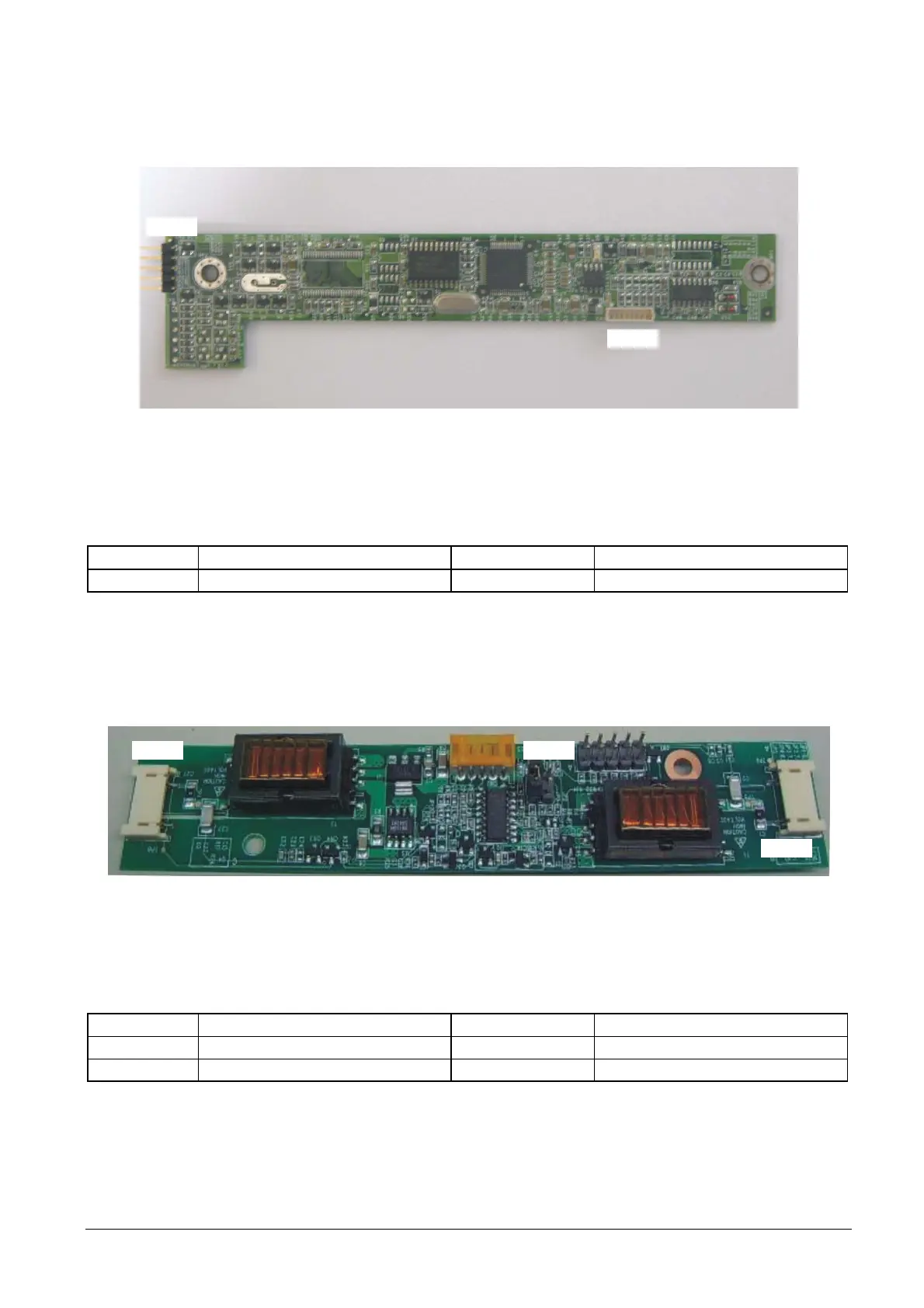

1.6 TOUCH SCREEN BOARD
Figure 1-16
1.6.1 Touch screen board connectors
Connector Function Connector Function
CN1 Motherboard connection CN3 Touch screen connection
1.7 INVERTER BOARD
Figure 1-17
1.7.1 Inverter board connectors
Connector Function Connector Function
CN1 Motherboard connection CN3 LCD connection
CN2 LCD connection
CN3
CN1
CN3
CN2 CN1
