3.11 DISASSEMBLY OF THE MOTHERBOARD
To remove the motherboard, proceed as follows:
• Remove the motherboard cover as described above.

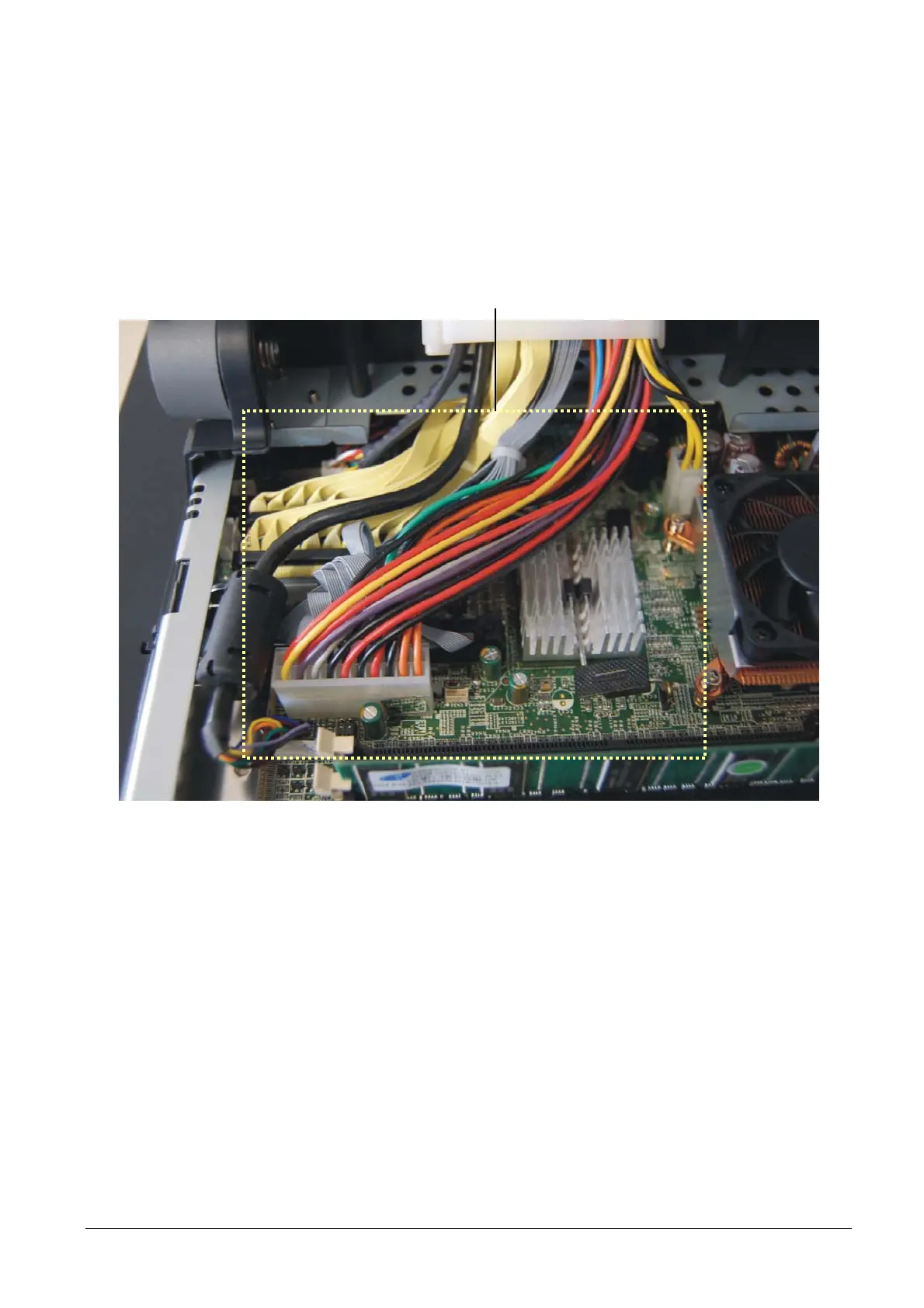

• Disconnect all the connections to the motherboard.
DISCONNECT
Figure 3-21
