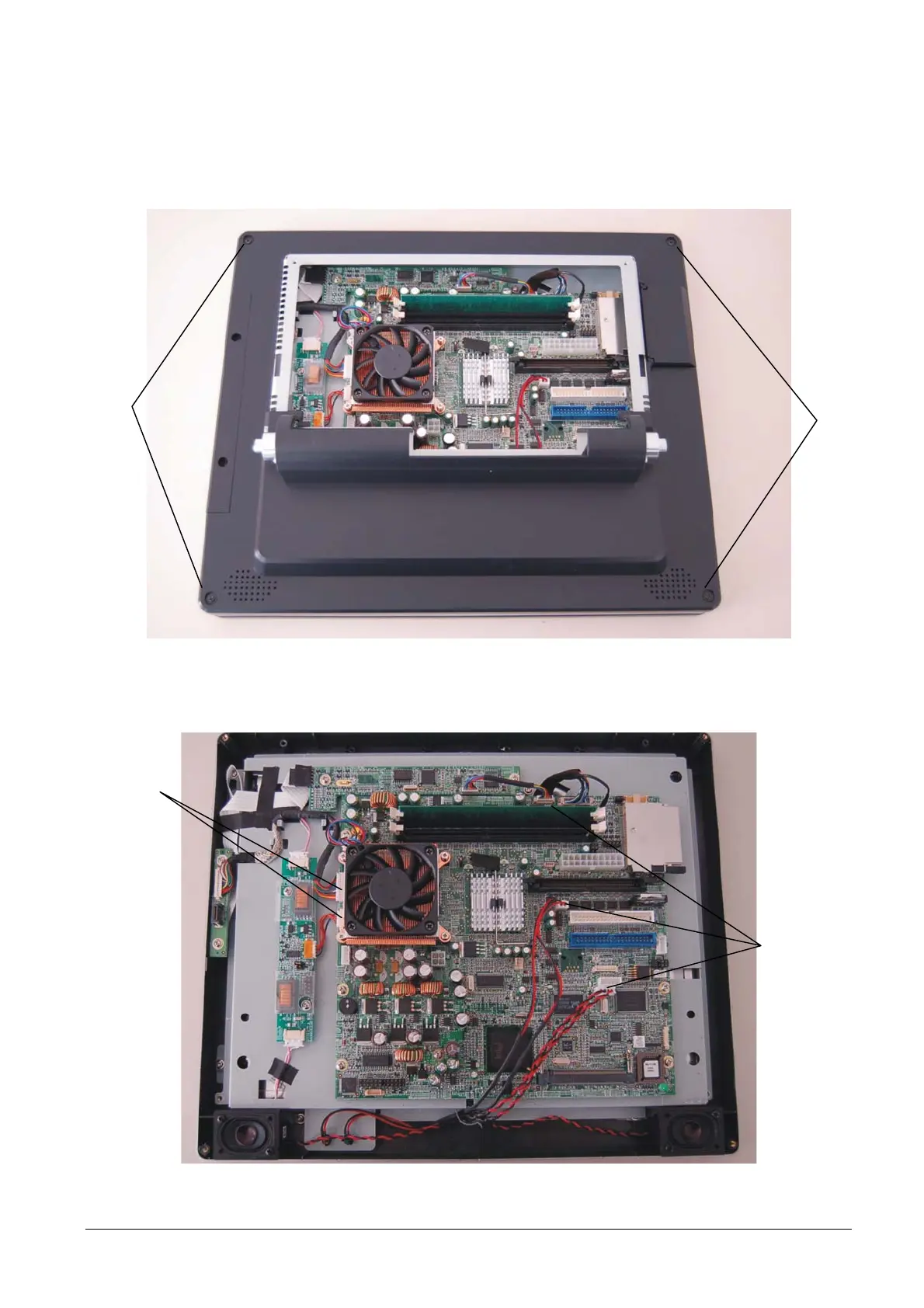

• Remove the screws A. Very carefully, exert pressure from both sides in order to separate the base module
(including the LCD screen) from the housing.
NOTE: the photo shows the motherboard released from the LCD in order to facilitate identification of the
position of the screws.
A
A
Figure 3-22
• Disconnect the remaining connections.
DISCONNECT
DISCONNECT
Figure 3-23
