3.5 REPLACEMENT OF THE POWER SUPPLY UNIT
To remove the power supply unit, proceed as follows:
• Remove the cable cover as described above.
• Lift the rear cover as described above.
• Operating from underneath the base module, loosen screw A.
• Remove the screws B.
• Disconnect the connections involved.
• Remove the power supply unit.

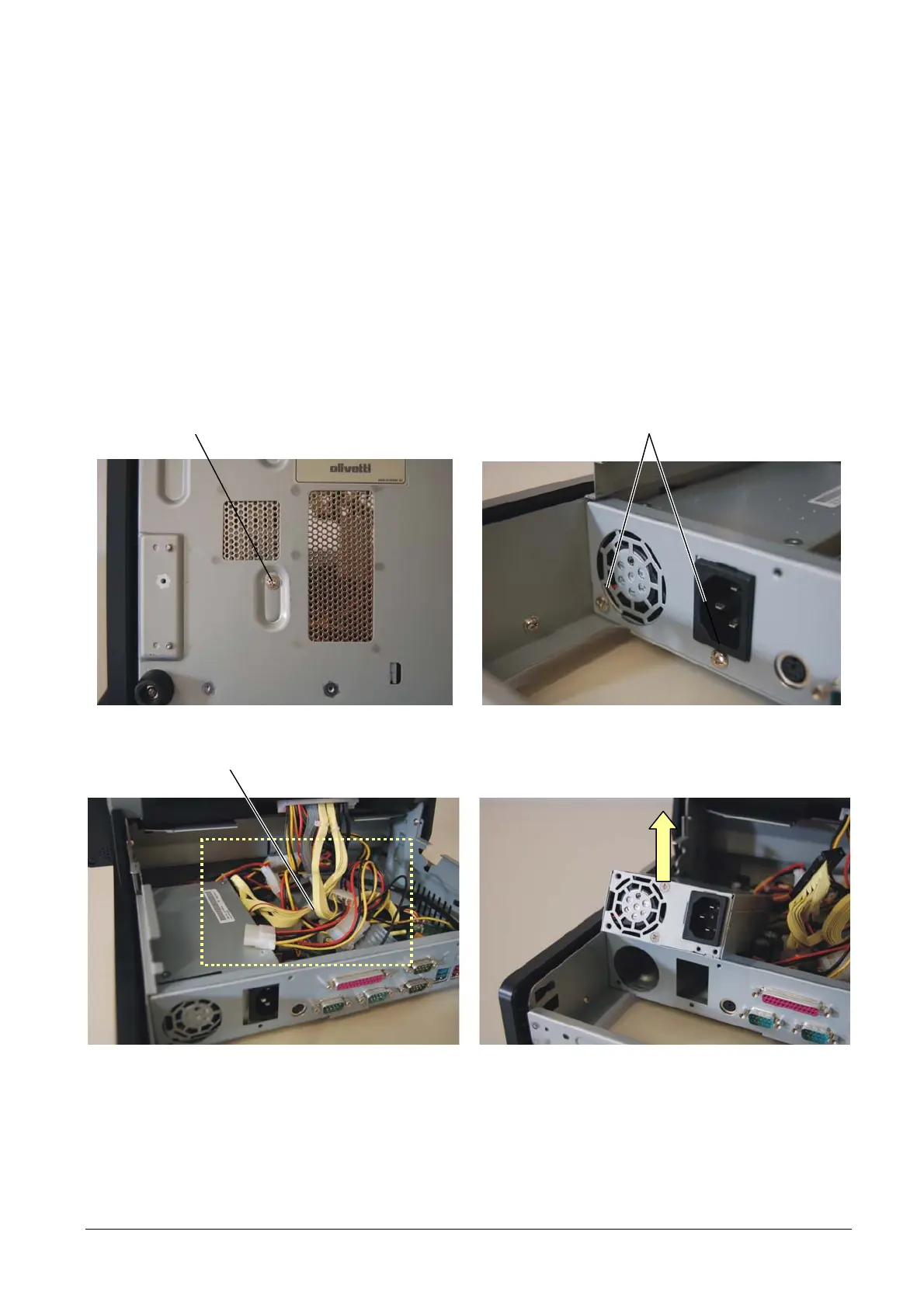

Figure 3-8
A B
DISCONNECT
Figure 3-9
• For re-assembly, reverse the above operations.
3-6 XZAC4074
