2.4 INSTALLATION OF THE CUSTOMER DISPLAY (FIELD OPTION)
• Position connection cable A in hole B on the base as shown in the figure.
• Slide the other end of connection cable A though the support of display C.
• Fasten the support to the base using screws D.
• Connect cable A to the COM port.
• Connect cable A to the customer display.
• Fasten the customer display to the support using screws E.
B
A
A C
A
D
D
A E
E

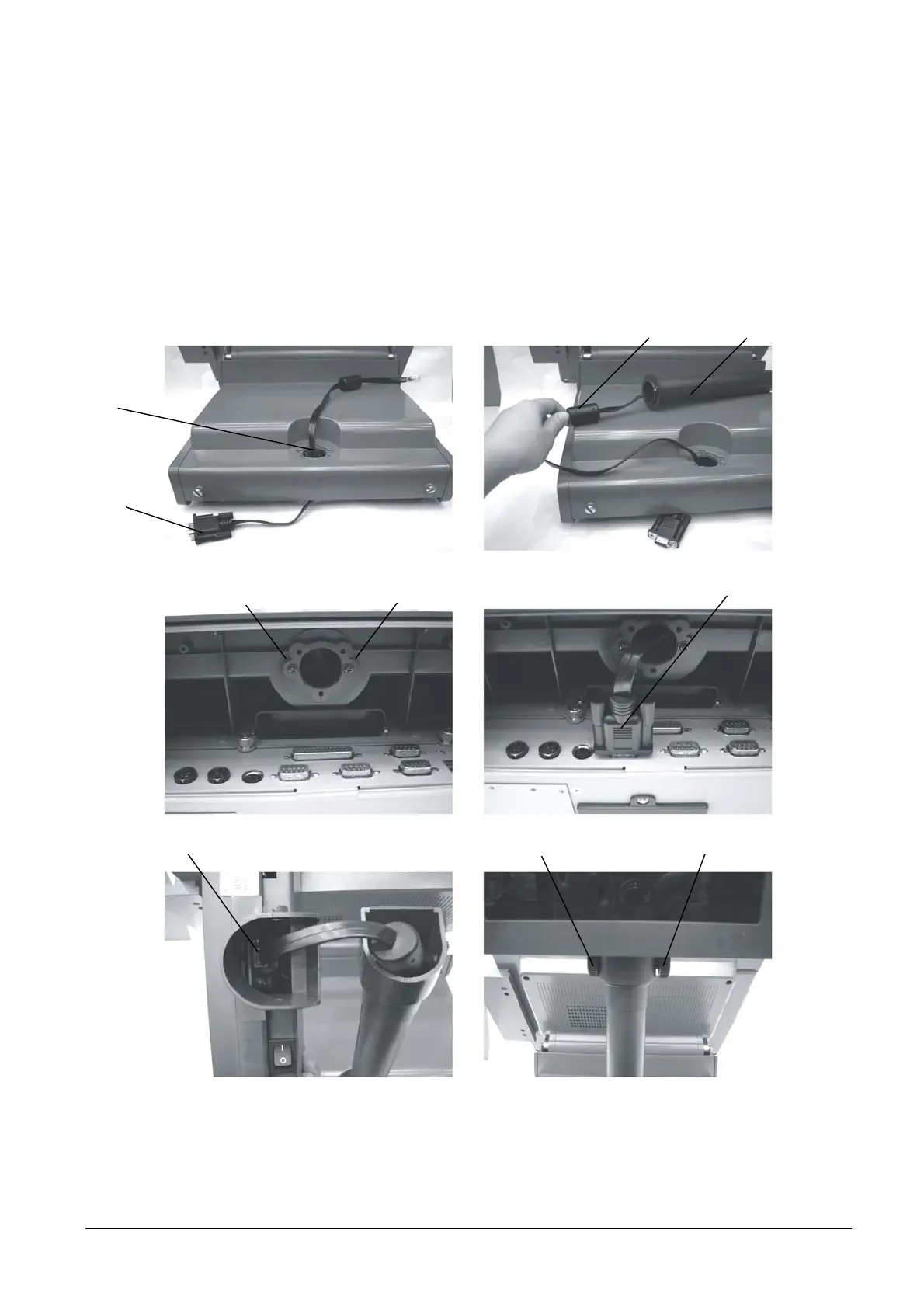

Figure 2-3
After installing the device, check the setting of the COM port used. Refer to the description of the jumpers in
the previous chapter for correct powering of the module.
Correct functioning of the device can be tested using the “Test Program” on the driver installation CD.
XZAC4074 Service Manual 2-3
