XZAC4074 Service Manual 1-13
1.5 REAR PANEL I/O BOARD

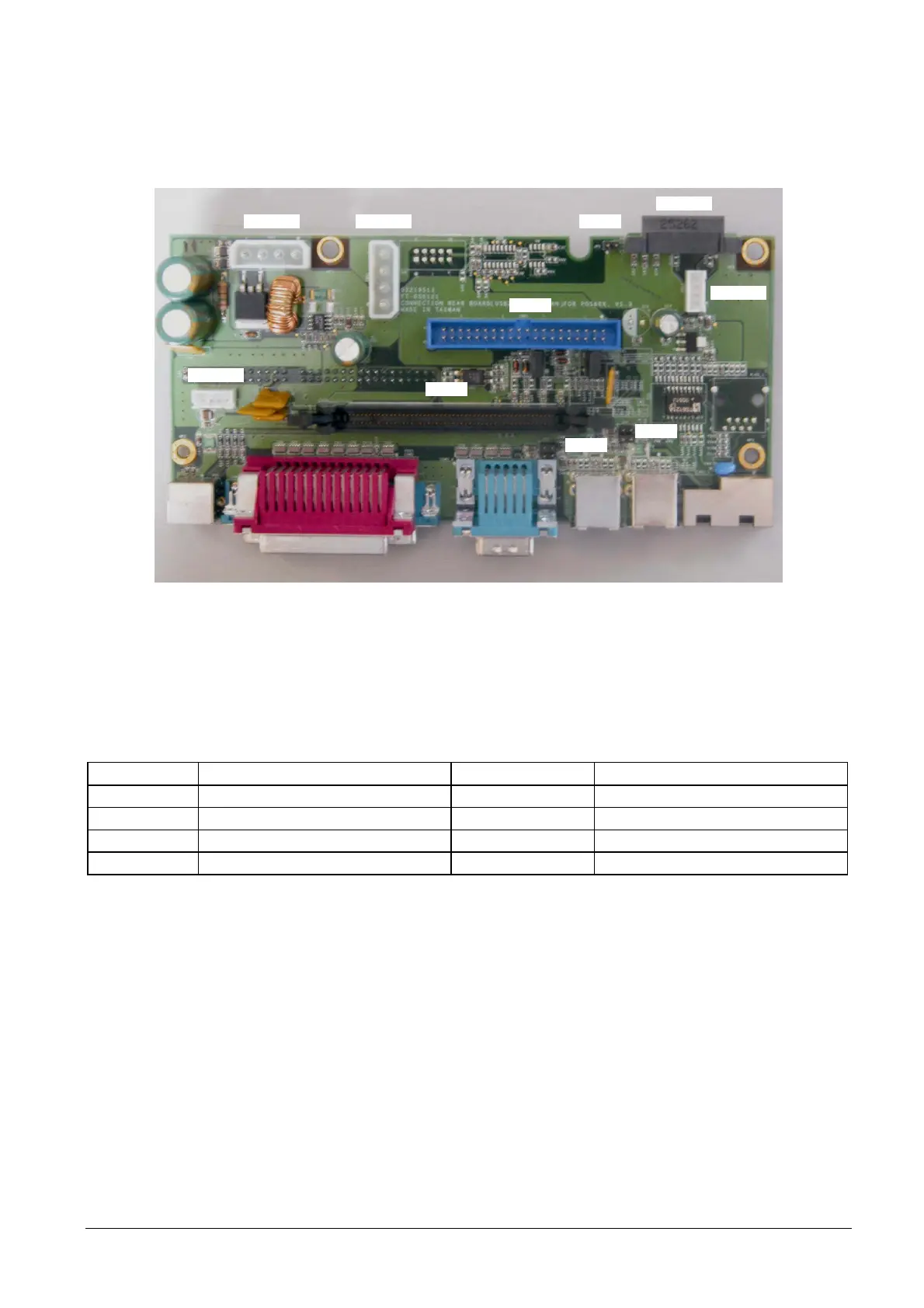

Figure 1-13
1.5.1 Rear panel I/O board connectors
Connector Function Connector Function
CN7 Motherboard I/O connection PWR1 Power connector
CN11 CD-ROM connection PWR2 Power connector
CN12 Audio IDE1 IDE for CD-ROM
CN14 Not used
PWR1 PWR2
IDE1
JP5
CN11
CN12
JP4
JP3
CN7
CN14
