3.18 DISASSEMBLY OF THE BADGE READER BOARD
To remove the board of the badge reader, proceed as follows:
• Remove the motherboard cover as described above.
• Back off screws A.
• Disconnect connection B and extract the board.
A
A
B

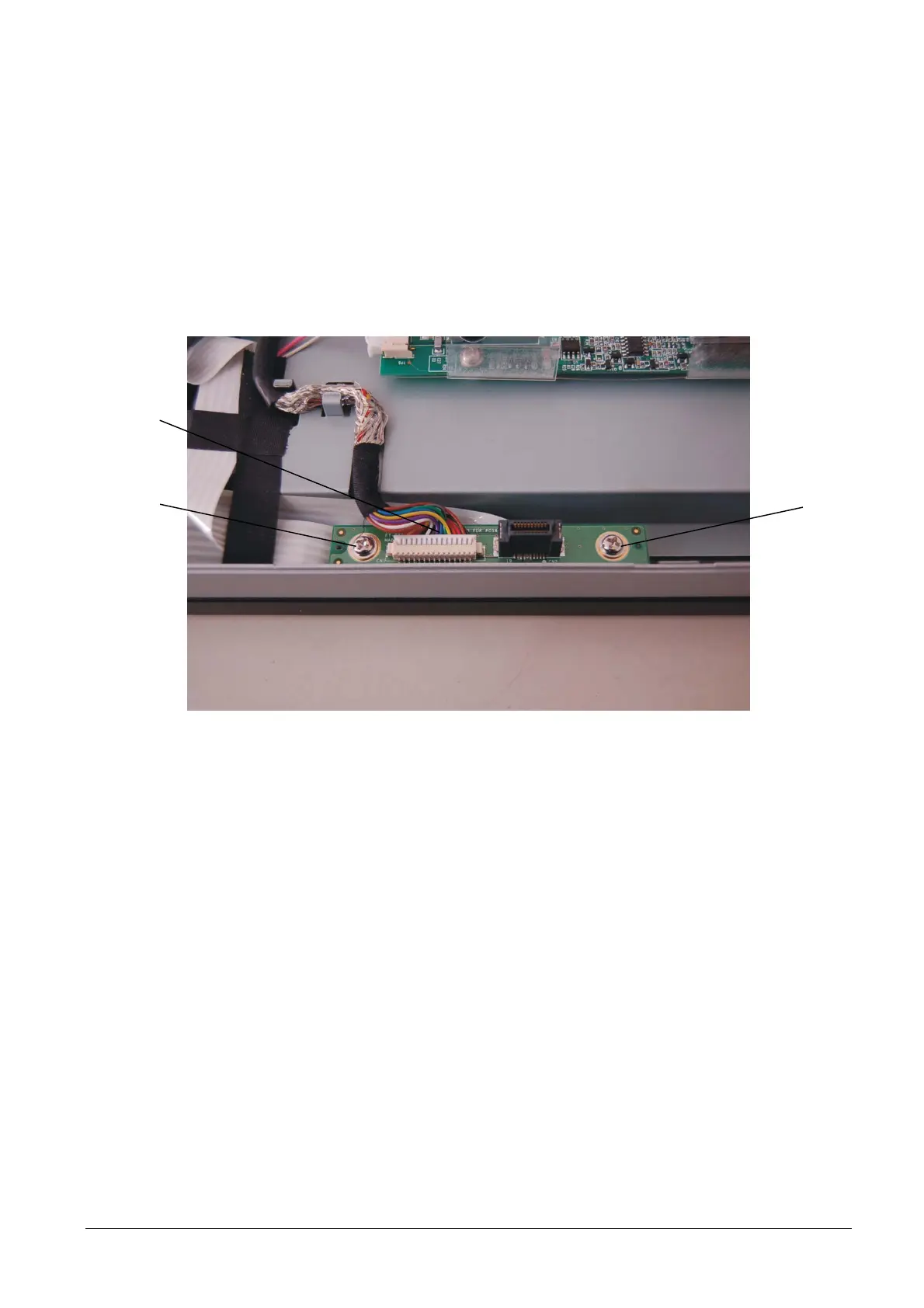

Figure 3-36
• For re-assembly, reverse the above operations.
