PROCEDURE:
To make the following checks, raise and lock the rear cover as described in Chapter 3.
• Check that the IDE cable A and the power cord of the Hard Disk B are connected correctly.
• Check that the IDE cable of the motherboard C is connected correctly.
• Check that the IDE cable has not been damaged D.

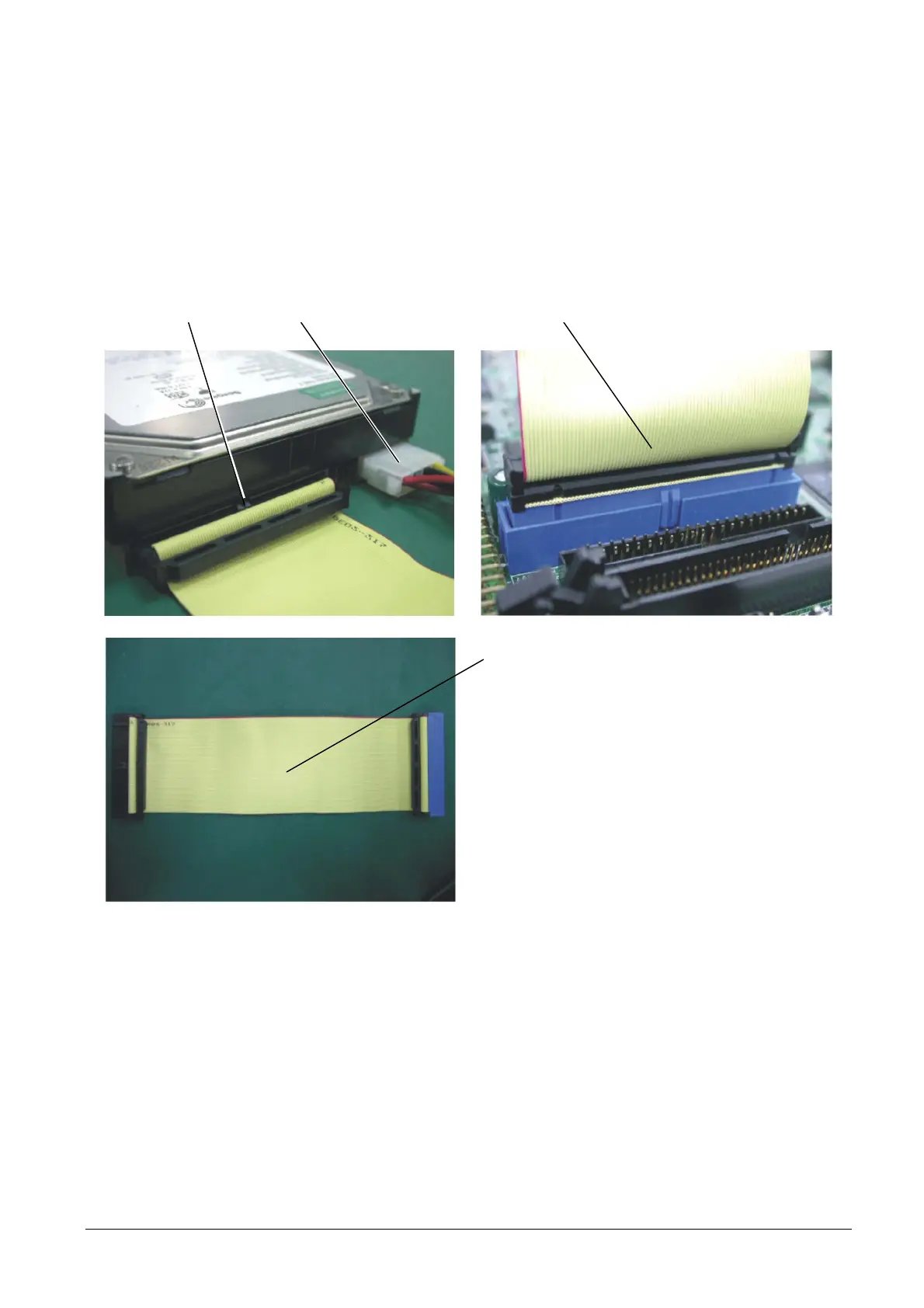

Figure 1-20
A B C
D
