Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
3-1 Operation of Digital Operator
3-1-2 Key Operation Method
The 3G3MX2-EV2 Series Inverter features a 5-digit LED data display.
To display a value with a large number of digits, display the upper 5 digits and use the Enter key to shift
right. Use the Mode key to shift left. The least significant digit and the most significant digit are indicated
by and respectively.
Digit Shift Display Mode
Enter
Enter
Enter
Enter
Enter
Enter
Least significant
digit indication
LED data display
returns to the initial
display after time
elapses.

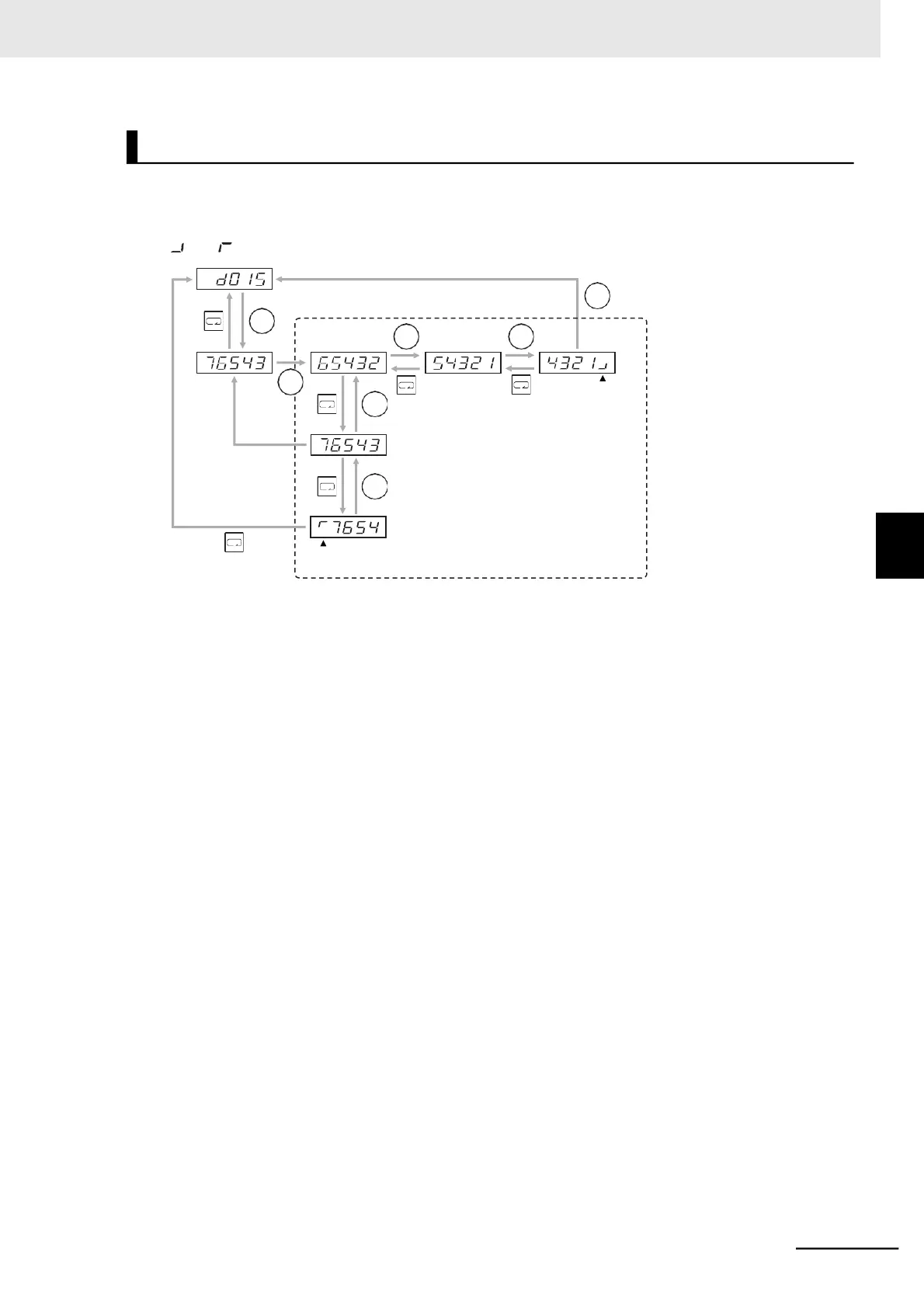

Digit shift display mode
Press the Enter key to shift the data
Enter
display one digit to the right.
Press the Mode key to shift the data
display one digit to the left.
Most significant digit indication
3
