2-1 Installation
2-1-1 Inverter Installation

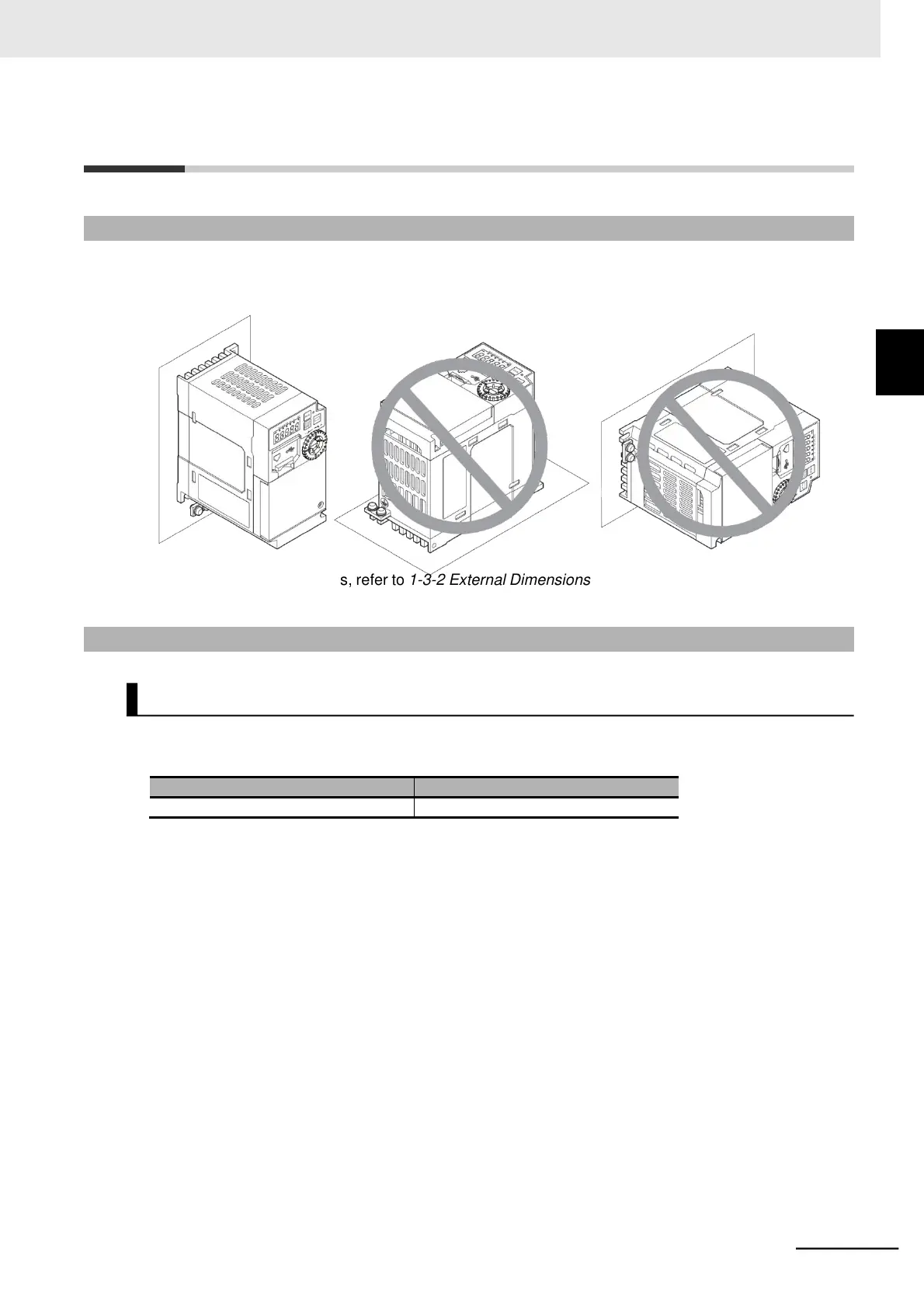

Mount the 3G3MX2-EV2 Series Inverter vertically on a wall with the product’s longer sides upright.
The material of the wall must be noninflammable such as a metal plate.
For the mounting dimensions, refer to 1-3-2 External Dimensions on page 1-17.
2-1-2 Installation Environment
Install the inverter in a location that meets the following conditions.
•
Measure and check the ambient temperature at a point approximately 5 cm away from the center
bottom of the inverter.
•
For side-by-side installation, derating of the rated output current of the inverter may be required
even at an ambient temperature of 40°C or lower.
•
The inverter life (in particular, capacitor life) will be significantly shortened if the inverter is used at
a higher ambient temperature.
•
Do not install the inverter in hot and humid locations subject to condensation.
•
Avoid installing the inverter in a dirty environment subject to oil mist, dust, or other airborne parti-
cles. Install the inverter in a clean place, or in a full-enclosure type panel.
•
Take measures during installation and operation to prevent foreign objects such as metal parti-
cles, oil, and water from entering the inverter.
•
Do not install the inverter in locations subject to direct sunlight.
•
Do not install the inverter in locations subject to corrosive or flammable gases.
