2 Design
2 - 13
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
Terminal
symbol
Terminal name
Description
R/L1
L1
Main power supply input
terminal
Connect the DC input power supply.
For single-phase 200-V type Inverters (Model: 3G3MX2-AB-EV2),
connect these to the L1 and N terminals, respectively.
S/L2
T/L3
N
U/T1
Inverter output terminal
Connect a 3-phase motor.
V/T2
W/T3
+1
DC reactor connection
terminal
Remove the short-circuit bar between the terminals +1 and P/+ (for
switching the inverter’s built-in filter function) and connect an optional
DC reactor.
P/+
P/+
Braking resistor connec-
tion terminal
Connect an optional braking resistor (if a braking torque is required).
RB
P/+
Braking unit connection
terminal
Connect optional braking units (if a braking torque is required and that
produced by the built-in braking circuit is insufficient).
N/−
G
Ground terminal
This is the ground terminal. Connect this terminal to the ground.
200-V class should be connected under type-D grounding conditions;
400-V class should be connected under type-C grounding conditions.
For 200-V class models with a capacity of 3.7 kW or lower and 400-V
class models with a capacity of 4.0 kW or lower, the ground terminal
is located on the cooling fin.
2
2-3 Wiring

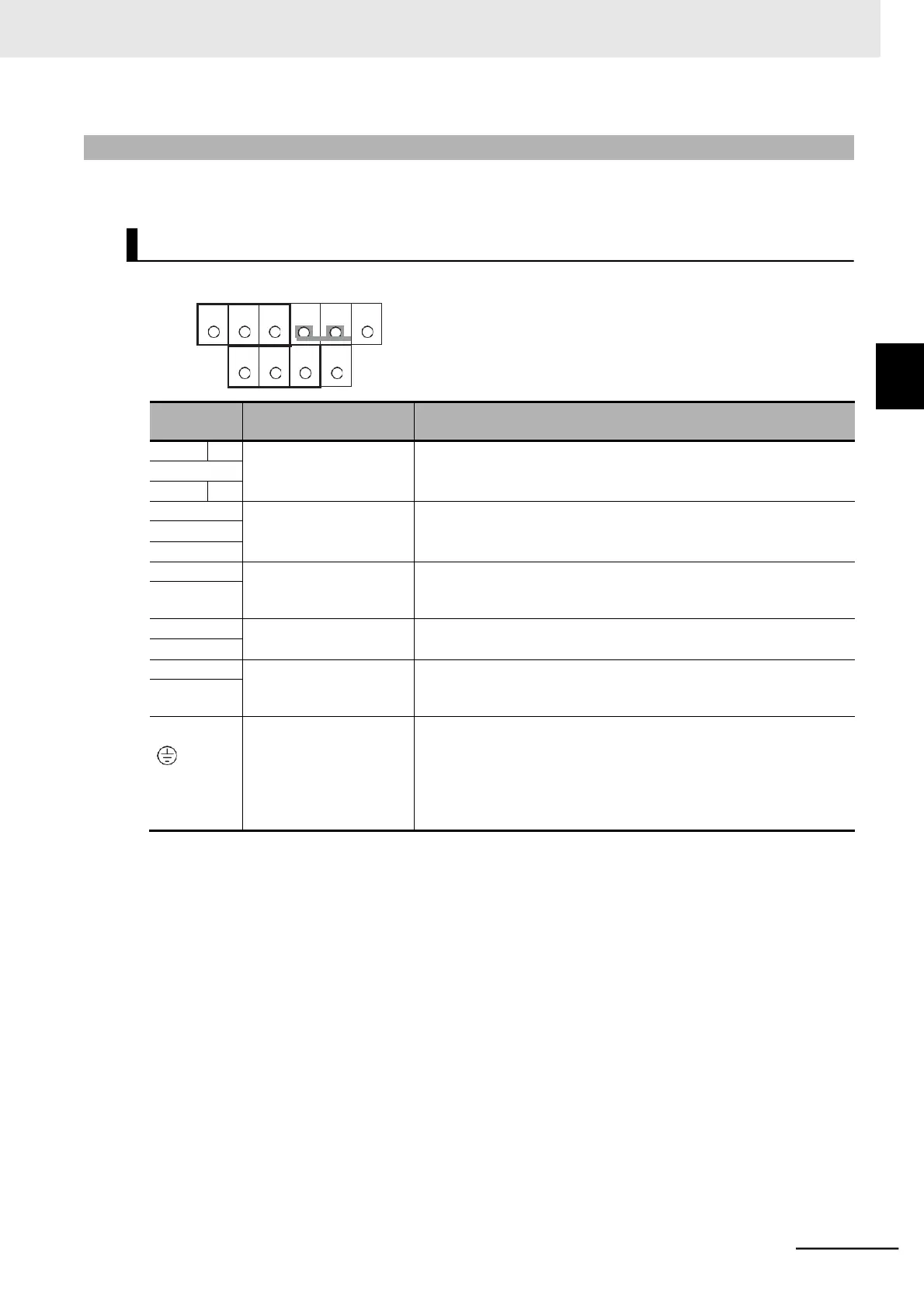

2-3-2 Arrangement and Function of Main Circuit Terminal Block
R/L1
S/L2
T/L3
+1
P/+
RB
U/T1
V/T2
W/T3
N/-
Main Circuit Terminal Block
