Omron 3G3MX2-A2002-EV2 - 2-Step Acceleration;Deceleration (2 CH); Reset (RS)

5 Basic Settings
5 - 52
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
⚫ Enabled during operation

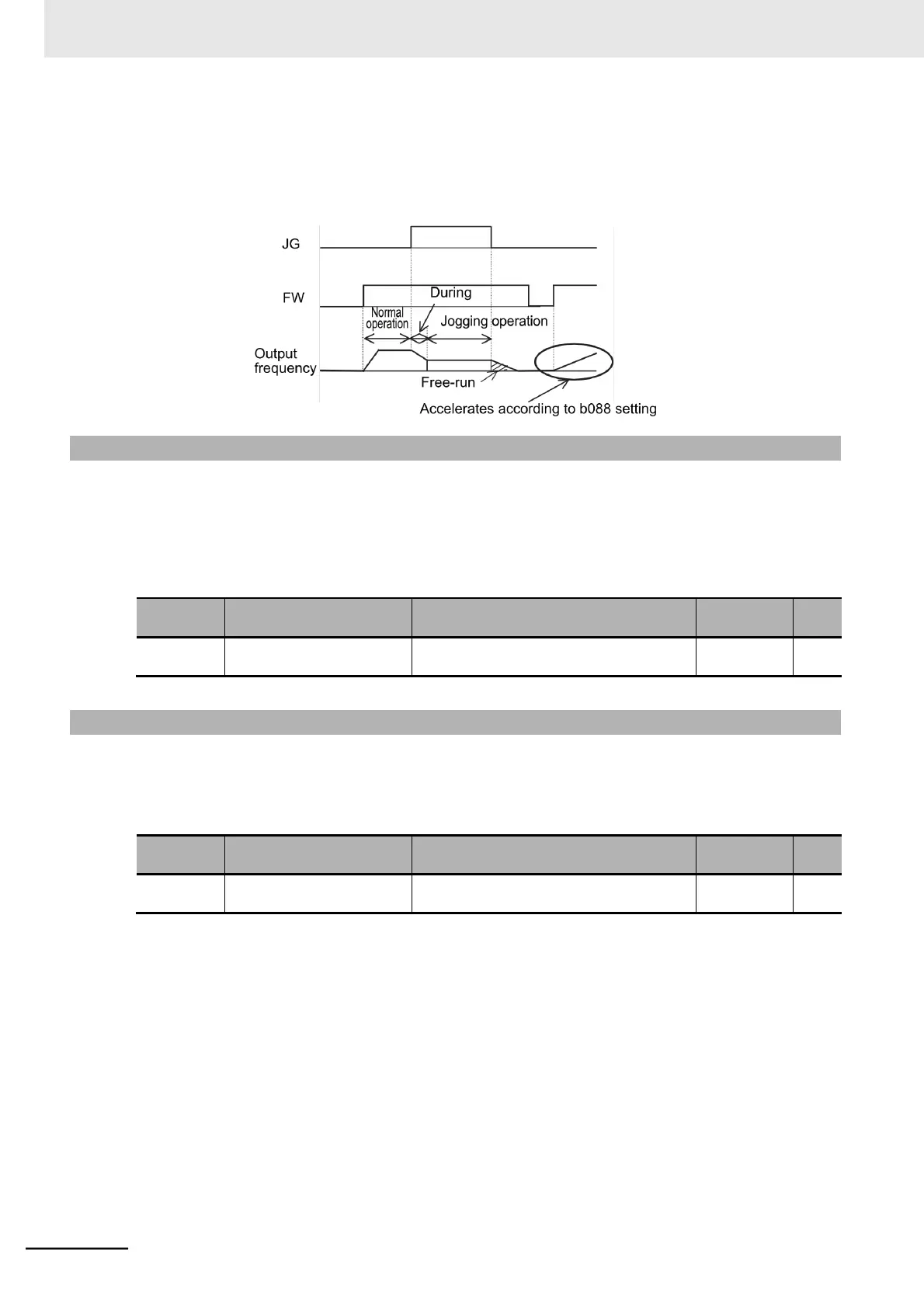

When the Jogging Stop Selection (A039) is set to 03, 04, or 05, jogging operation is performed even
if the FW signal turns ON first.
However, if the JG signal turns OFF first, the motor falls in a free-run stop state.
5-9-7 2-step Acceleration/Deceleration (2CH)
• Use this function to switch between two acceleration/deceleration time settings or change the accel-
eration/deceleration time on the way during acceleration/deceleration.
• Allocate one of the Multi-function Input 1 to 7 Selection (C001 to C007) to 09 (2CH).
• For the 2-step acceleration/deceleration function, refer to 5-6-3 2-step Acceleration/Deceleration
Function on page 5-36.
Parameter
No.
Function name
Data
Default data
Unit
C001 to
C007
Multi-function Input 1 to 7
Selection
09: 2CH (2-step acceleration/deceleration)
−
−
5-9-8 Reset (RS)
• This function resets an inverter trip error.
• Allocate one of the Multi-function Input 1 to 7 Selection (C001 to C007) to 18 (RS).
• For the reset function, refer to 5-8 Reset Method Settings on page 5-42.
Parameter
No.
Function name
Data
Default data
Unit
C001 to
C007
Multi-function Input 1 to 7
Selection
18: RS (Reset)
−
−
