5 Basic Settings
5 - 35
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

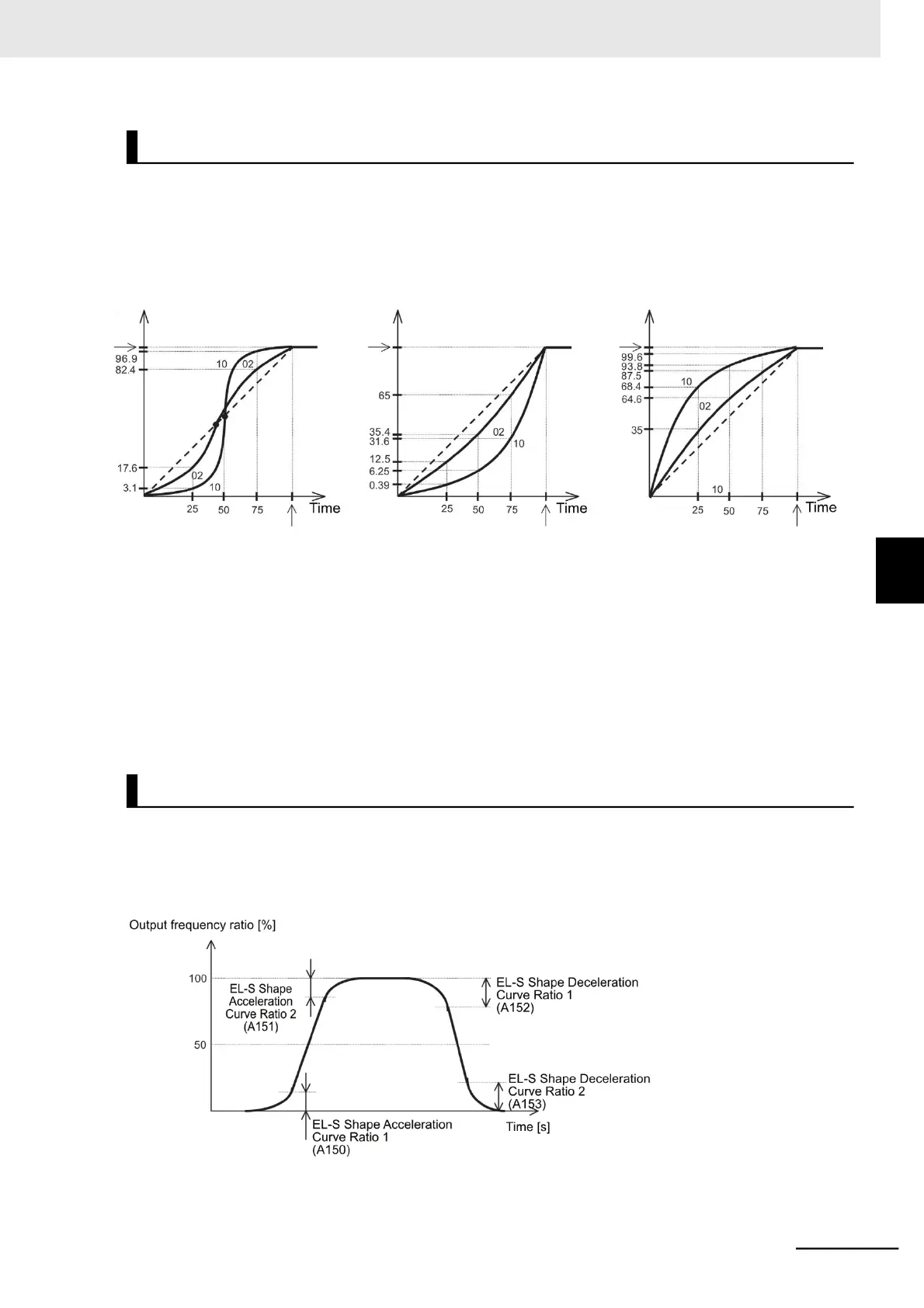

Set the Acceleration Curve Parameter/Deceleration Curve Parameter (A131/A132) according to the fol-
lowing table.
S shape (A097/A098=01)
Output frequency [Hz]
Target frequency
[100%]
U shape (A097/A098=02)
Output frequency [Hz]
Target frequency
[100%]
Inverted U shape (A097/A098=03)
Output frequency [Hz]
Target frequency
[100%]
Acceleration time to the
set output frequency
value [100%]
Acceleration time to the
set output frequency
value [100%]
Acceleration time to the
set output frequency
value [100%]
• The S-shape pattern has a portion where acceleration/deceleration time is faster in the middle of the
curve.
• If the LAD cancel (LAC) function is allocated to a multi-function input terminal and that terminal is
input, the acceleration/deceleration pattern is ignored and the output frequency follows the frequency
reference.
With the EL-S-shape pattern, you can set the EL-S Shape Acceleration/Deceleration Curve Ratio
(A150 to A153) independently.
Setting all of these parameters to 50 (%) is equivalent to selecting the S-shape pattern.
Pattern Curve Parameter (Curve Factor)
5
5-6 Acceleration/Deceleration
Time Settings
5-6-2 Acceleration/Deceleration
Pattern
EL-S-shape Curve Ratio
