7 Other Functions
7 - 26
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
Parameter
No.
Function name
Data
Default
data
Unit
A011/A101/
A161
O/OI/VR Start Frequency
0.00 to 590.00
Set the frequency at which to start ana-
log input.
0.00
Hz
A012/A102/
A162
O/OI/VR End Frequency
0.00 to 590.00
Set the frequency at which to end ana-
log input.
0.00
Hz
A013/A103/
A163
O/OI/VR Start Ratio
0. to V/OI/VR end ratio
Set the ratio of the start frequency to
the external frequency reference of 0 to
10 V or 0 to 20 mA.
0.
(OI: 20.)
%
A014/A104/
A164
O/OI/VR End Ratio
O/OI/VR Start Ratio to 100.
Set the ratio of the end frequency to the
external frequency reference of 0 to
10 V or 0 to 20 mA.
100.
%
A015/A105/
A165
O/OI/VR Start Selection
00: Start frequency
(A011/A101/A161)
(Output frequency is
A011/A101/A161 value for 0% to
A013/A103/A163)
01: 0 Hz
(Output frequency is 0 Hz for 0%
to A013/A103/A163.)
01
−

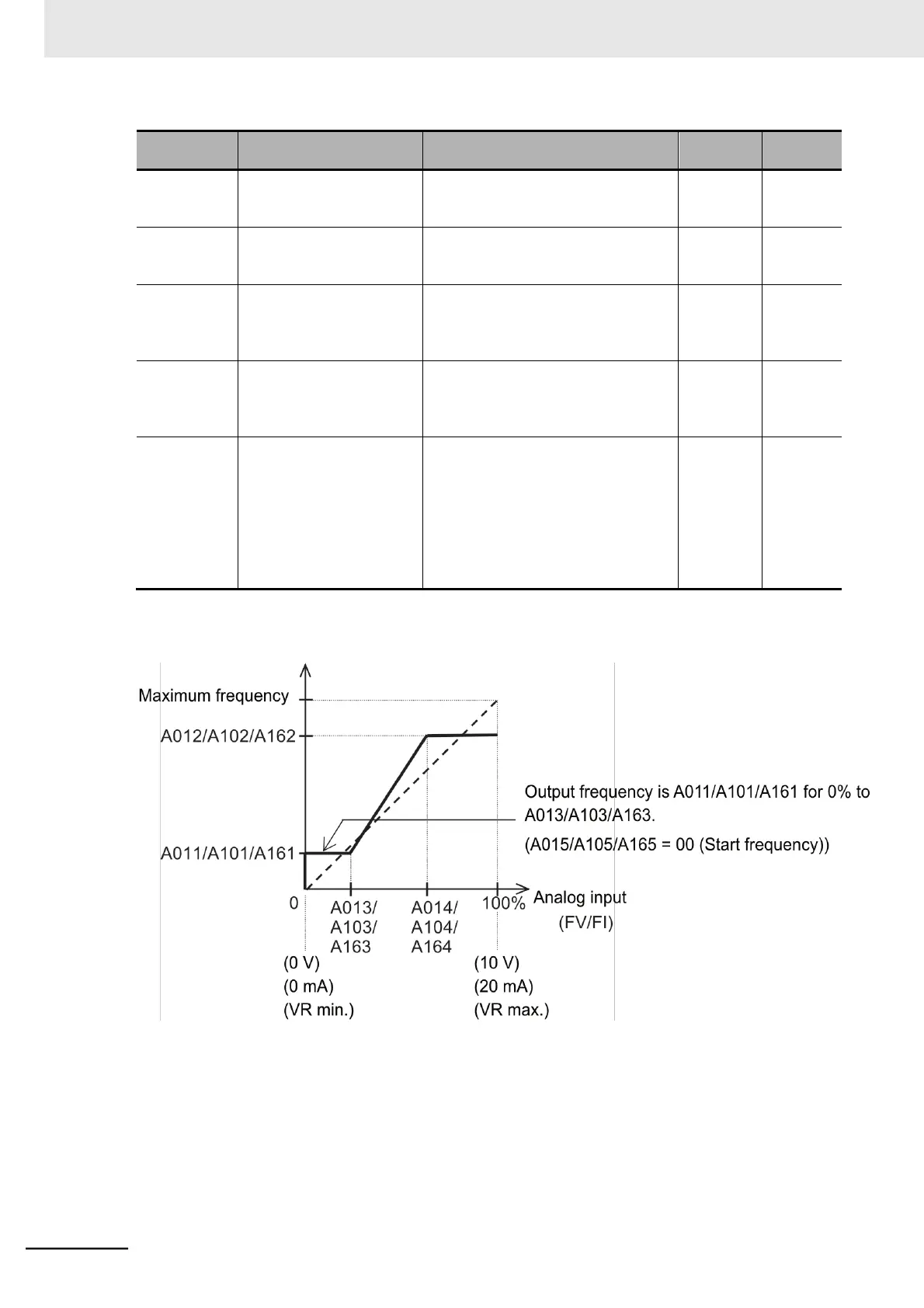

(Example 1) A015/A165 = 00 (Start frequency)
