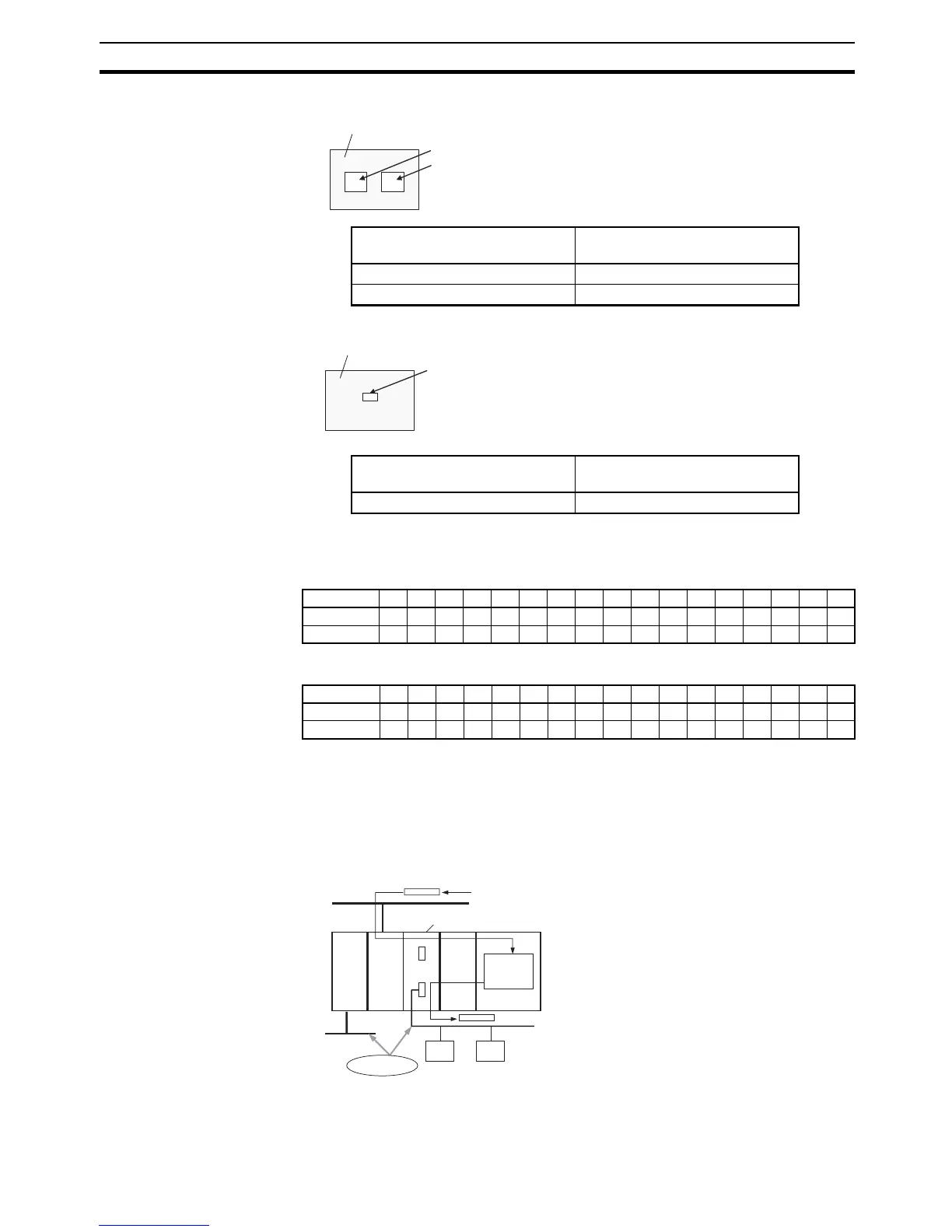

Serial Gateway Overview Section 3-6
CP-series CPU Unit
NSJ Controller
Serial Communications Unit/Board
• Serial Port 1 Unit Addresses
• Serial Port 2 Unit Addresses
These settings enable the serial communications path to be treated as a sin-
gle FINS network. Further, the network address allocated to the serial port
can be specified in the destination network address part of the FINS mes-
sage. This enables messages to passed on to serial ports in a system com-
prised of multiple networks connected to a single PC (including the serial
communications path).
Serial communications port on
Option Board of CPU Unit
Unit address
Serial port 1 FD hex (253 decimal)
Serial port 2 FC hex (252 decimal)
Serial communication port on
NSJ Controller
Unit address
Serial port C FC hex (252 decimal)
Unit number0123456789ABCDE F
Board
Hexadecimal 80 84 88 8C 90 94 98 9C A0 A4 A8 AC B0 B4 B8 BC E4
Decimal 128 132 136 140 144 148 152 156 160 164 168 172 176 180 184 188 228
Unit number0123456789ABCDEF
Board
Hexadecimal 81 85 89 8D 91 95 99 9D A1 A5 A9 AD B1 B5 B9 BD E5
Decimal 129 133 137 141 145 149 153 157 161 165 169 173 177 181 185 189 229
CP-series CPU Unit
Serial port 1
Serial port 2
NSJ Controller
Serial port C on
Controller Section
FINS message
Serial Communications Unit/Board
CPU Unit
Serial communications path
Local
network
table
Routing
enabled
Specify on which path
to send the message.
