FINS Commands Section 5-3
Message (response)
Each message is returned in numerical order, from smaller to larger, accord-
ing to the message number. Each message consists of 32 ASCII characters
(32 bytes). The total number of bytes of the messages is calculated as fol-
lows:
The number of messages read × 32 bytes
If a message consists of less than 32 bytes, the remainder will be filled with
spaces (20 hex). If no message has been registered for a message number
that has been requested, 32 bytes of spaces (20 hex) will be returned.
End code (response)
Refer to 5-1-3 End Codes for information on end codes.
Comments The MESSAGE READ, MESSAGE CLEAR (refer to 5-3-22 MESSAGE
CLEAR: 09 20), and FAL/FALS READ (refer to 5-3-23 FAL/FALS READ: 09
20) commands share the same command code (0920). They are distin-
guished by bits 14 and 15 of the two-byte parameter following the command
code. To read MSG(195) messages, bits 14 and 15 must be OFF (0).

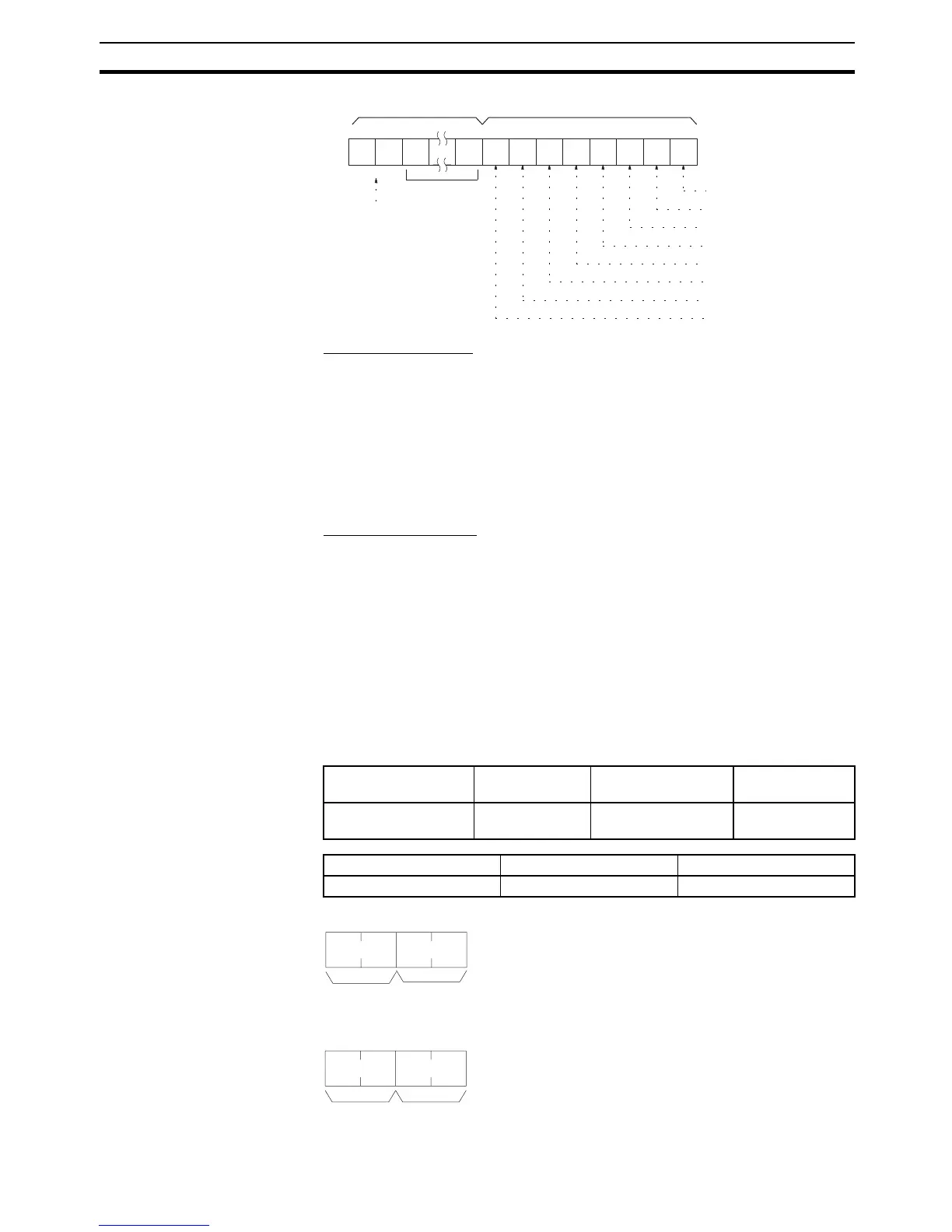

5-3-22 MESSAGE CLEAR: 09 20
Clears messages generated with MSG(195).
Execution Conditions
Command Format
Response Format
15 13
876
5432
14
1
0
0 0 0 0
Second byteFirst byte
Set to 0
Message No. 0
Message No. 1
Message No. 2
Message No. 3
Message No. 4
Message No. 5
Message No. 6
Message No. 7
00: Message read
Access right at
other device
UM read
protection
DIP switch UM write
protection
Network write
protection
No (when clearing
messages)
OK OK OK
RUN mode MONITOR mode PROGRAM mode
OK OK OK
2009
Command
code
Message No.
Command
code
20
09
End code
