221
FINS Commands Section 5-3

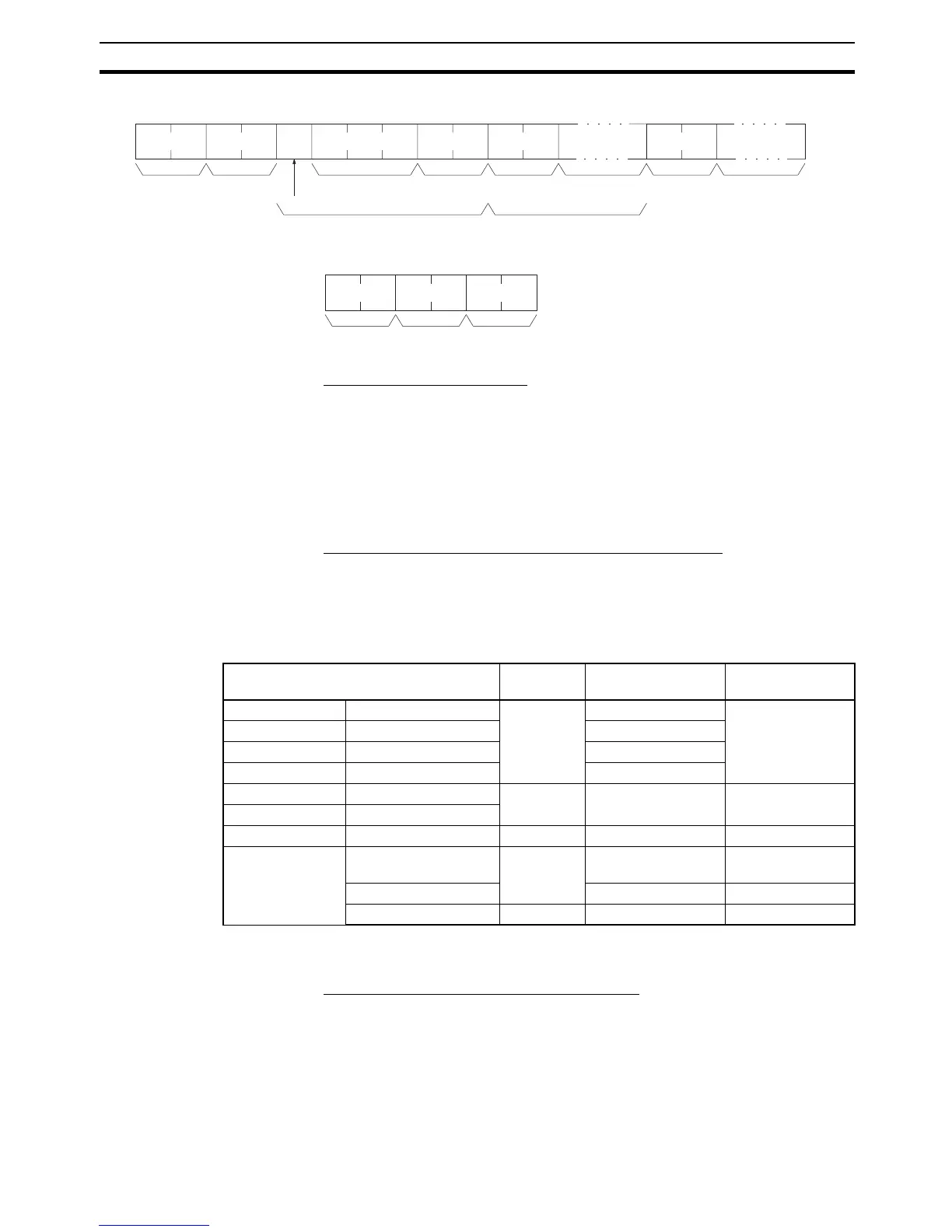

Command Format
Response Format
Parameters Parameter code (command)
Specify the transfer/compare method as follows:
0000 (hex)
Data transfer from the I/O memory area to the file memory.
0001 (hex)
Data transfer from the file memory to the I/O memory area.
0002 (hex)
Data compared.
I/O memory area code, Beginning address (command)
The memory area to be used for data transfer or comparison, and the first
address in the memory area to be transferred or compared.
The memory areas that can be written are given in the following table. Refer to
5-2-2 I/O Memory Address Designations for the specific addresses that can
be used.
Note On a CJ2 CPU unit only, 50 to 5F can be specified for the memory area code
of EM banks 0 to F.
Number of items (command and response)
In the command format, specify the number of items, in word units, to be
transferred or compared. In the response format, this parameter indicates the
number of items transferred or successfully compared. Refer to Element Data
Configurations on page 163 for the configuration of elements.
Command
code
22
0A
File nameParameter
code
Beginning address No. of
items
Disk No.
Memory area specification
Memory area code
File specification
12 bytes
Directory
length
Absolute directory
path
22 0A
No. of items
Command
code
End code
Area Data type Mode memory area
code (hex)
Bytes per element
CIO Area CIO Word B0 2
Work Area WR B1
Holding Bit Area HR B2
Auxiliary Bit Area AR B3
Timer Area TIM PV 89 2
Counter Area CNT
DM Area DM Word 82 2
EM Area EM bank 0 to bank F Word A0 to AF or 50 to5F
(see note.)
2
EM bank 10 to bank 18 60 to 68 2
EM current bank Word 98 2
