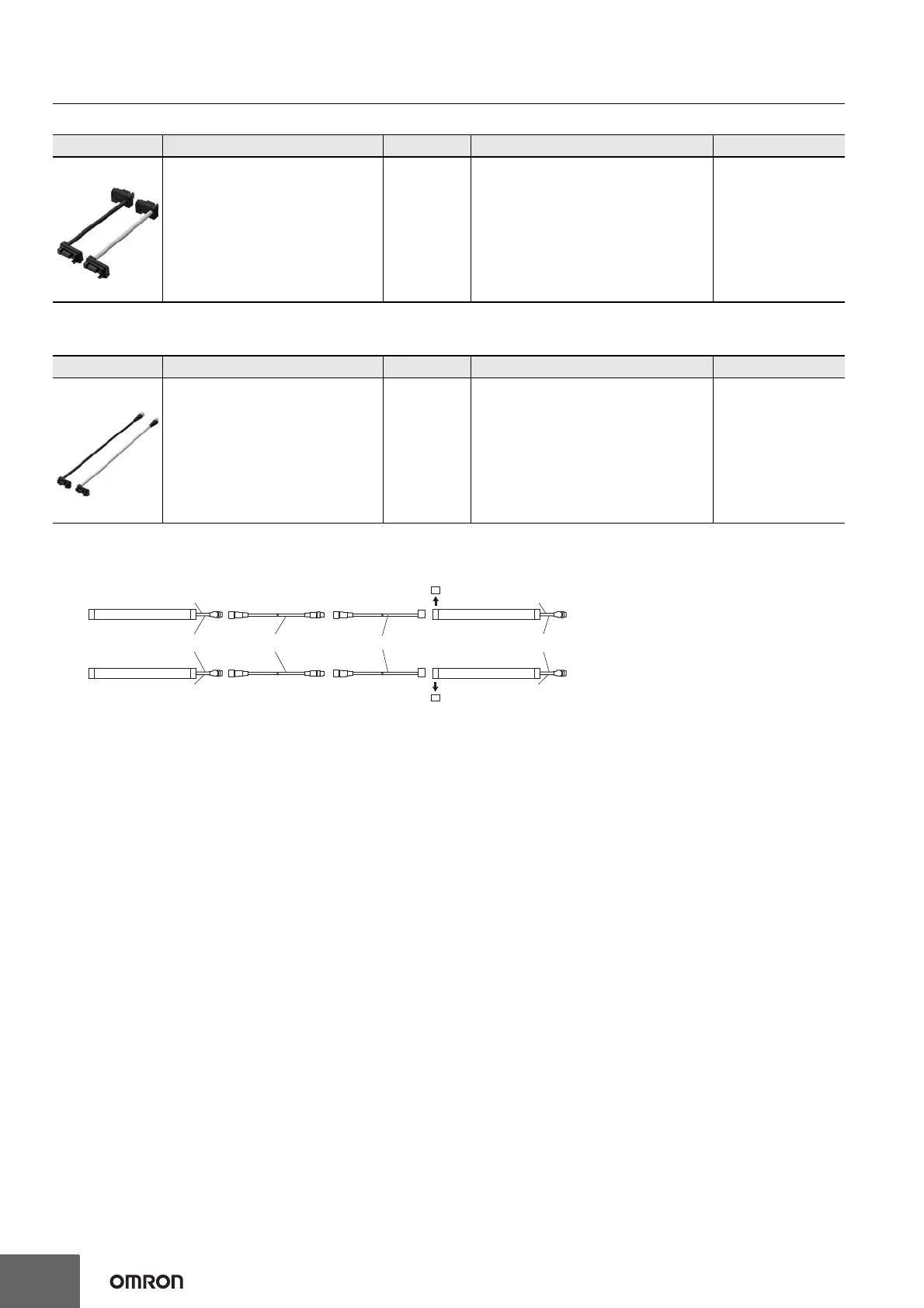

Omron F3SG-SR Series User Manual

F3SG-SR/PG
40
Side-by-side Cascading Cable (Two cables per set, for emitter and receiver)
Note: To extend the cable length between the series-connected sensors to more than 12 cm, add the F39-JGR3W Cascading Cable for Extended.
Cascading Cable for Extended (Two cables per set, for emitter and receiver)
Note: To extend the cable length between the series-connected sensors to more than 60 cm, connect the F39-JG@B Extended Plug-Socket Cable
(up to 10 m: F39-JG10B) to the F39-JGR3W Cascading Cable for Extended.
Extension cable between sensors: 10 m max. (not including Cascading Cable for Extended (F39-JGR3W) and Root Cable (F39-JGR3K).)
Appearance Type Cable length Specifications Model
For emitter
To sensors: dedicated connector 1,
To cascading sensors: dedicated
connector 2
Color: Gray
For receiver
To sensors: dedicated connector 1,
To cascading sensors: dedicated
connector 2
Color: Black
12 cm
Used to series-connect sensors with the
minimum cable length of 12 cm.
IP67 and IP67G (JIS C 0920 Annex 1)
rated when mated.
F39-JGR12L
Appearance Type Cable length Specifications Model
For emitter
To sensors: dedicated connector,
To cascading sensors: M12
connector type (5 pin)
Color: Gray
For receiver
To sensors: dedicated connector,
To cascading sensors: M12
connector type (8 pin)
Color: Black
0.3 m
Used together with the F39-JGR3K Root-
Plug Cable for Extended to extend the
cable length between the series-connected
sensors to more than 12 cm.
IP67 and IP67G (JIS C 0920 Annex 1)
rated when mated.
F39-JGR3W
Remove the cap
Remove the cap
F39-JGR3K-L (Gray)
F39-JG@B-L (Gray) F39-JGR3W-L (Gray)
F39-JGR3W-D (Black)
F39-JGR3K-D (Black)
Emitter
Receiver
F39-JG@B-D (Black)
Root-Plug Cable for Extended Extended Plug-Socket Cable Cascading Cable for Extended
F39-JGR3K-L (Gray)
F39-JGR3K-D (Black)
Emitter
Receiver
Root-Plug Cable for Extended
