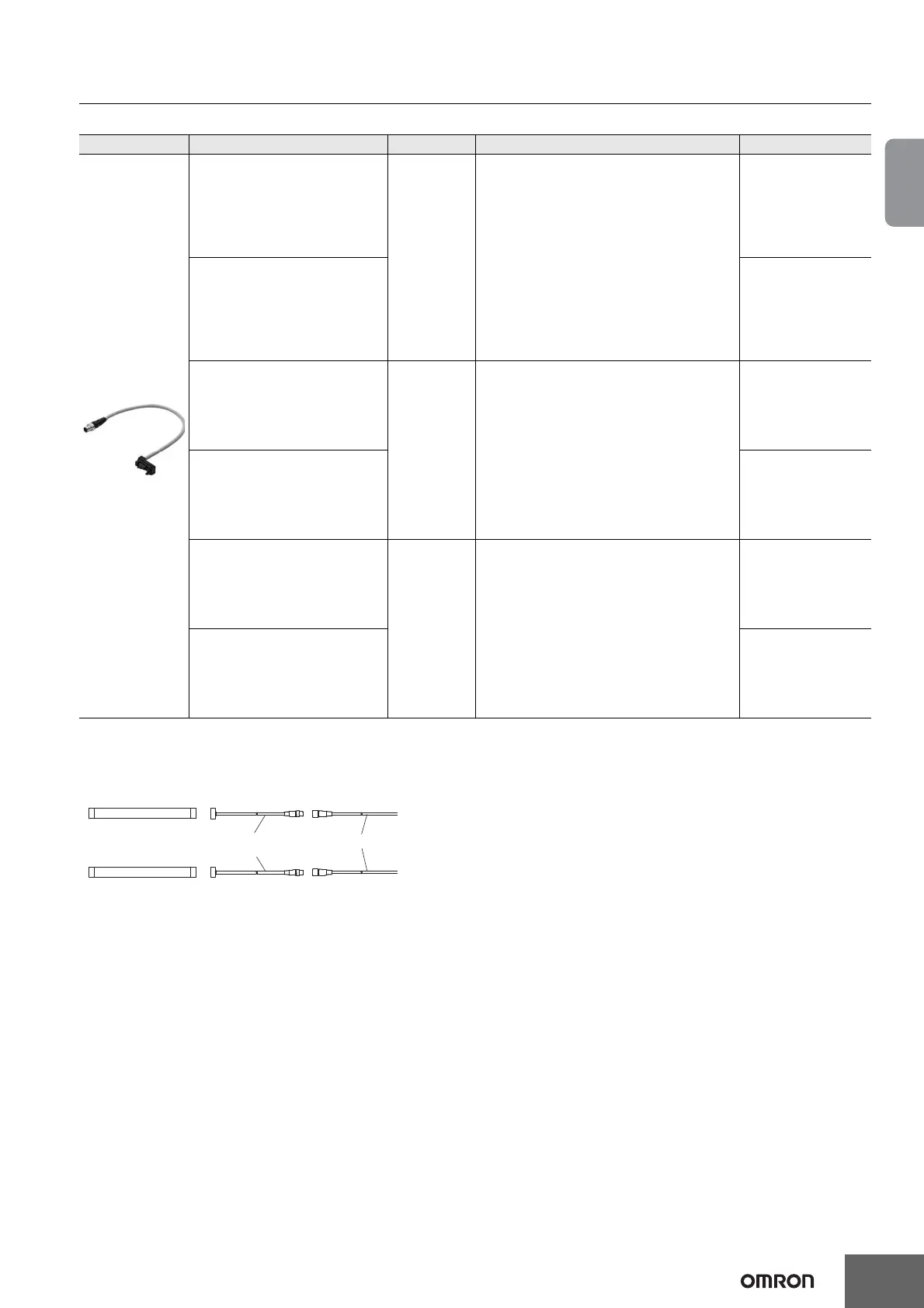

Omron F3SG-SR Series User Manual

F3SG-SR/PG
41
Ordering Information
Conversion Cable
Note: Cables are not included with the safety light curtain/safety multi-light beam.
When connecting to the cables of the existing light curtain, order the conversion cables.
Conversion cables are only for PNP connection. To use for NPN, connect the 24 VDC line and the 0 VDC line in reverse. For details, refer
to User's Manual (Man. No. Z405).
Appearance Type Cable length Specifications Model
F3SJ-B/A Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for F3SJ-B/-A, F3SR or
F3SN: M12
connector type (8 pin)
Color: Gray
0.3 m
Used to convert the wiring for F3SJ-B/-A,
F3SR-B or F3SN Safety Light Curtain to that
for the F3SG-SR.
F39-JGR3K-SJ-L
F3SJ-B/A Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for F3SJ-B/-A, F3SR or
F3SN: M12
connector type (8 pin)
Color: Black
F39-JGR3K-SJ-D
F3SG-RE Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for F3SG-RE: M12
connector type (4 pin)
Color: Gray
0.3 m
Used to convert the wiring for F3SG-RE Safety
Light Curtain to that for the F3SG-SR.
F39-JGR3K-RE-L
F3SG-RE Conversion Cable
For receiver
To sensor: dedicated connector 1,
To wires for F3SG-RE: M12
connector type (4 pin)
Color: Black
F39-JGR3K-RE-D
MS48 Conversion Cable
For emitter
To sensor: dedicated connector 1,
To wires for MS4800: M12
connector type (5 pin)
Color: Gray
0.3 m
Used to convert the wiring for MS4800 Safety
Light Curtain to that for the F3SG-SR.
F39-JGR3K-MS-L
MS48 Conversion Cable
For receiver
To sensor: dedicated connector 1,
To wires for MS4800: M12
connector type (8 pin)
Color: Black
F39-JGR3K-MS-D
F3SG-SR Emitter
F39-JGR3K-@@-L(Gray)
F3SG-SR Receiver
F39-JGR3K-@@-D(Black)
Conversion cable
F39-JGR3K-@@
Cables of the existing light curtain
