Omron F3SG-SR Series User Manual

F3SG-SR/PG

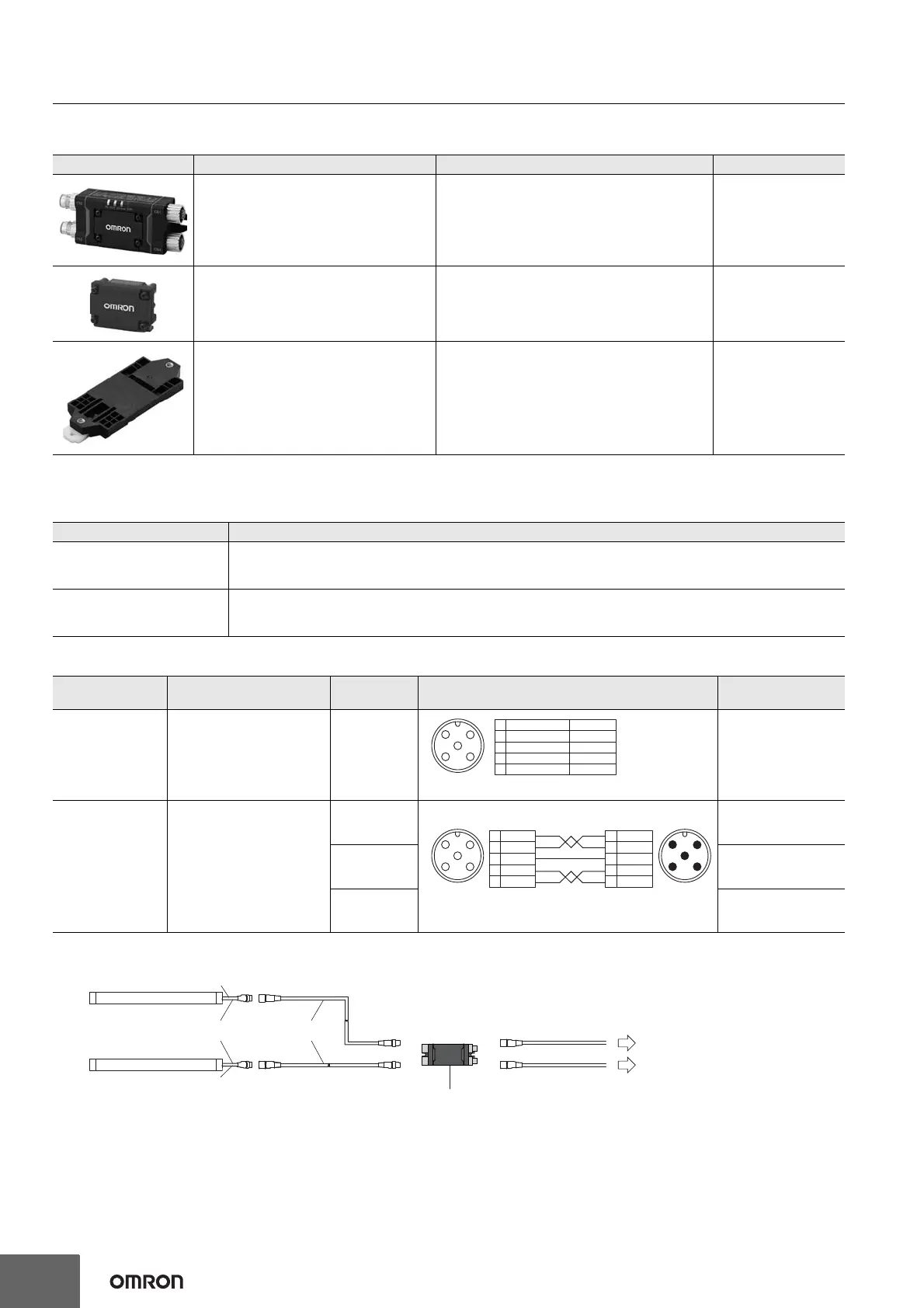

42
Intelligent Tap and Configuration Tool SD Manager 3
Intelligent Tap *
Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).
* Use the F39-SGBT Bluetooth
®
Communication Unit or a commercially available USB Type-C
TM
cable to connect to a PC.
Configuration tool SD Manager 3
Intelligent Tap-to-IO-Link Master Cable
* When the accessory is used, protect it from cutting oil.
Note: Use the F39-JG@A-D Extended Socket-Straight Cable or F39-JG@B-D Extended Plug-Socket Cable for safety output (OSSD).
Appearance Type Specifications Model
Intelligent Tap
Used to configure the F3SG-SR/PG and connect
external devices via IO-Link. The F3SG-SR/PG
can be configured on a PC or with the DIP switch
on the Intelligent Tap.
IP67 and IP67G (JIS C 0920 Annex 1) rated when
mated.
F39-SGIT-IL3
Bluetooth
®
Communication Unit
Mounted to the Intelligent Tap to connect with the
SD Manager 3 via Bluetooth
®
.
IP67 and IP67G (JIS C 0920 Annex 1) rated when
mated.
F39-SGBT
Intelligent Tap Bracket For DIN in Panel
Bracket to mount the Intelligent Tap on a DIN
track.
F39-LITF1
Type Specifications
SD Manager 3
Configuration tool running on a PC.
Use with the Intelligent Tap. (The Bluetooth
®
communication unit is required to connect using Bluetooth
®
.)
For details, refer to your local Omron website.
SD Manager 3 Mobile APP
Monitoring tool running on a smartphone and tablet.
Use with the Intelligent Tap and Bluetooth
®
communication unit.
For details, refer to your local Omron website.
Omron IO-Link
master unit
Type Cable length Specifications Model
NX-ILM400
Single-ended cable
M12 connector (5-pin), 5 wires
Color: Gray
2 m XS5F-D521-DJ0-IL
GX-ILM08C
Double-ended cable
M12 connector (5-pin), 5 wires
Color: Gray
3 m F39-JG3B-L
10 m F39-JG10B-L
20 m F39-JG20B-L
5
3
21
4
1
2
3
4
5
L+
DO
L-
C/Q
Not used
Brown
White
Blue
Black
Yellow
Female
IP67
* rated when mated.
1
3
2
4
5
5
3
21
4
1
3
2
4
5
5
4
12
3
Female
IP67* rated when mated.
Male
Brown
Black
Blue
White
Yellow
Brown
Black
Blue
White
Yellow
F39-JGR3K-L (Gray)
F39-JG@B-L (Gray)
F39-JGR3K-D (Black)
Extended
Plug-Socket Cable
Root-Plug Cable for Extended
F39-JG@B-D (Black)
CN4
CN1
CN3
CN2
Intelligent Tap
F39-SGIT-IL3
XS5F-D521-DJ0-IL (Gray)/
F39-JG@B-L (Gray)
F39-JG@A-D (Black)/
F39-JG@B-D (Black)
IO-Link Master
OSSD
Emitter
Receiver
