F3SG-SR/PG
44

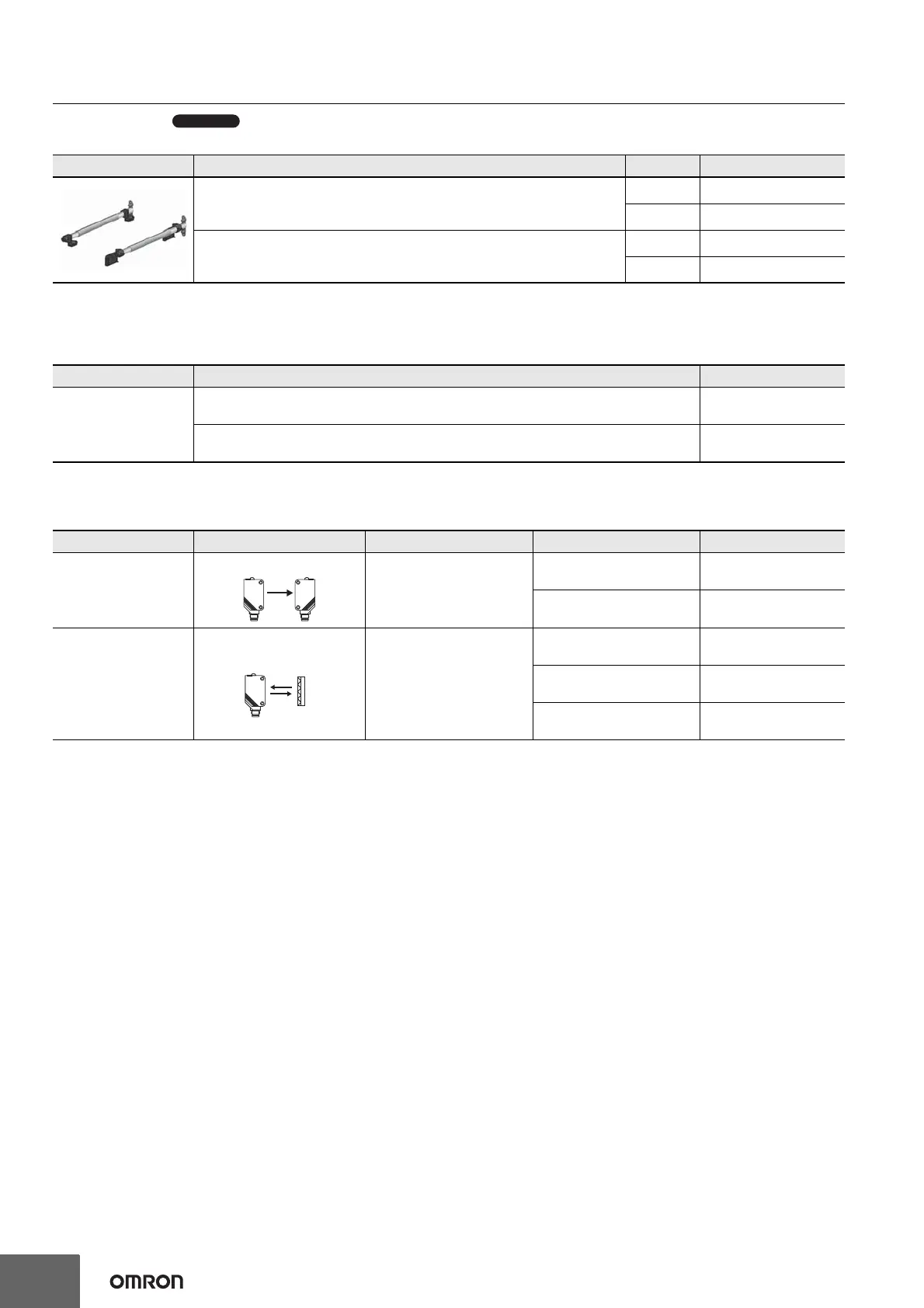

Muting System
Muting Sensor Arm Mounter (Two mounters per set, for emitter and receiver)
Note: 1. The muting sensor and reflector are sold separately.
2. When mounting the muting sensor arm mounter to the safety light curtain, order the F39-LMAF@ Muting Sensor Arm Mounter Bracket
for SLC. When the muting sensor arm mounter is mounted to the floor mount column, no brackets are required.
Muting Sensor Arm Mounter Bracket for SLC (Two brackets per set, for emitter and receiver) *
* Order when mounting the muting sensor arm mounter to the safety light curtain. When the muting sensor arm mounter is mounted to the floor
mount column, no brackets are required.
Muting Sensor
Note: The muting sensor is not included with the muting sensor arm mounter. Order the E3Z Muting Sensor.
*1. The reflector is not included with the muting sensor. Order the E39-R1S Reflector when using the E3Z-R@6 Retroreflective Muting Sensor.
*2. The minimum required distance between the E3Z Muting Sensor and reflector is 100 mm.
For details, refer to your local Omron website.
Appearance Application Length Model
The through-beam muting sensor can be mounted easily.
150 mm F39-FMA150T
400 mm F39-FMA400T
The retroreflective muting sensor can be mounted easily.
150 mm F39-FMA150R
400 mm F39-FMA400R
Appearance Application Model
---
For F3SG-SR/PG (except for perimeter guarding deflect mirror) F39-LMAF1
For F3SG-PG perimeter guarding deflect mirror F39-LMAF2
Mounter Sensing method Sensing distance Output type Model
F39-FMA@@@T
Through-beam
10 m
NPN output E3Z-T66A
PNP output E3Z-T86A
F39-FMA@@@R
Retro-reflective *1
4 m *2
NPN output E3Z-R66
PNP output E3Z-R86
Reflectors E39-R1S
