Omron M1 Series User Manual

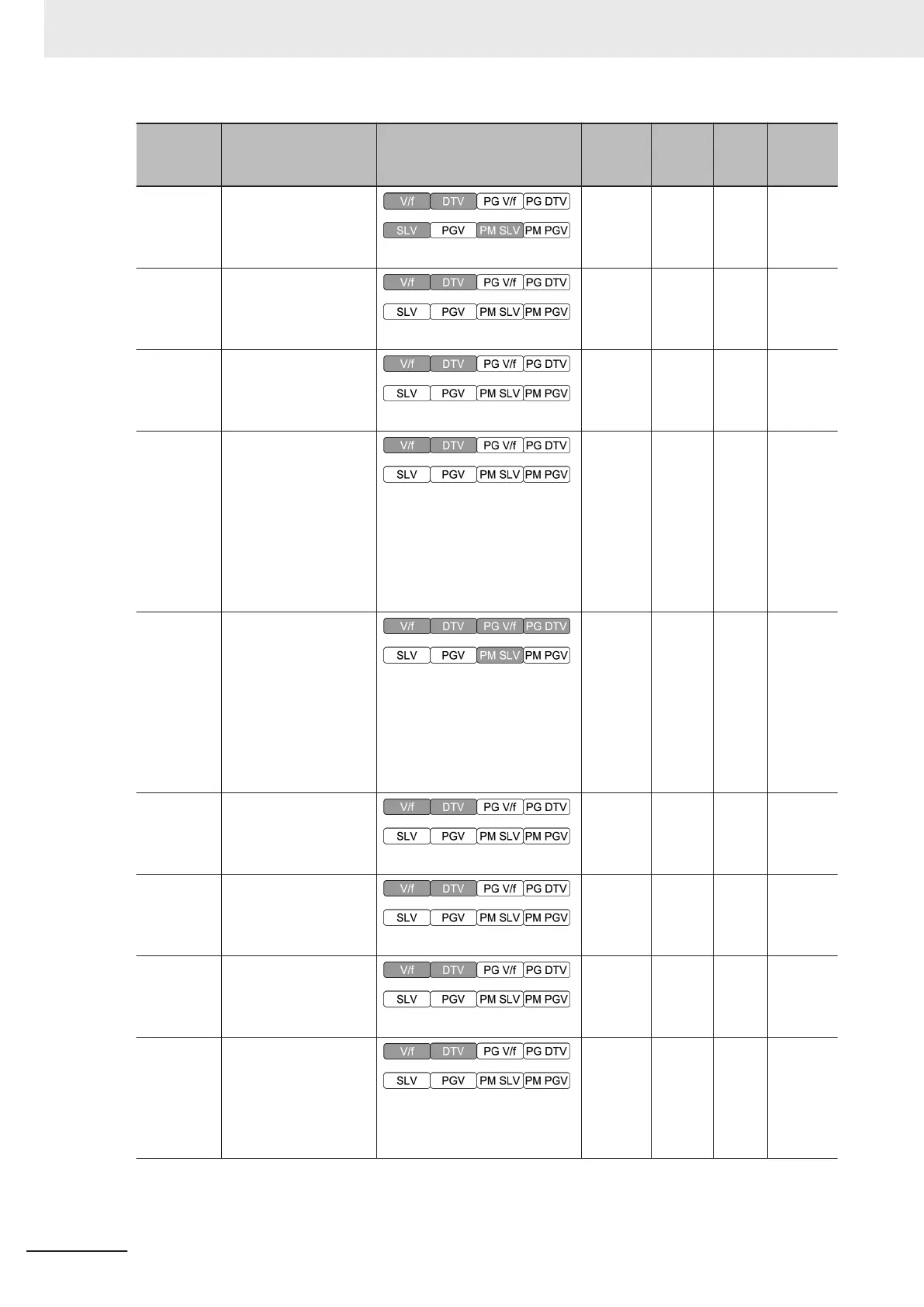

Parameter
No.
Function name Monitor or Data Range
Default
data
Setting
during
RUN
Unit Page
d18
Input Terminal [PIA]
[PIB] Pulse T
rain Filter
T
ime Constant
0.000 to 5.000 s
0.005
Availa-
ble
s
page
7-145
d21
Speed Agreement /
Speed Deviation Error
Hysteresis Width
0.0 to 50.0 %
10
Availa-
ble
%
page
6-12
d22
Speed Agreement /
Speed Deviation Error
Detection Timer
0.00 to 10.00 s
0.5
Availa-
ble
s
page
6-12
d23
Speed Deviation Error
Processing Selection
0: Continue to run 1
1: Stop with alarm 1
2: Stop with alarm 2
3: Continue to run 2
4: Stop with alarm 3
5: Stop with alarm 4
2 - -
page
6-12
d24 Zero Speed Control
0: Disable at startup, enable at
stop
1: Enable at startup, enable at
stop
2: Disable at startup, disable
at stop
0 - -
page
7-115
d25
Speed Control Speed
Loop Switching Time
at Parameter Change
0.000 to 1.000 s
0
Availa-
ble
s
page
6-26
d32
Speed Limit 1 in For-
ward
0 to 110 %
100
Availa-
ble
%
page
6-12
d33
Speed Limit 2 in Re-
verse
0 to 110 %
100
Availa-
ble
%
page
6-12
d35
Over Speed Detection
Level
0 to 120%
999: Depend on d032 and
d033
32767
Availa-
ble
%
page
6-12
4 Parameter List
4-150
M1 Series Standard Type User's Manual (I669)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
