3-77
3-4 Cable and Connector Specifications
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
3
Specifications

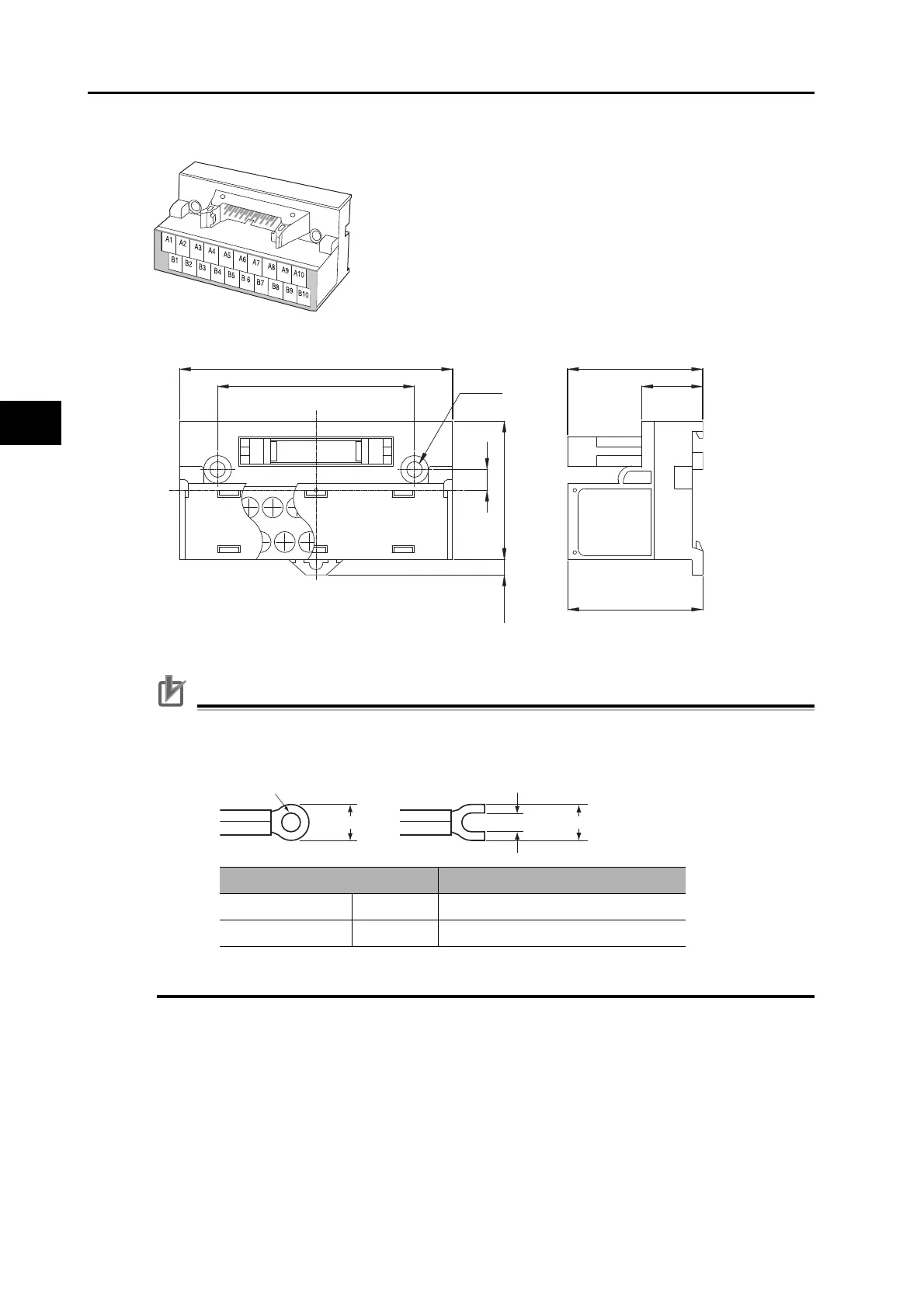

XW2D-20G6
Precautions for Correct Use
When using crimp terminals, use crimp terminals with the following dimensions.
When connecting wires and crimp terminals to a terminal block, tighten them with a tightening
torque of 0.7 N•m.
79 (39.1)
39
57 17.6
6
40(4.5)
2-
φ
4.5
Dimensions
φ3.2mm
3.2 mm
Round terminal Fork terminal
5.8 mm max.
5.8 mm max.
Applicable crimp terminals Applicable wires
Round terminals 1.253AWG2216 (0.30 to 1.25 mm
2
)
Fork terminals 1.25Y3AWG2216 (0.30 to 1.25mm
2
)
