Omron R88D-KN ML2 Sries User Manual

3-72

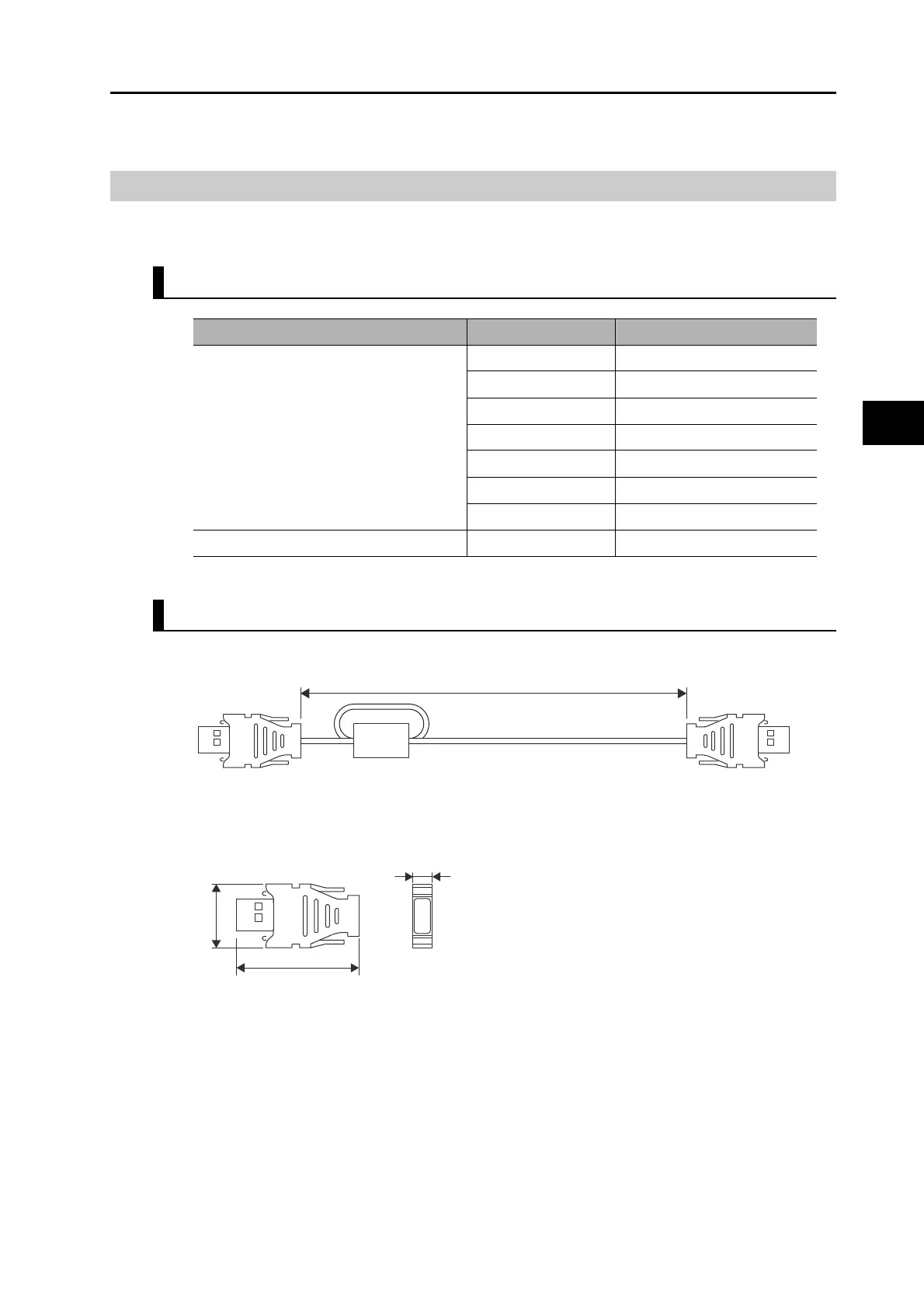

3-4 Cable and Connector Specifications
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
3
Specifications
MECHATROLINK-II Communications Cable Specifications
The MECHATROLINK-II Communications Cable is equipped with a connector on each end
and a core.
Cable Types
Connection Configuration and Dimensions
MECHATROLINK-II Communications Cable
MECHATROLINK-II Terminating Resistor
Name Model Length (L)
MECHATROLINK-II Communications
Cable
FNY-W6003-A5 0.5 m
FNY-W6003-01 1 m
FNY-W6003-03 3 m
FNY-W6003-05 5 m
FNY-W6003-10 10 m
FNY-W6003-20 20 m
FNY-W6003-30 30 m
MECHATROLINK-II Terminating Resistor FNY-W6022 
L
Core
(8)
21
46

Omron R88D-KN ML2 Sries Specifications

General

Brand	Omron
Model	R88D-KN ML2 Sries
Category	Servo Drives
Language	English
