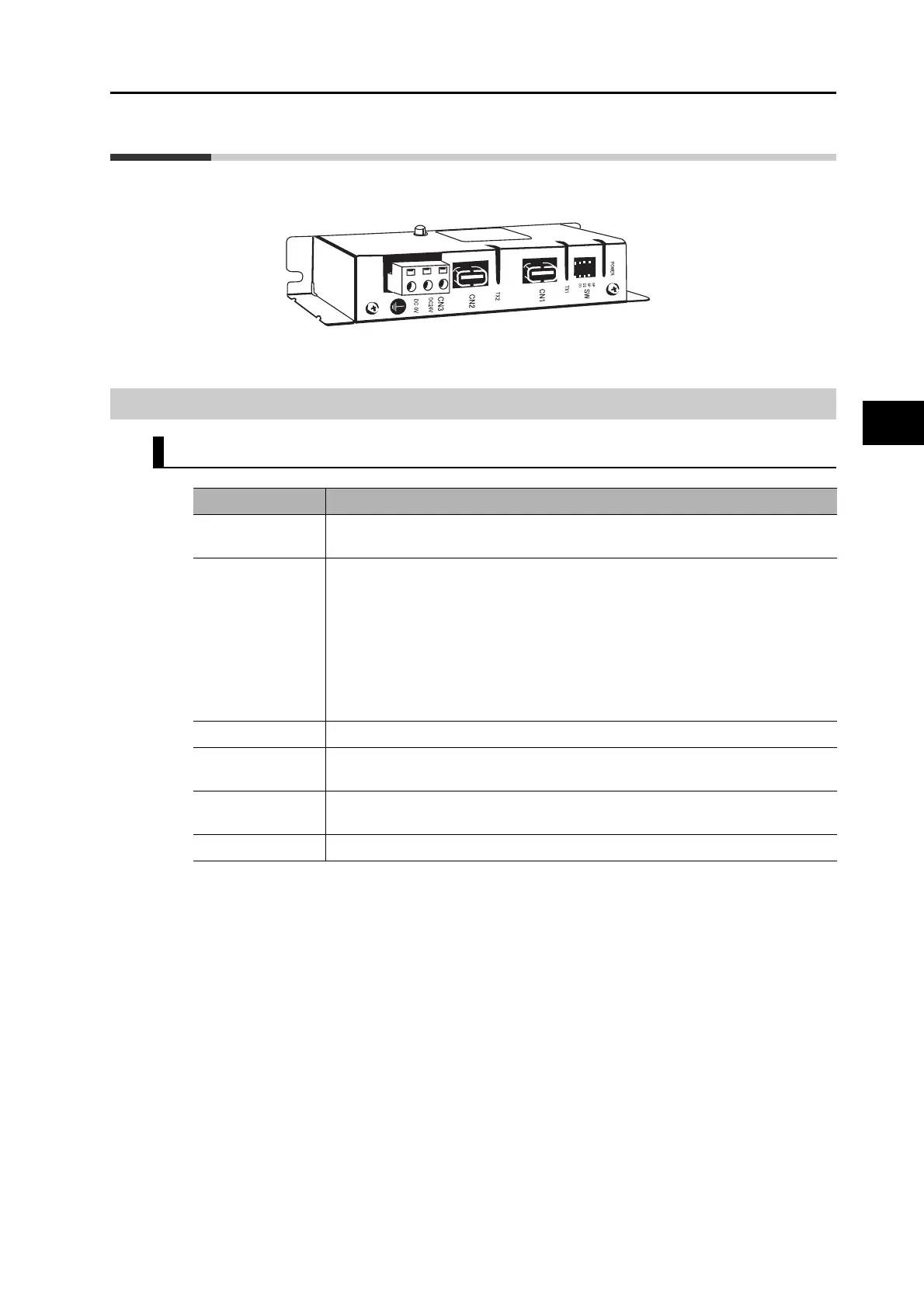

3-7 MECHATROLINK-II Repeater Unit Specifications
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
3
Specifications
3-7 MECHATROLINK-II Repeater Unit Specifications
The MECHATROLINK-II Repeater Units are necessary to extend the MECHATROLINK-II
connection distance.
Specifications
FNY-REP2000
Item Description
Cable length
Between a Controller and a Repeater Unit: 50 m max
Between a Repeater Unit and a Terminating Resistor: 50 m max
Maximum number
of connectable
node
Between a Controller and a Repeater Unit: 14 nodes in every 50 m, or 15 nodes
in every 30 m,
Between a Repeater Unit and a Terminating Resistor: 15 nodes in every 50 m, or
16 nodes in every 30 m
The total number of Servo Drives in upstream and downstream of a Repeater Unit
must not exceed the maximum number of nodes connectable to a
MECHATROLINK-II Communication Unit.
When the CS1W- or CJ1W-NCF71 Controller is used, the maximum number of
connectable nodes is 16.
LED Indicator 3 indicators (Power, CN1: transmitting, and CN2: communicating)
Power supply
current
180 mA max
External power
supply
24 VDC (4.8 V), 100 mA
Weight 0.5 kg
