3-1 Servo Drive Specifications
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
3
Specifications

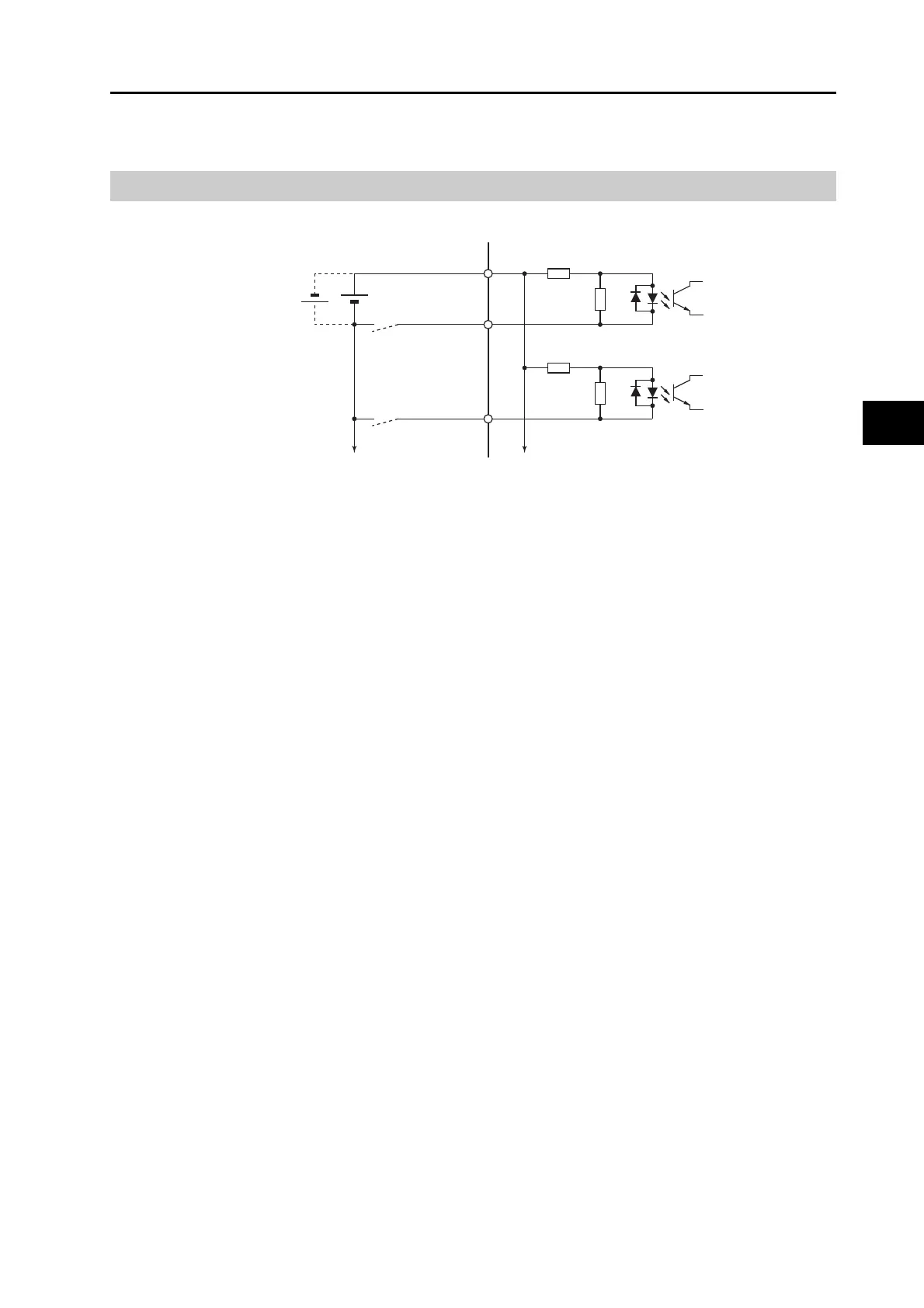

Control Input Circuits
4.7 kΩ
1.0 kΩ
5
7
IN1
IN2
6+24VIN
To other input circuit
External power supply
12 VDC ± 5% to
24 VDC ± 5%
Input current
specification
10 mA max. (per point)
Signal level
ON level: 10 V or more
OFF level: 3 V or less
To another input circuit GND common
Photocoupler input
4.7 kΩ
1.0 kΩ
Photocoupler input
