2-29
2-4 External and Mounting Dimensions
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
2
Standard Models and External Dimensions

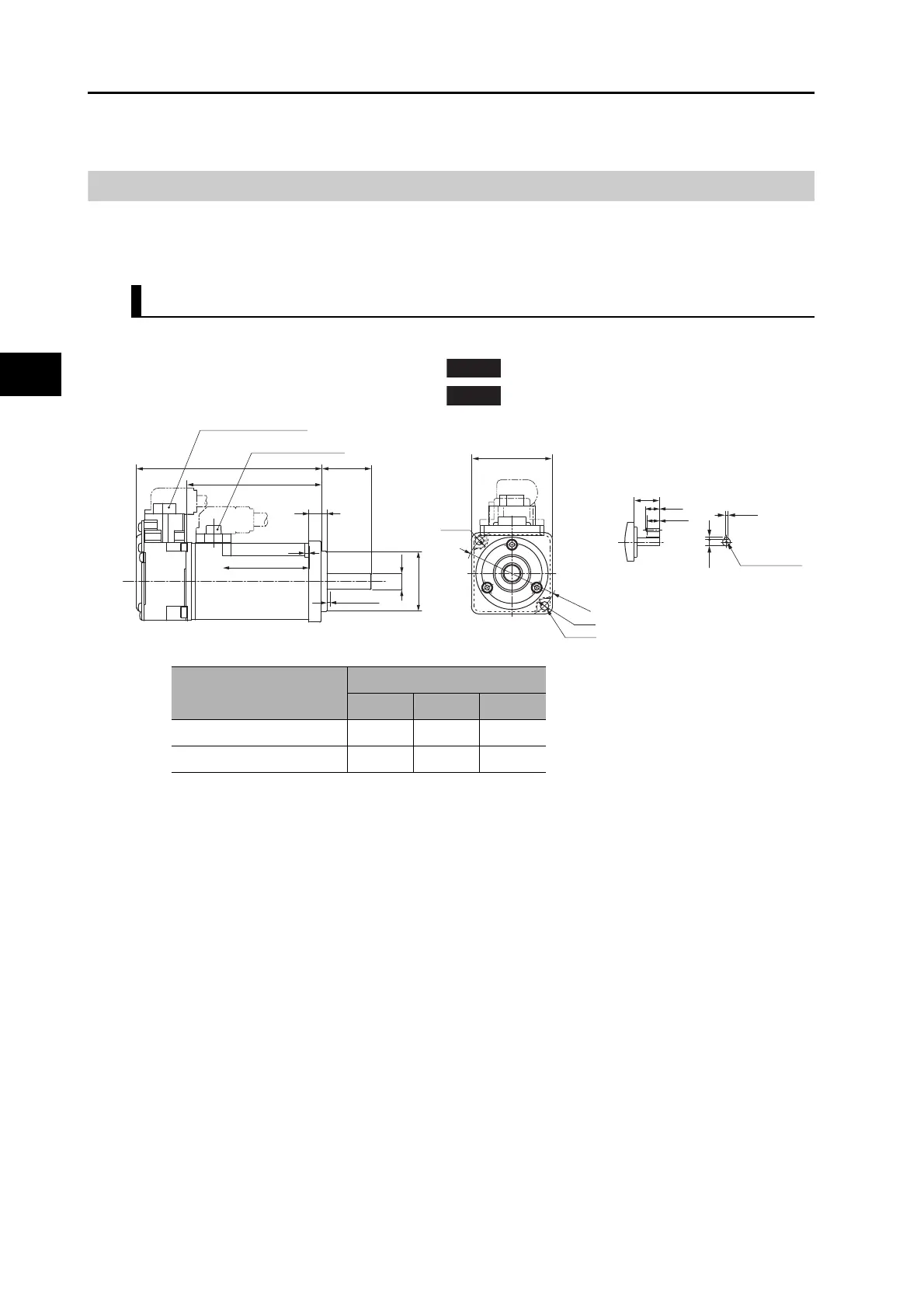

Servomotor Dimensions
In this description, the Servomotors are grouped by rated rotation speed. The description
starts with a Servomotor of the smallest capacity, which is followed by the next smallest, and
so on.
3,000-r/min Motors (100 V and 200 V)
50 W/100 W (without Brake)
R88M-K05030H (-S2)/-K10030L (-S2)
R88M-K05030T (-S2)/-K10030S (-S2)
Note. The standard models have a straight shaft. Models with a key and tap are indicated with S2 at the
end of the model number.
Models with an oil seal are indicated with O at the end of the model number. The motor dimensions
do not change.
INC
ABS
M3 (depth 6)
φ8h6
φ
30h7
25
14
12.5
3h9
3
6.2
25LL
LM
63
1.5 min.
Boss insertion position
(only for the ones with oil seal)
2
LN
R3.7
R4.2
2−φ4.3
φ46±0.2
40×40
(Shaft end specifications with key and tap)
Encoder connector
Motor connector
Model
Dimensions (mm)
LL LM LN
R88M-K05030x 72 48 23
R88M-K10030x 92 68 43
To Next Page
