3-61
3-4 Cable and Connector Specifications
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
3
Specifications

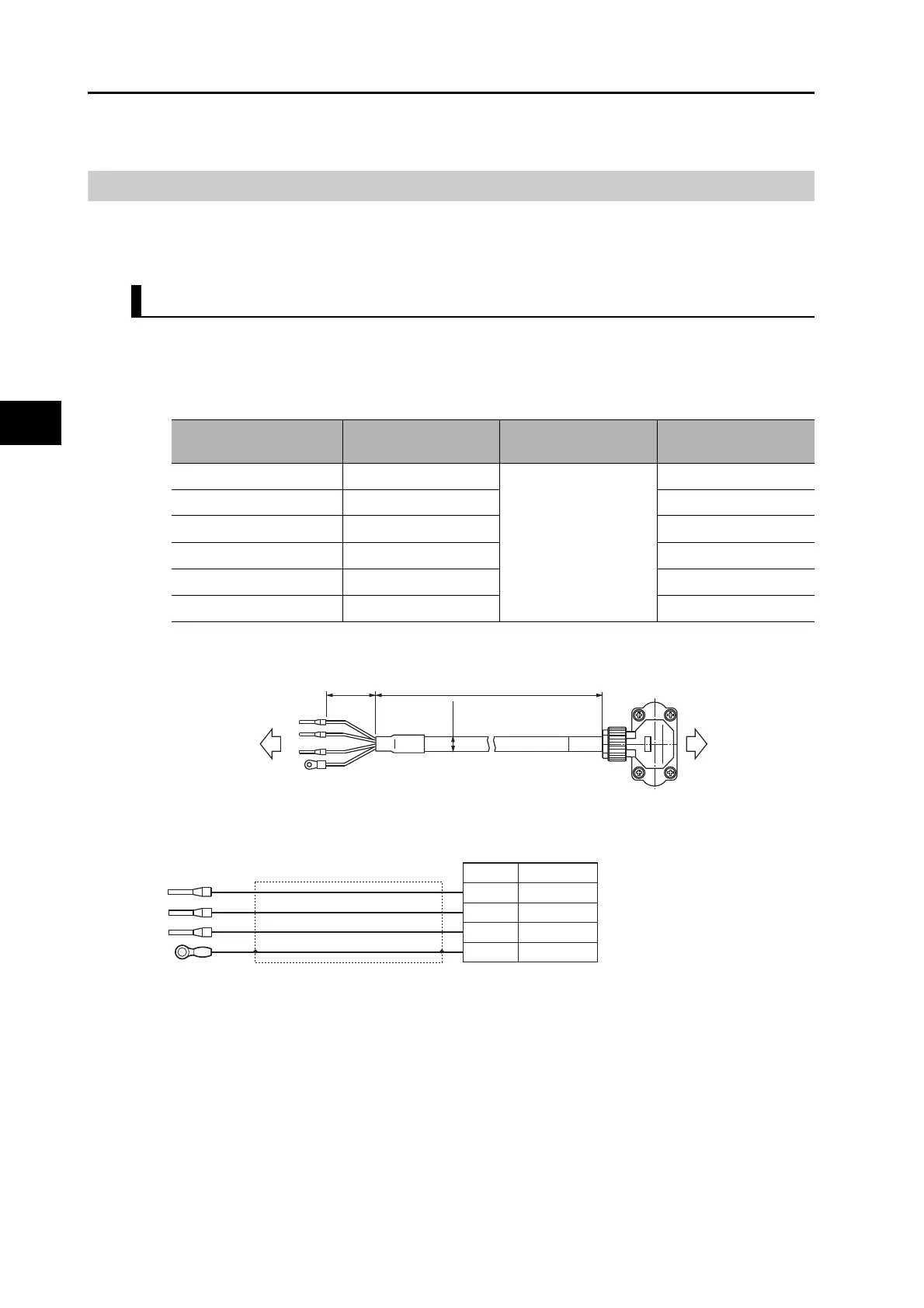

Motor Power Cable Specifications
These cables connect the drive and motor. Select the cable matching the motor.
All cables and connectors listed are flexible, shielded and have IP67 protection.
Power Cables without Brakes (Flexible Cables)
R88A-CAKAxSR-E
Cable types
[100 V and 200 V] (For 3,000-r/min motors of 50 to 750 W)
Connection configuration and external dimensions
Wiring
Model Length (L)
Outer diameter of
sheath
Weight
R88A-CAKA001-5SR-E 1.5 m
6.7 dia.
Approx. 0.1 kg
R88A-CAKA003SR-E 3 m Approx. 0.2 kg
R88A-CAKA005SR-E 5 m Approx. 0.3 kg
R88A-CAKA010SR-E 10 m Approx. 0.5 kg
R88A-CAKA015SR-E 15 m Approx. 0.7 kg
R88A-CAKA020SR-E 20 m Approx. 1.0 kg
(50)
L
(φ6.7)
Drive side Motor side
R88D-Kx R88M-Kx
1
2
3
4
Phase U
Phase V
Phase W
FG
Symbol
Drive side
Red
White
Blue
Green/Yellow
Cable
0.5 mm
2
× 4C
or AWG20 × 4C
M4 crimp terminal
Motor side
[Motor side connector]
Angle plug model
JN8FT04SJ1 (Japan Aviation Electronics)
Connector pin model
ST-TMH-S-C1B-3500-A534G (Japan Aviation Electronics)
Number
