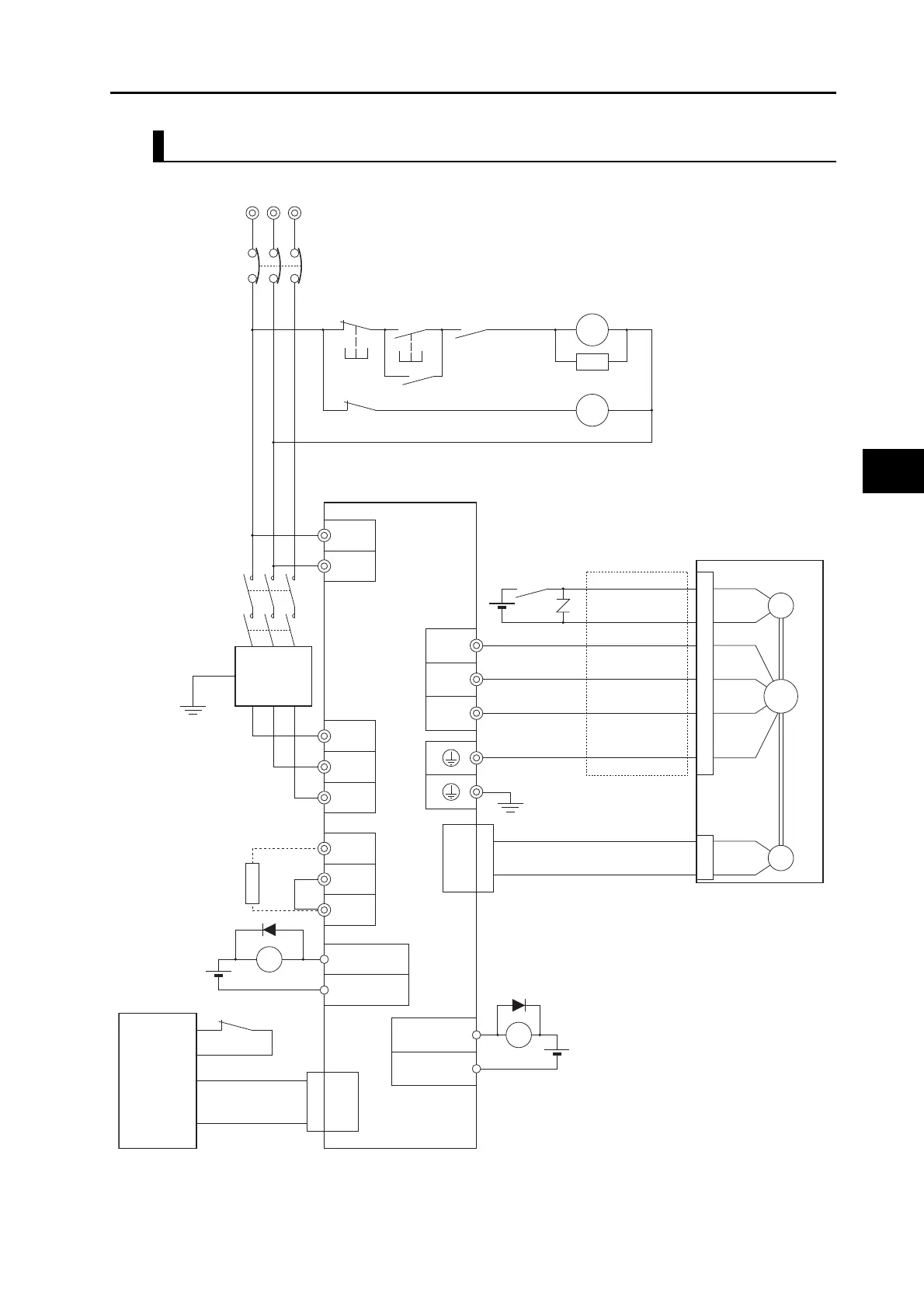

4-2 Wiring
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
4
System Design
R88D-KN01H-ML2/-KN02H-ML2/-KN04H-ML2/-KN08H-ML2/-KN10H-ML2/-KN15H-ML2 (3-phase Input)
RT
NFB
S
Noise filter (*1)
123
456
E
NF
Ground to 100 Ω
or less
3-phase 100 to 120 VAC, 50/60 Hz: R88D-
KNxxL-ML2
3-phase 200 to 240 VAC, 50/60 Hz: R88D-
KNxxH-ML2
L1C
L2C
L1
L2
L3
OMNUC G5-Series
AC Servo Drive
ALMCOM
/ALM3
4
User-side
control
device
CN1
X
24 VDC
1
2
OUTM1
(BKIR)
OUTM1
COM
XB
24 VDC
Control cables
OMNUC G5-Series
AC Servomotor
W
V
U
B
E
M
CN2
Encoder cables
Power cables
24 VDC
(*3)
(*2)
CN1
CN1
*1. A recommended product is listed in 4-3,
Wiring Confirming to EMC Directives.
*2. Recommended relay: MY relay by
OMRON (24-V type) For example, MY2
relay by OMRON can be used with all
G5-series motors with brakes because its
rated induction load is 2 A (24 VDC).
*3. There is no polarity on the brakes.
*4. The Regeneration Resistor built-in type
(
KN08H-ML2 to KN15H-ML2) shorts B2
and B3. When the amount of regeneration
is large, remove the connection between
B2 and B3 and connect the Regeneration
Resistor between B1 and B2.
B1
B3
B2
(*4)
Regeneration
Resistor
CNB
CNB
CNA
CNA
Ground to 100 Ω
or less
XB
2MC
X
1MC
1MC
PL
OFF
X
ON
X
1MC
Main circuit contactor (*1)
Surge suppressor (*1)
Servo alarm display
Main circuit power supply
