4-22

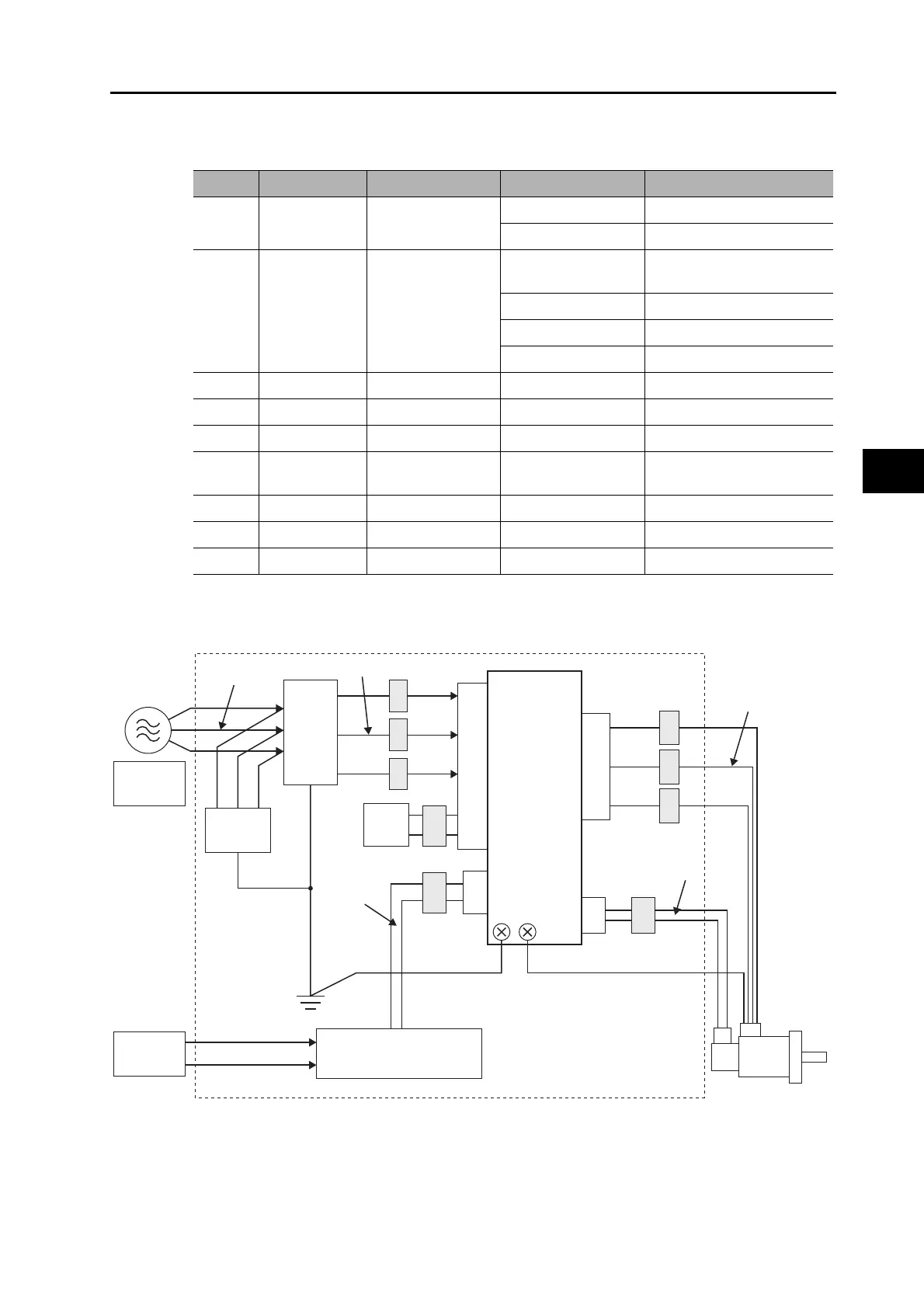

4-3 Wiring Conforming to EMC Directives
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
4
System Design
Unit Details
*1. A specified combination of Servo Drive and Servomotor must be used.
R88D-KN06F-ML2/-KN10F-ML2/-KN15F-ML2/-KN20F-ML2/-KN30F-ML2/-KN50F-ML2
Symbol Name Manufacturer Model Comment
SG Surge absorber
Okaya Electric
Industries Co., Ltd.
R•A•V-781BWZ-4 Single-phase 100/200 VAC
R•A•V-781BXZ-4 3-phase 200 VAC
NF Noise filter
Okaya Electric
Industries Co., Ltd.
SUP-EK5-ER-6 Single-phase 100/200 VAC
(5 A)
3SUP-HU10-ER-6 3-phase 200 VAC (10 A)
3SUP-HU30-ER-6 3-phase 200 VAC (30 A)
3SUP-HL50-ER-6B 3-phase 200 VAC (50 A)
SD Servo Drive OMRON  *1
SM Servomotor OMRON

*1
FC1 Clamp core TDK ZCAT3035-1330 
FC2
Clamp core Konno Industry RJ8035 For R88D-KN20H-ML2/
-KN30H-ML2/-KN50H-ML2
FC2 Clamp core TDK ZCAT3035-1330 For other models
FC3 Clamp core TDK ZCAT3035-1330 
TB Controller

Switch box
L1
L2
L3
L1C
L2C
Single-phase:
100 VAC
24 VDC
3-phase:
400 VAC
SG
NF
FC2
FC3
SD
FC1
FC1
TB
Controller
CNA
CN1
CNB
CN2
U
V
W
SM
(3)
(4)
(1)
(2)
(6)
(5)
(7)
(8)
FC1
