4-53
4-4 Regenerative Energy Absorption
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
4
System Design

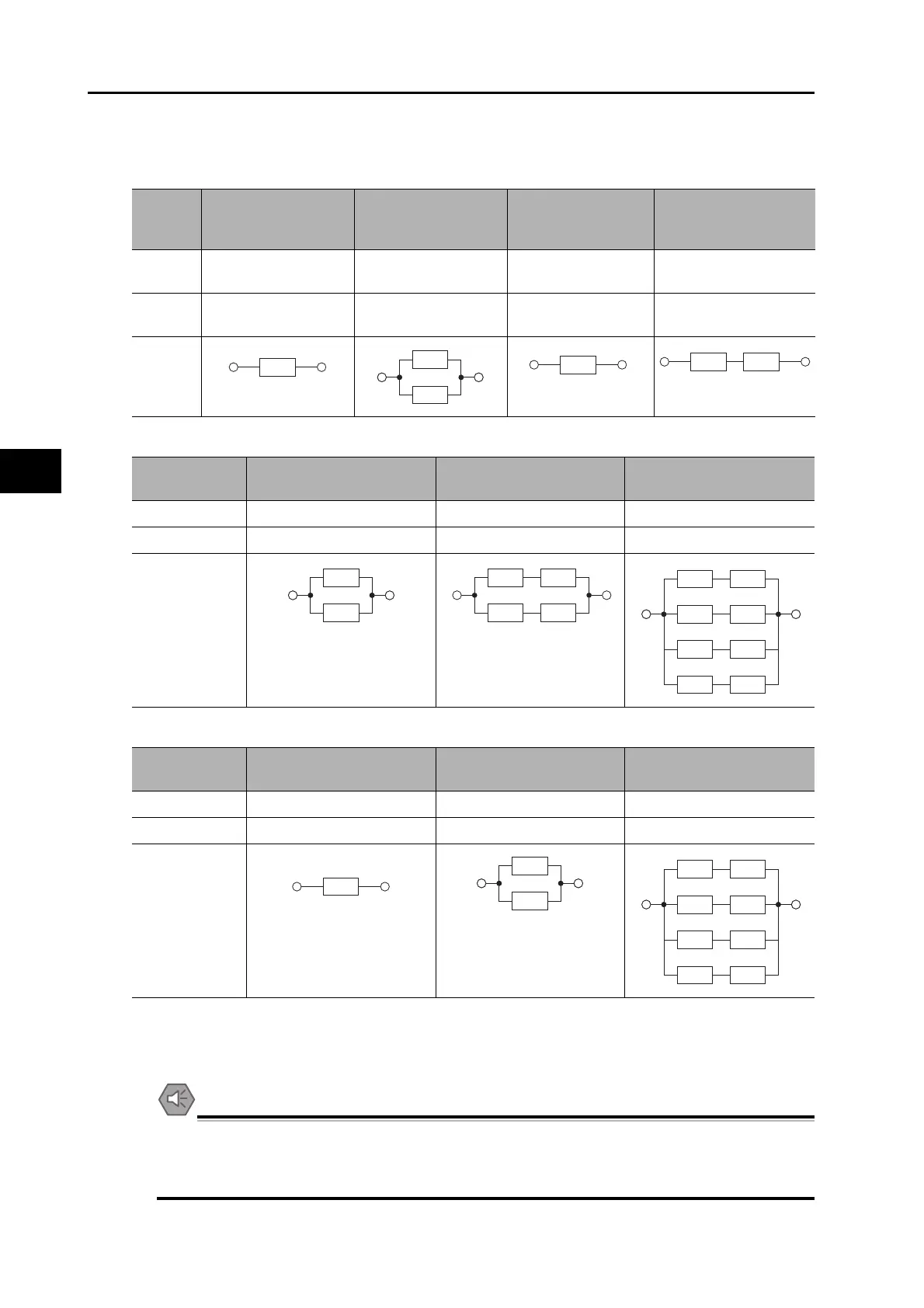

Combining External Regeneration Resistors
*1. Select a combination that has an absorption capacity greater than the average regeneration power (Pr).
*2. Do not use a combination with resistance values lower than the allowable minimum regeneration
resistance of each drive. For information on the allowable minimum regeneration resistance, refer to
"Servo Drive Regeneration Absorption Capacity" (P.4-50).
Precautions for Safe Use
 Surface temperatures on regeneration resistance can reach 200C.
Do not place objects that tend to catch fire nearby. To prevent people from touching them, install a
cover that enables heat dissipation.
Regeneration
absorption
capacity
*
1
20 W 40 W 70 W 140 W
Model
R88A-RR08050S
R88A-RR080100S
R88A-RR08050S
R88A-RR080100S
R88A-RR22047S1 R88A-RR22047S1
Resistance
value
*
2
50 /100  25 /50  47  94 
Connection
method
R
R
R
R
R
R
R R
Regeneration
absorption capacity
*
1
140 W 280 W 560 W
Model R88A-RR22047S1 R88A-RR22047S1 R88A-RR22047S1
Resistance value
*
2
23.5  47  23.5 
Connection
method
R
R
R
R
R R
R R
R R
R R
R R
R R
R R
R R
R R
R R
Regeneration
absorption capacity
*
1
180 W 360 W 1440 W
Model R88A-RR50020S R88A-RR50020S R88A-RR50020S
Resistance value
*
2
20  10  10 
Connection
method
R
R
R
R
R
R R
R R
R R
R R
R R
R R
R R
R R
