10-3
10-1 Analog Monitor
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
10
Adjustment Functions

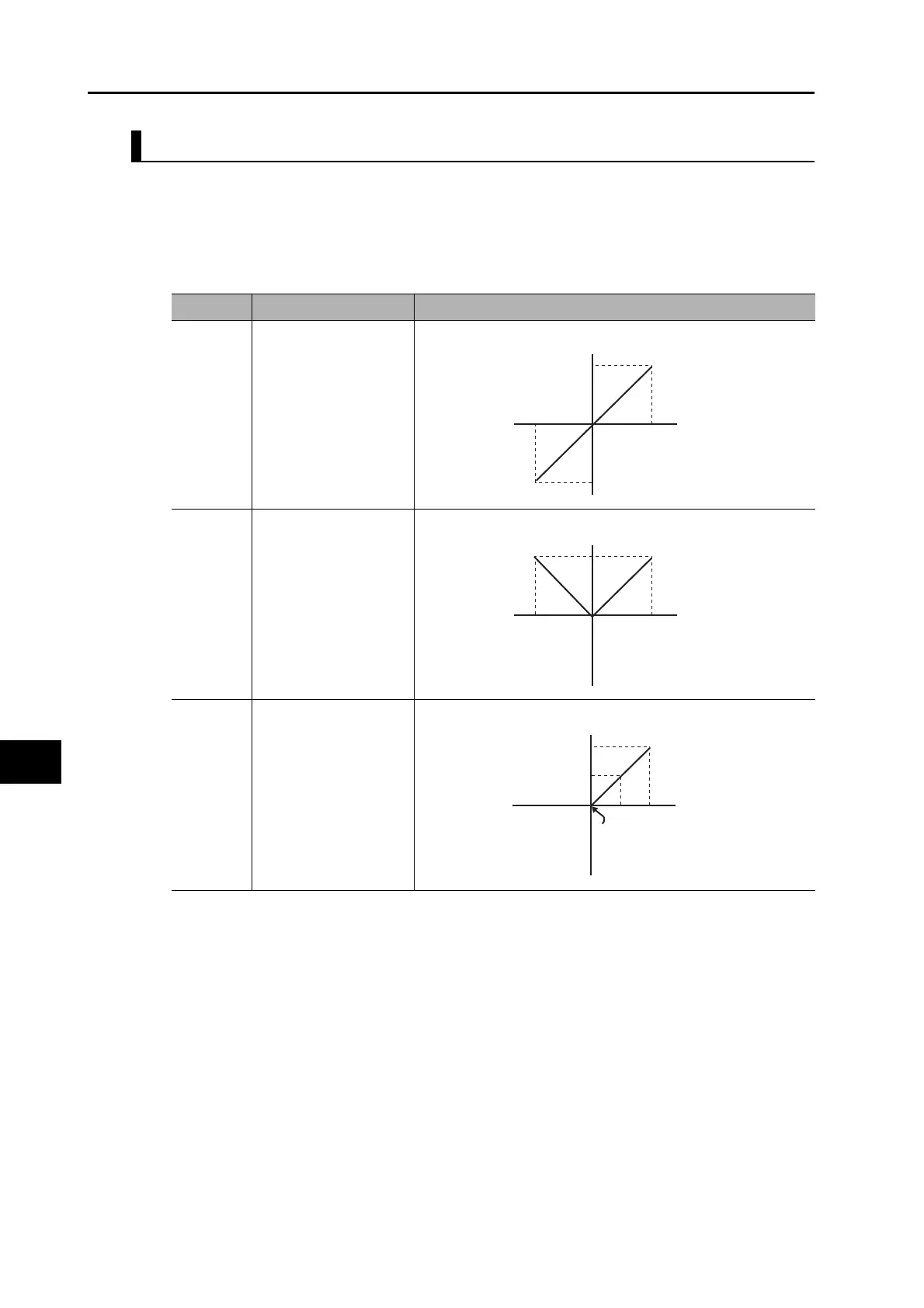

Analog Monitor Output Setting (Pn421)
Select the direction for analog monitor output voltage.
These are the output voltage range and the output direction when the Analog Monitor 1
Selection (Pn416) or the Analog Monitor 2 Selection (Pn418) is set to 0 (i.e., motor speed), and
the Analog Monitor 1 Scale Setting (Pn417) or the Analog Monitor 2 Scale Setting (Pn419) is
set to 0 (i.e., 1V  500 r/min).
Set value Output range Data output
0 10 to 10 V
1 0 to 10 V
2
0 to 10 V
(5 V as the center)
10 V
−
10 V
0 V
−
5000 5000 [r/min]
Motor speed
Output voltage [V]
10 V
−
10 V
0 V
−
5000 5000 [r/min]
Motor speed
Output voltage [V]
10 V
5 V
−
10 V
0 V 0
−
2500
2500 [r/min]
Motor speed
Output voltage [V]
