10-23
10-5 Damping Control
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
10
Adjustment Functions
Operating Procedure
1. Adjust the position loop gain and speed loop gain.
Adjust Position Loop Gain 1 (Pn100), Speed Loop Gain 1 (Pn101), Speed Loop Integral Time
Constant 1 (Pn102) and Torque Command Filter Time Constant 1 (Pn104).
If no problem occurs in realtime autotuning, you can continue to use the settings.
2. Measure the damping frequency at the tip of the mechanical unit.
Measure the damping frequency using a laser displacement sensor, servo acceleration meter,
acceleration pick-up, etc.
Set the damping frequency in one of Damping Frequency 1 to Damping Frequency 4 (1:
Pn214, 2: Pn216, 3: Pn218, 4: Pn220) according to the operation.
Also set the SWITCHING mode using Damping Filter Selection (Pn213).

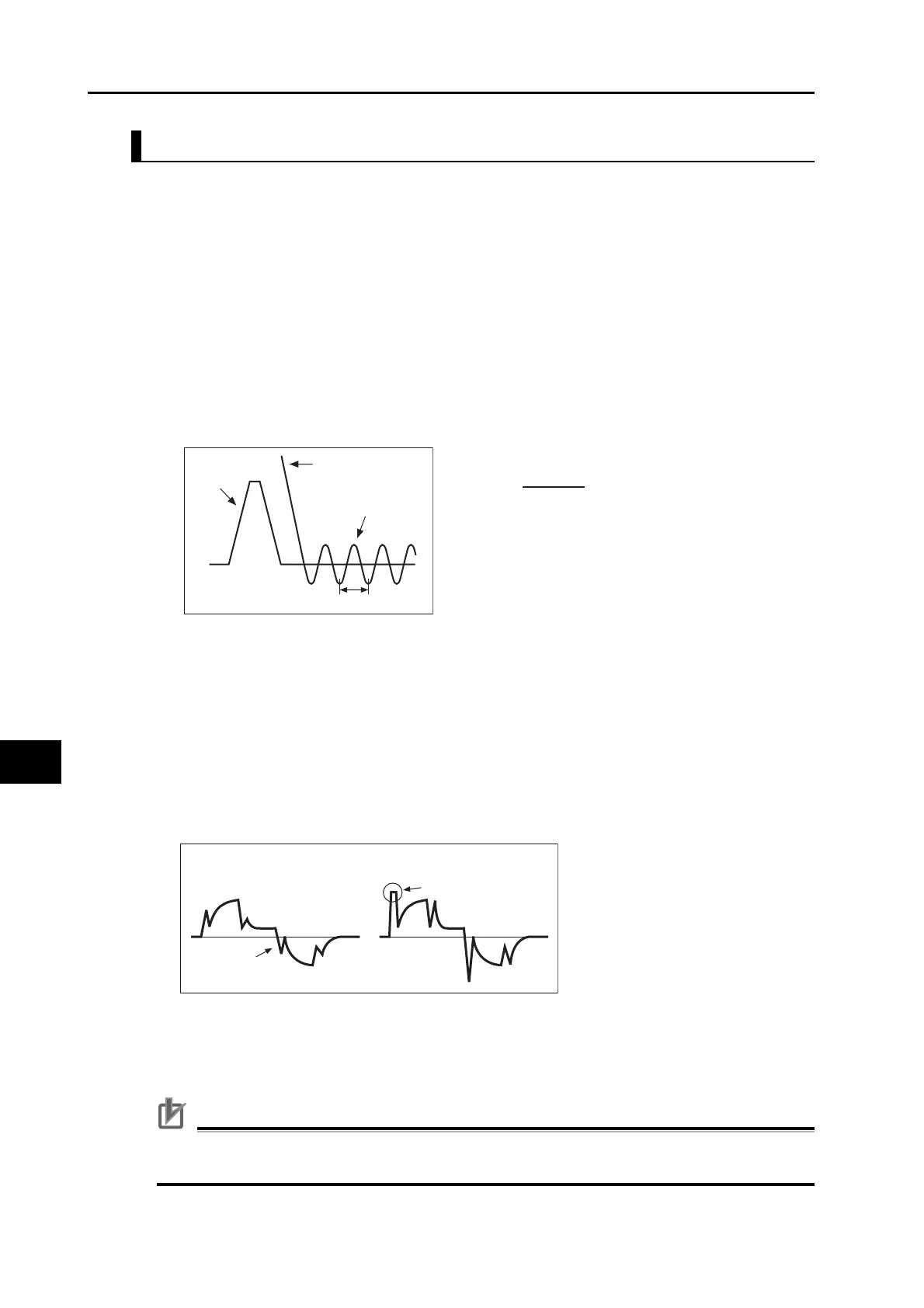

If the measurement device cannot be used, use CX-Drive tracing function, and read the
residual damping frequency (Hz) from the position error waveform as shown in the following
figure.
If vibration persists after setting the frequency, increase or decrease the resonance frequency
to find the frequency at which vibration decreases.
3. Set damping filter setting.
Set damping filter setting (1: Pn215, 2: Pn217, 3: Pn219, 4: Pn221).
First, set to 0.
The stabilization time can be reduced by setting a large value; however, torque ripple will
increase at the command change point as shown in the following figure. Set a range that will
not cause torque saturation under actual operation conditions. The effects of vibration
suppression will be lost if torque saturation occurs.
When the Damping Frequency 1 (Pn214) is set, reduce the setting if torque saturation occurs
or increase the setting to increase operation speed. Normally 0 is set.
If the damping filter 1 is enabled, use the following setting range.
Setting range: 100 Pn214 + Pn215 Pn214 2 or 2,000
Precautions for Correct Use
Note: If the damping filter 1 is disabled under Damping Filter Selection (Pn213), Damping Filter
1 Setting (Pn215) is also disabled.
The following gives the
damping
frequency in the figure.
Since the parameter unit is 0.1 Hz:
(Pn214, Pn216, Pn218, Pn220) = 10 f
Application example
If the
damping cycle is 100 ms or 20 ms, set 100 or
500 in the parameter so that the
damping frequency
becomes 10 Hz or 50 Hz.
Command
speed
Position error
Calculate the
damping frequency.
damping cycle T
1
T (s)
f (Hz)
=
Torque command
Torque saturation
Damping
filter setting is too large.
Damping filter
setting is appropriate.
