Omron SYSDRIVE 3G3JV

6-20
n62
Frequency Hold Function Selector Changes during
operation
No
Setting
range
0, 1 Unit of
setting
1 Default setting 0
Set Values
Value Description
0 The frequency on hold is not retained.
1 The frequency on hold for 5 s or more is retailed.

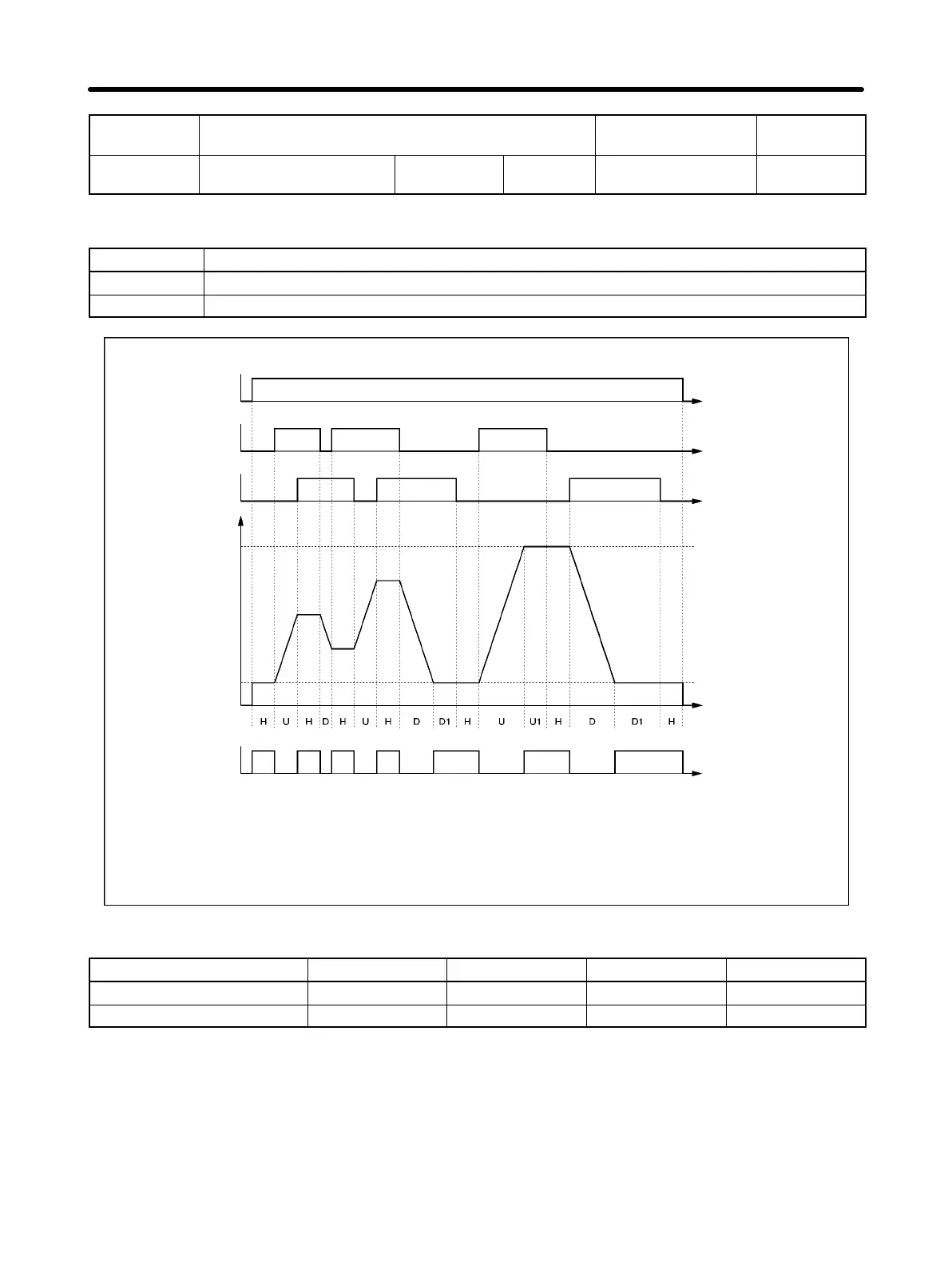

Operation of UP/DOWN Function
RUN command
(Forward rotation)
UP command
(S4)
DOWN command
(S5)
Output frequency
Upper limit
Lower limit
Status
Frequency
detection
Time
Note Status
U: UP (acceleration)
D: DOWN (deceleration)
H: Hold
U1: Frequency acceleration restricted by upper limit.
D1: Frequency deceleration restricted by lower limit.
Time
Time
Time
Time
• The following ON/OFF combinations of UP and DOWN commands are possible.
Command Acceleration Deceleration Hold Hold
S4 (UP command) ON OFF OFF ON
S5 (DOWN command) OFF ON OFF ON
• With the UP/DOWN function used, the output frequency has the following restrictions for upper and
lower limits.
Upper limit: The maximum frequency in n09 or the frequency reference upper limit in n30, which-
ever is smaller.
Lower limit: The minimum output frequency in n14 or frequency reference lower limit in n31,
whichever is smaller.
Advanced Operation Chapter 6
