D 3G3IV-PJVOP146 (without Adjuster)
Four, 4.4-dia. mounting holes
Four depressions for
M4 bolts (Depth: 3.5)
9-2-7 Digital Operator Case
H 3G3IV-PEZZ08386A
The Digital Operator Case (3G3IV-PEZZ08386A) is used to secure the 3G3IV-PJVOP140 Digital Oper-
ator. Without this Case, the Digital Operator’s connection cable cannot be wired. Always use the 3G3IV-
PJVOP140 and the Digital Operator Case together.

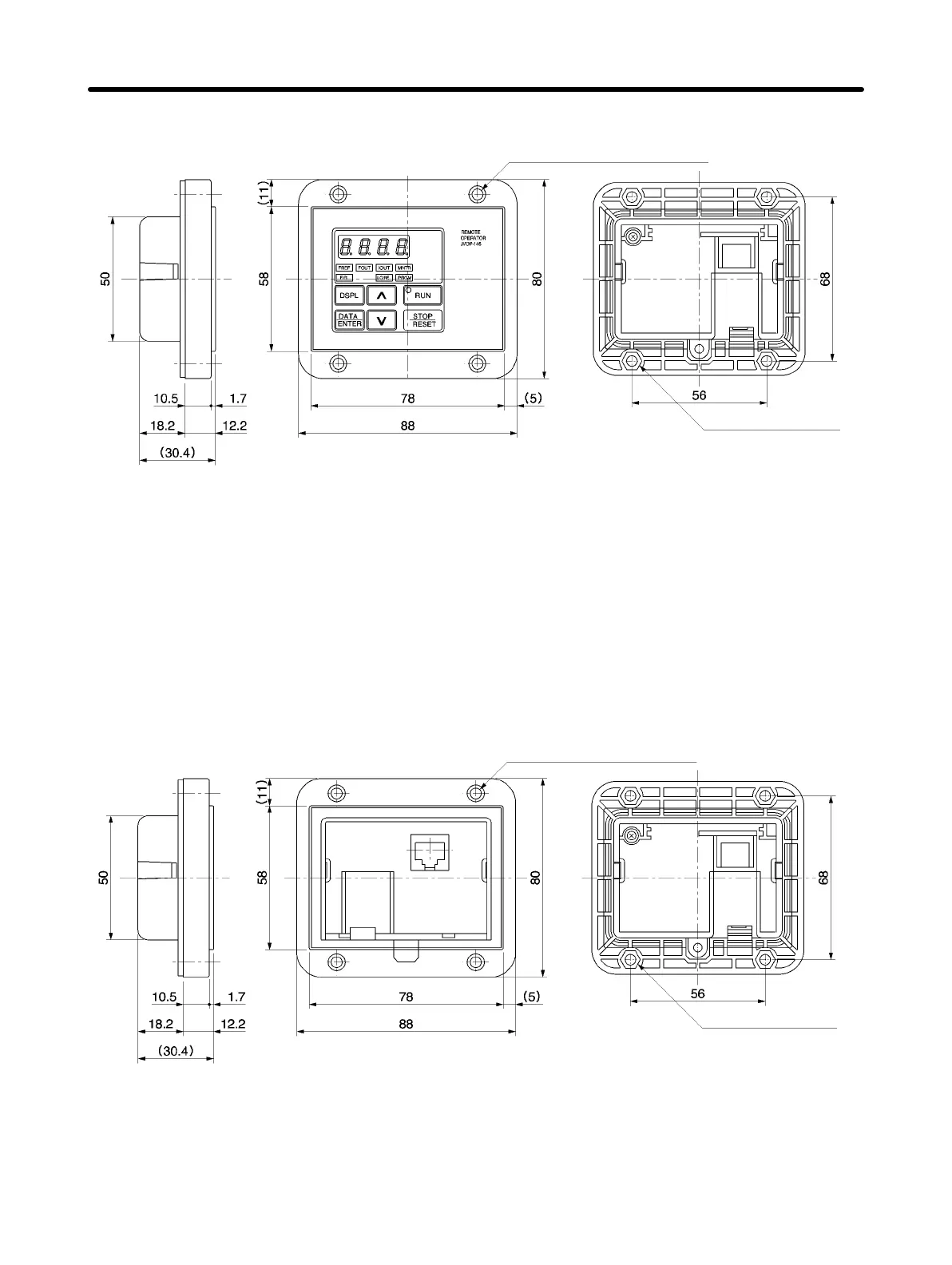

H Dimensions (mm)
Four, 4.4-dia. mounting holes
Four depressions for
M4 bolts (Depth: 3.5)
