Omron SYSDRIVE 3G3JV

9-10
9-2-4 Fan Unit
H 3G3IV-PFANj
The Fan Unit is a replacement for the presently installed cooling fan of the Inverter.
Replace the cooling fan if it has reached the end of its service life or a warning of cooling fan failure
(FAN) is indicated.
H Applicable Models
Inverter Fan Unit
3-phase 200 V AC
3G3JV-A2007 3G3IV-PFAN2007
p
3G3JV-A2015/-A2022 3G3IV-PFAN2015J
3G3JV-A2037 3G3IV-PFAN2037
Single-phase 200 V AC 3G3JV-AB015 3G3IV-PFAN2015J
3-phase 400 V AC
3G3JV-A4015/-A4022 3G3IV-PFAN2015J
p
3G3JV-A4037 3G3IV-PFAN2037
H Replacement Method
Refer to 8-3 Maintenance and Inspection.

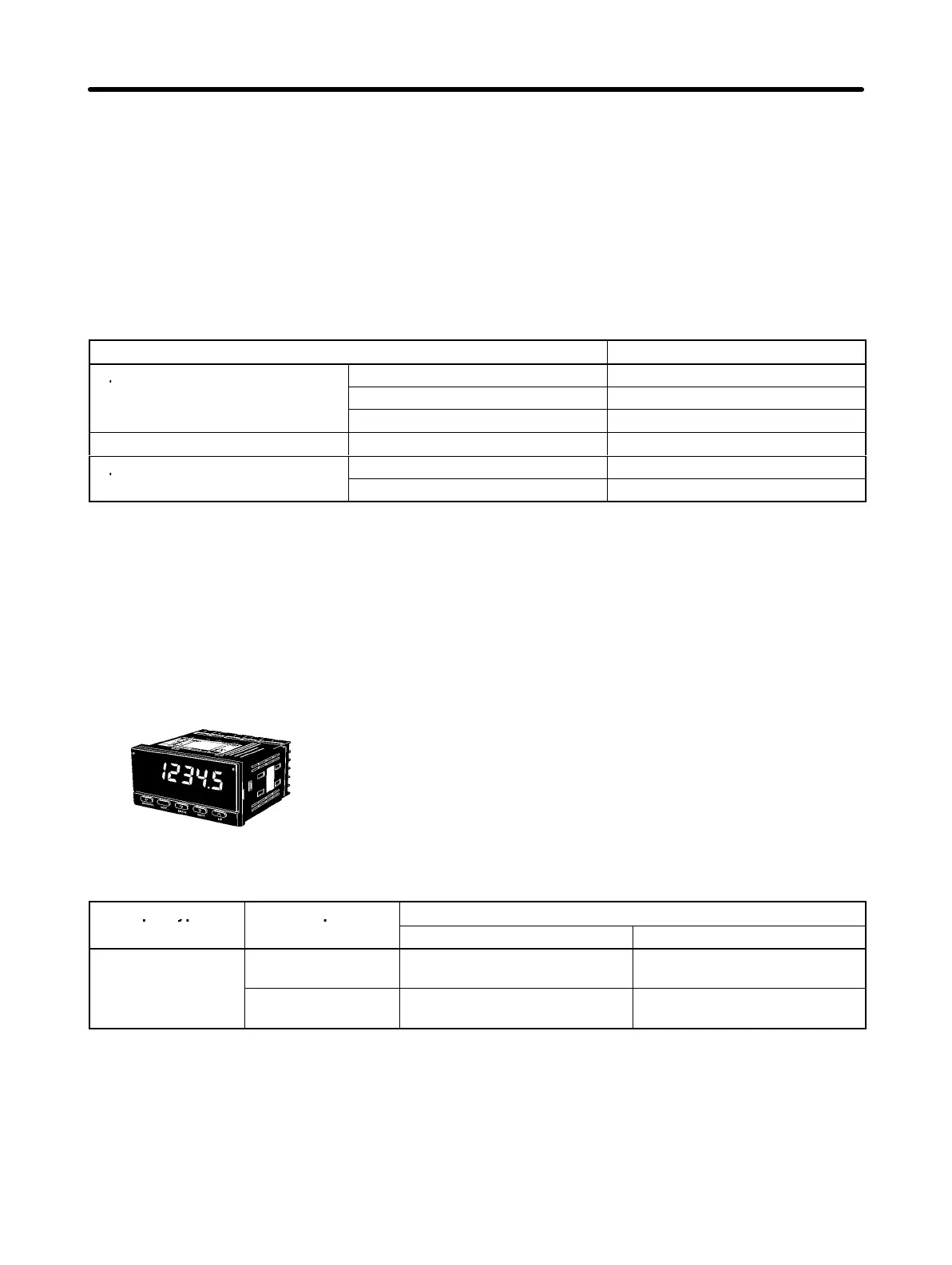

9-2-5 Scaling Meter
H K3MA-J
The Scaling Meter is connected to the analog monitor output of
the Inverter and is ideal for displaying the rotational speed of the
machine or the speed of the line in actual units.
H Models and Applications
Input type Output
Supply voltage
pyp
p
100 to 240 VAC (50/60 Hz) 24 VAC (50/60 Hz), 24 VDC
DC voltage/current
None K3MA-J
100-240VAC
K3MA-J
24VAC/VDC
2 relay contact
outputs (SPST-NO)
K3MA-J-A2
100-240VAC
K3MA-J-A2
24VAC/VDC
Specifications Chapter 9
