Omron SYSDRIVE 3G3JV

9-15

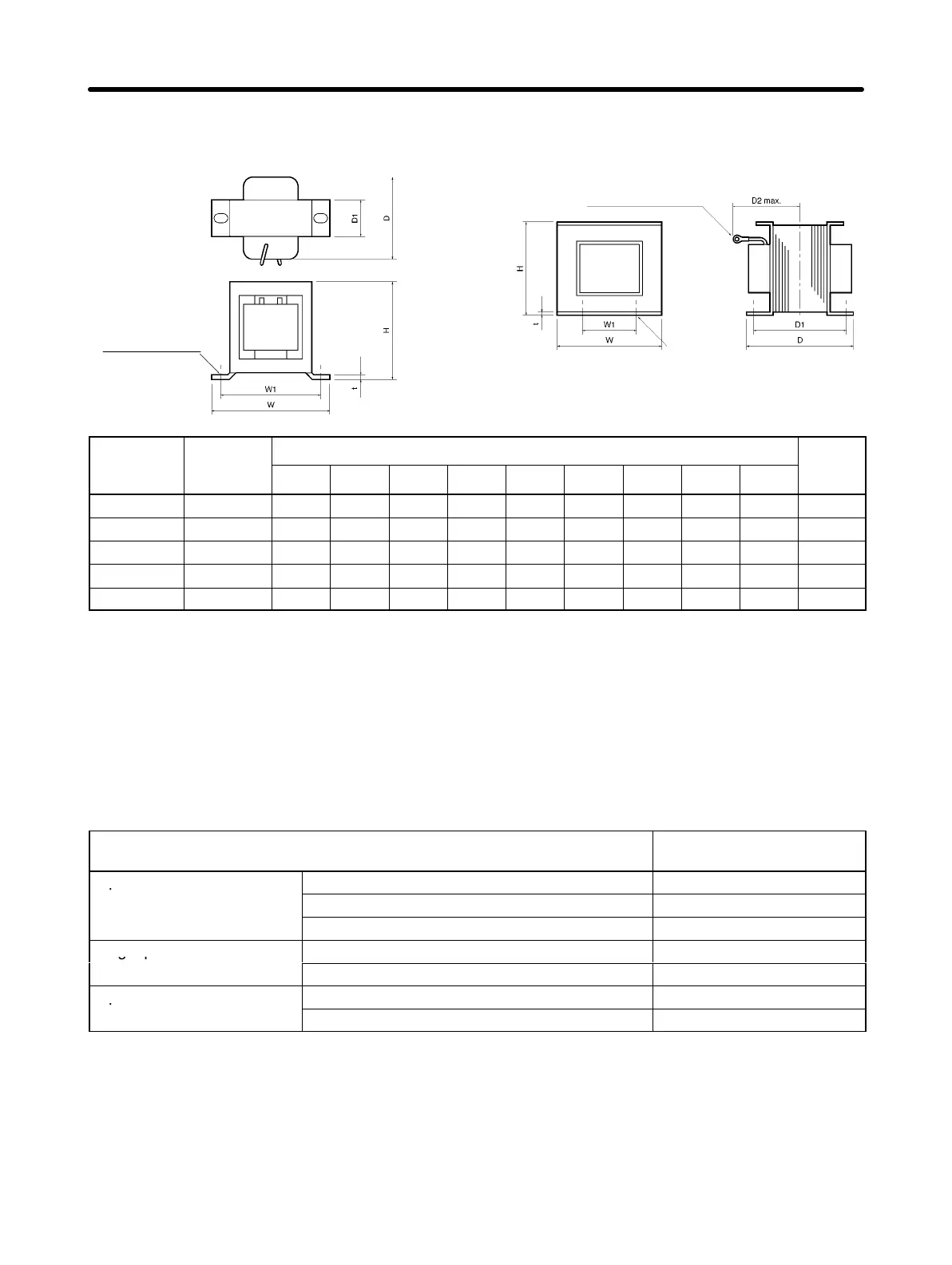

H External Dimensions (mm)
External Dimension 1
Two, d1
mounting holes
External Dimension 2
Two, d2
mounting holes
Four, d1
mounting holes
Model
3G3HV
External
dimen
Dimension (mm)
Weight
(kg)
3G3HV-
PUZDABj
dimen-
sion
H W W1 D D1 D2 t d1 d2
(kg)
5.4A8MH 1 53 85 74 60 32 --- 0.8 M4 --- 0.8
18A3MH 2 76 86 60 72 55 80 1.2 M4 M5 2.0
3.2A28MH 1 53 85 74 60 32 --- 0.8 M4 --- 0.8
5.7A11MH 1 60 90 80 60 32 --- 0.8 M4 --- 1.0
12A6.3MH 2 76 86 60 72 55 80 1.2 M4 M5 2.0
9-2-10 DIN Track Mounting Bracket
H 3G3IV-PEZZ08122j
An adapter making it possible to easily mount the Inverter to DIN tracks.
H Applicable Model
Inverter DIN Track Mounting
Bracket
3-phase 200 V AC
3G3JV-A2001/-A2002/-A2004/-A2007 3G3IV-PEZZ08122A
p
3G3JV-A2015/-A2022 3G3IV-PEZZ08122B
3G3JV-A2037 3G3IV-PEZZ08122C
Single-phase 200 V AC
3G3JV-AB001/-AB002/-AB004 3G3IV-PEZZ08122A
gp
3G3JV-AB007/-AB015 3G3IV-PEZZ08122B
3-phase 400 V AC
3G3JV-A4002/-A4004/-A4007/-A4015/-A4022 3G3IV-PEZZ08122B
p
3G3JV-A4037 3G3IV-PEZZ08122C
Specifications Chapter 9
