Omron SYSDRIVE 3G3JV User Manual

9-17

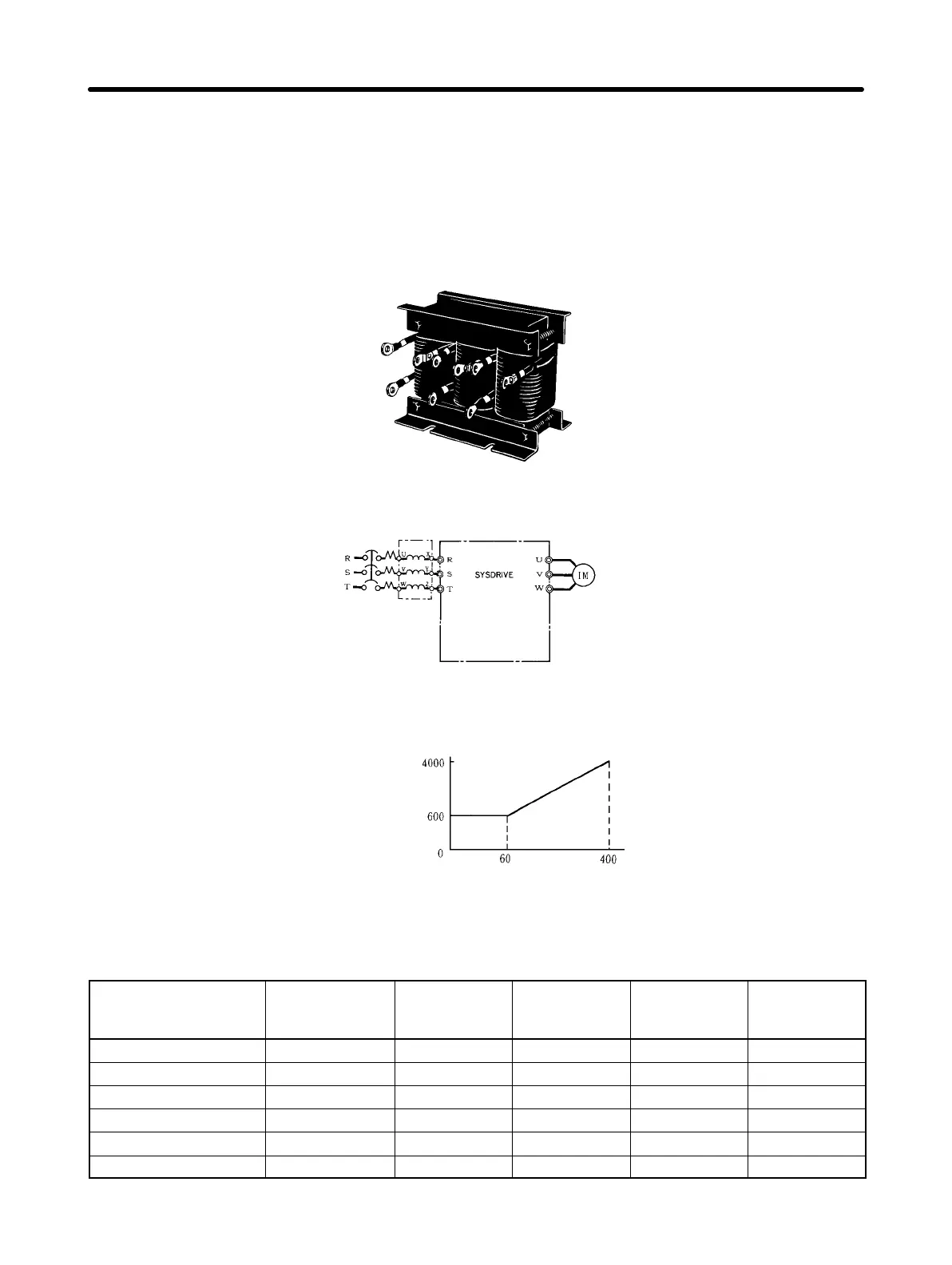

9-2-11 AC Reactor
H 3G3IV-PUZBABj (Yaskawa Electric)
The AC Reactor suppresses harmonic current generated from the Inverter and improves the power fac-
tor of the Inverter. Connect the AC Reactor to the Inverter if the capacity of the power supply is much
larger than that of the Inverter. Select the AC Reactor model from the following table according to the
motor capacity.
H Connection Example
MCCB AC Reactor
Motor
H Applicable Range
Power supply
capacity (kVA)
AC Reactor required
for smooth operation
under present power
supply conditions
AC Reactor
not required
Inverter capacity (kVA)
H Applicable Models and Dimensions
D 200-V Class (3-phase Input)
Max. applicable
motor capacity (kW)
Model
3G3IV-
PUZBABj
Current (A) Inductance
(mH)
Loss (W) Weight (kg)
0.1 to 0.2 2A7.0MH 2 7.0 8 2.5
0.4 2.5A4.2MH 2.5 4.2 15 2.5
0.75 5A2.1MH 5 2.1 15 2.5
1.5 10A1.1MH 10 1.1 25 3
2.2 15A0.71MH 15 0.71 30 3
3.7 20A0.53MH 20 0.53 35 3
Specifications Chapter 9

Omron SYSDRIVE 3G3JV Specifications

General

Model	SYSDRIVE 3G3JV
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Frequency Range	50/60 Hz
Control Method	V/f Control
Braking Unit	Built-in
Cooling Method	Fan cooling
Enclosure Rating	IP20
Voltage Class	200V class
Overload Capacity	150% of rated current for 60 s
Protection	Overcurrent, overvoltage, undervoltage, overheat
Communication	RS-485
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +65°C
Humidity	5-90% RH (non-condensing)
Altitude	Up to 1000 m
