Omron SYSDRIVE 3G3JV

9-26

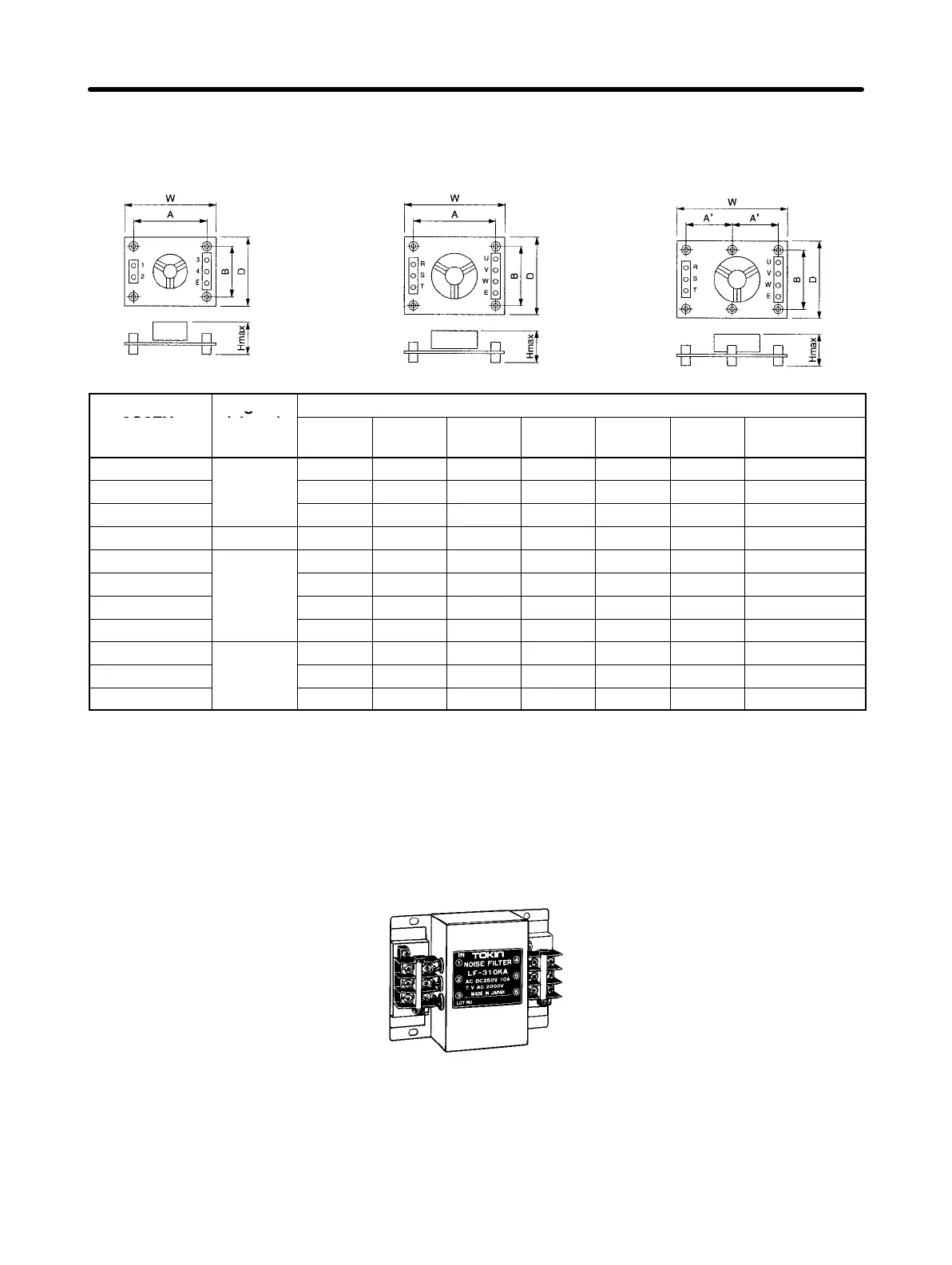

H Dimensions
Dimensions 1
(Single-phase Input)
Dimensions 2
(Three-phase Input)
Dimensions 3
(Three-phase Input)
Model
3G3EV
Figure
(b )
Dimension (mm)
3G3EV-
g
(above)
W D H max. A A’ B Mounting
screw
PLNFD2103DY
2
120 80 55 108 --- 68 M4 × 4, 20 mm
PLNFD2153DY 120 80 55 108 --- 68 M4 × 4, 20 mm
PLNFD2203DY 170 90 70 158 --- 78 M4 × 4, 20 mm
PLNFD2303DY 3 170 110 70 --- 79 98 M4 × 6, 20 mm
PLNFB2102DY
1
120 80 50 108 --- 68 M4 × 4, 20 mm
PLNFB2152DY 120 80 50 108 --- 68 M4 × 4, 20 mm
PLNFB2202DY 120 80 50 108 --- 68 M4 × 4, 20 mm
PLNFB2302DY 130 90 65 118 --- 78 M4 × 4, 20 mm
PLNFD4053DY
3
170 130 75 --- 79 118 M4 × 6, 30 mm
PLNFD4103DY 170 130 95 --- 79 118 M4 × 6, 30 mm
PLNFD4153DY 170 130 95 --- 79 118 M4 × 6, 30 mm
9-3-3 Output Noise Filter
H 3G3IV-PLFj (Tokin)
The Output Noise Filter suppresses the generated noise of the Inverter from being transmitted to the
output line. Connect the Output Noise Filter to the output side of the Inverter.
Specifications Chapter 9
