9-27

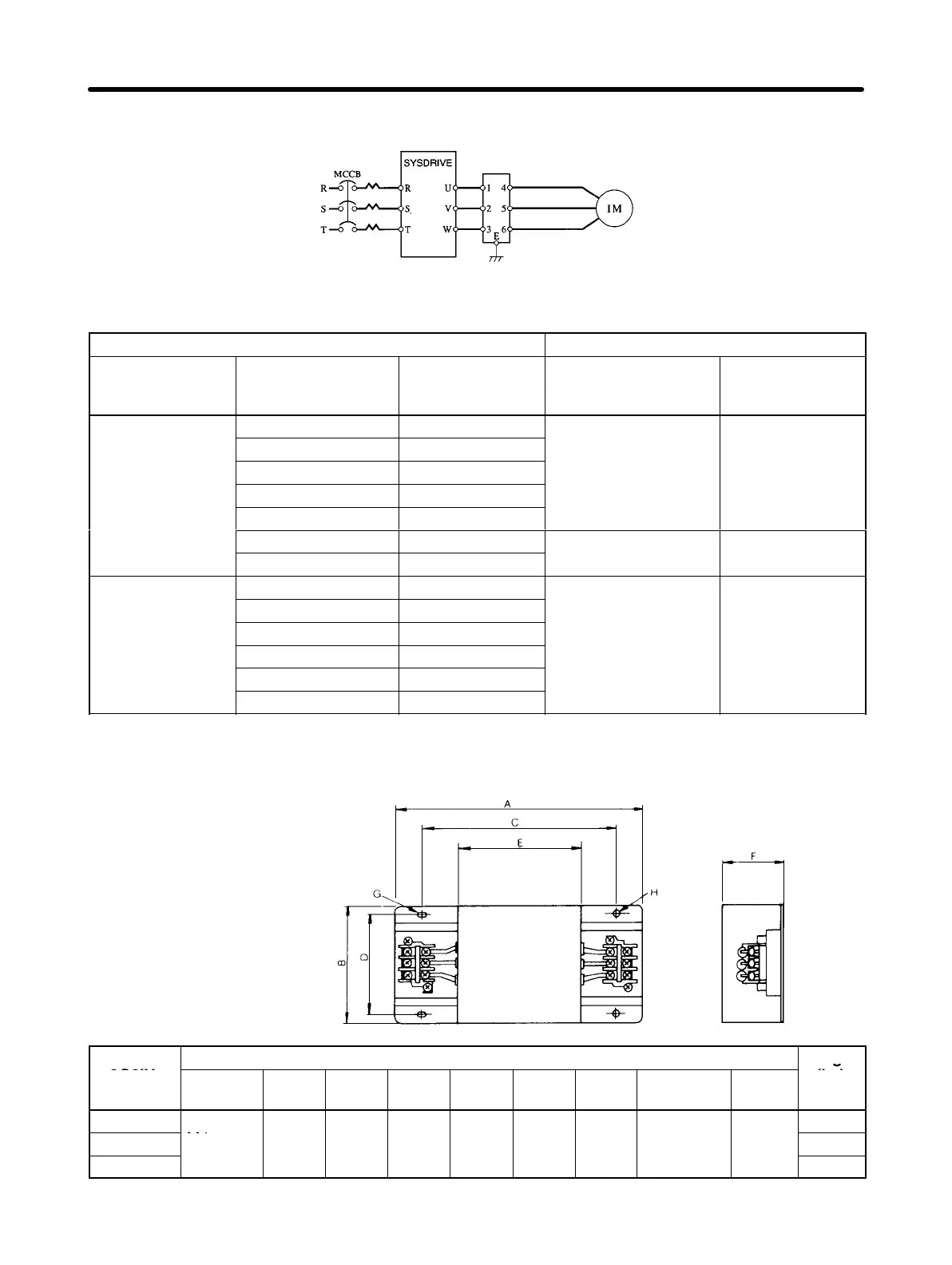

H Connection Example
Noise filter
H Applicable Models
Inverter Output Noise Filter
Voltage class Max. applicable
motor capacity
(kW)
Inverter capacity
(kVA)
Model Rated current (A)
200-V class
0.1 0.3
3G3IV-PLF310KA 10
0.2 0.6
0.4 1.1
0.75 1.9
1.5 3.0
2.2 4.2
3G3IV-PLF320KA 20
3.7 6.7
400-V class
0.2 0.9
3G3IV-PLF310KB 10
0.4 1.4
0.75 2.6
1.5 3.7
2.2 4.2
3.7 6.5
H Dimensions
External Dimensions
Model
3G3IV
Dimensions (mm)
Weight
(k )
3G3IV-
Terminal
board
A B C D E F G H
g
(kg)
PLF310KA
TE-K5.5
M4
140 100 100 90 70 45 7 × 4.5 dia. 4.5 dia.
0.5
PLF320KA
M4
0.6
PLF310KB 0.5
Specifications Chapter 9
