Omron SYSDRIVE 3G3JV

1-4

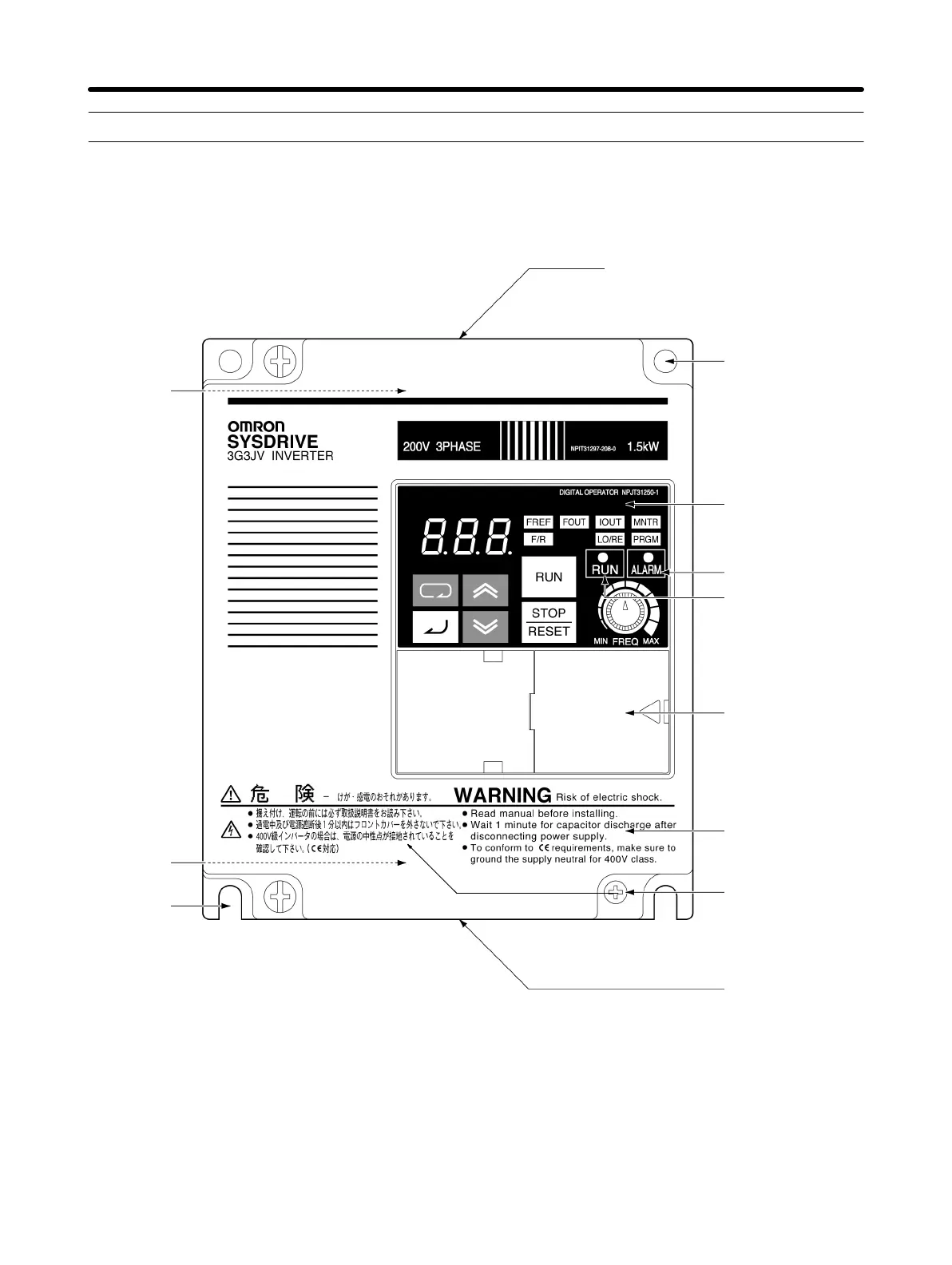

1-2 Nomenclature
H Panel
Terminal
block
Top protection cover
Mounting holes
(Two)
Digital Operator
ALARM display
RUN indicator
Optional cover
Front cover
Front cover
mounting screw
Bottom protection
cover
Terminal
block
U-shaped
cutouts
(Two)
Note 1. The front cover functions as a terminal cover. The Digital Operator Unit cannot be removed.
Note 2. Instead of mounting holes, each of the following models has two U-shaped cutouts lo-
cated diagonally.
3G3JV-A2001 (0.1 kW), 3G3JV-A2002 (0.25 kW), 3G3JV-A2004 (0.55 kW), and
3G3JV-A2007 (1.1 kW)
3G3JV-AB001 (0.1 kW), 3G3JV-AB002 (0.25 kW), and 3G3JV-AB004 (0.55 kW)
Overview Chapter 1
