9-3 Option Specifications
9-3-1 EMC-compatible Noise Filter
• Be sure to select an optimum Noise Filter from the following so that the Inverter will satisfy EMC direc-
tive requirements of the EC Directives.
• Connect the Noise Filter between the power supply and the input terminals (R/L1, S/L2, and T/L3) of
the Inverter.
• The Inverter can be mounted to the upper side of the Noise Filter because the upper side of the Noise
Filter incorporates mounting holes for the Inverter.
H Standard Specifications
Noise Filters for 3-phase 200 V AC Inverter Models
Inverter Noise Filter (Rasmi) for 3-phase 200 V AC Inverter models
Model 3G3JV- Model 3G3JV- Rated current (A) Weight (kg)
A2001/A2002/A2004/A2007 PRS2010J 10 0.8
A2015/A2022 PRS2020J 16 1.0
A2037 PRS2030J 26 1.3
Noise Filters for Single-phase 200 V AC Inverter Models
Inverter Noise Filter (Rasmi) for single-phase 200 V AC Inverter models
Model 3G3JV- Model 3G3JV- Rated current (A) Weight (kg)
AB001/AB002/AB004 PRS1010J 10 0.6
AB007/AB015 PRS1020J 20 1.0
Noise Filters for 3-phase 400 V AC Inverter Models
Inverter Noise Filter (Rasmi) for 3-phase 200 V AC Inverter models
Model 3G3JV- Model 3G3JV- Rated current (A) Weight (kg)
A4002/A4004 PRS3005J 5 1.0
A4007/A4015/A4022 PRS3010J 10 1.0
A4037 PRS3020J 15 1.1

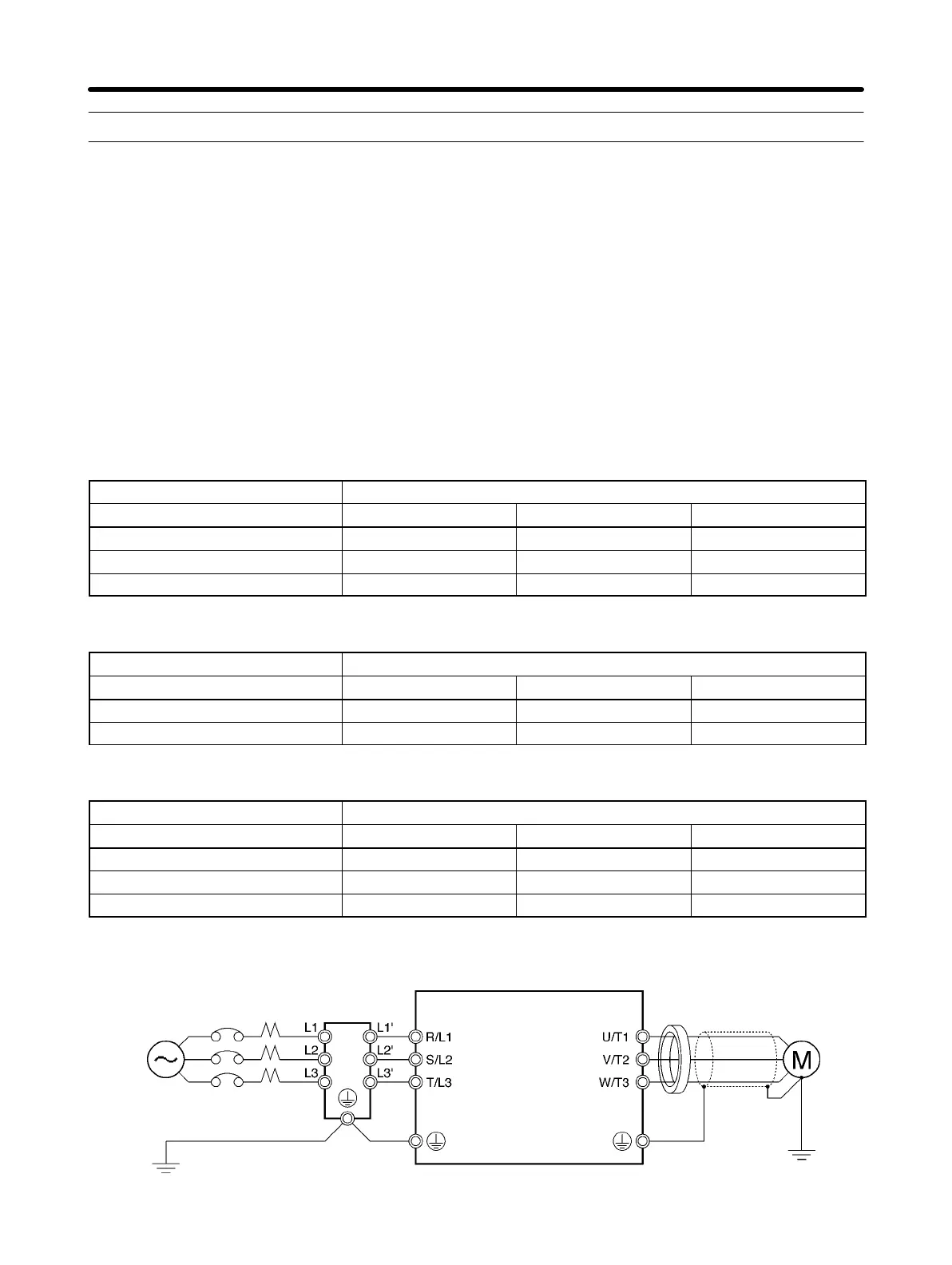

H Connection Example
MCCBs
Noise Filter
3-phase 200 V AC or
single-phase 200 V AC
3-phase 400 V AC
Clamp core
Specifications Chapter 9
