Omron SYSDRIVE 3G3JV

!
!
!
!
!
2-4

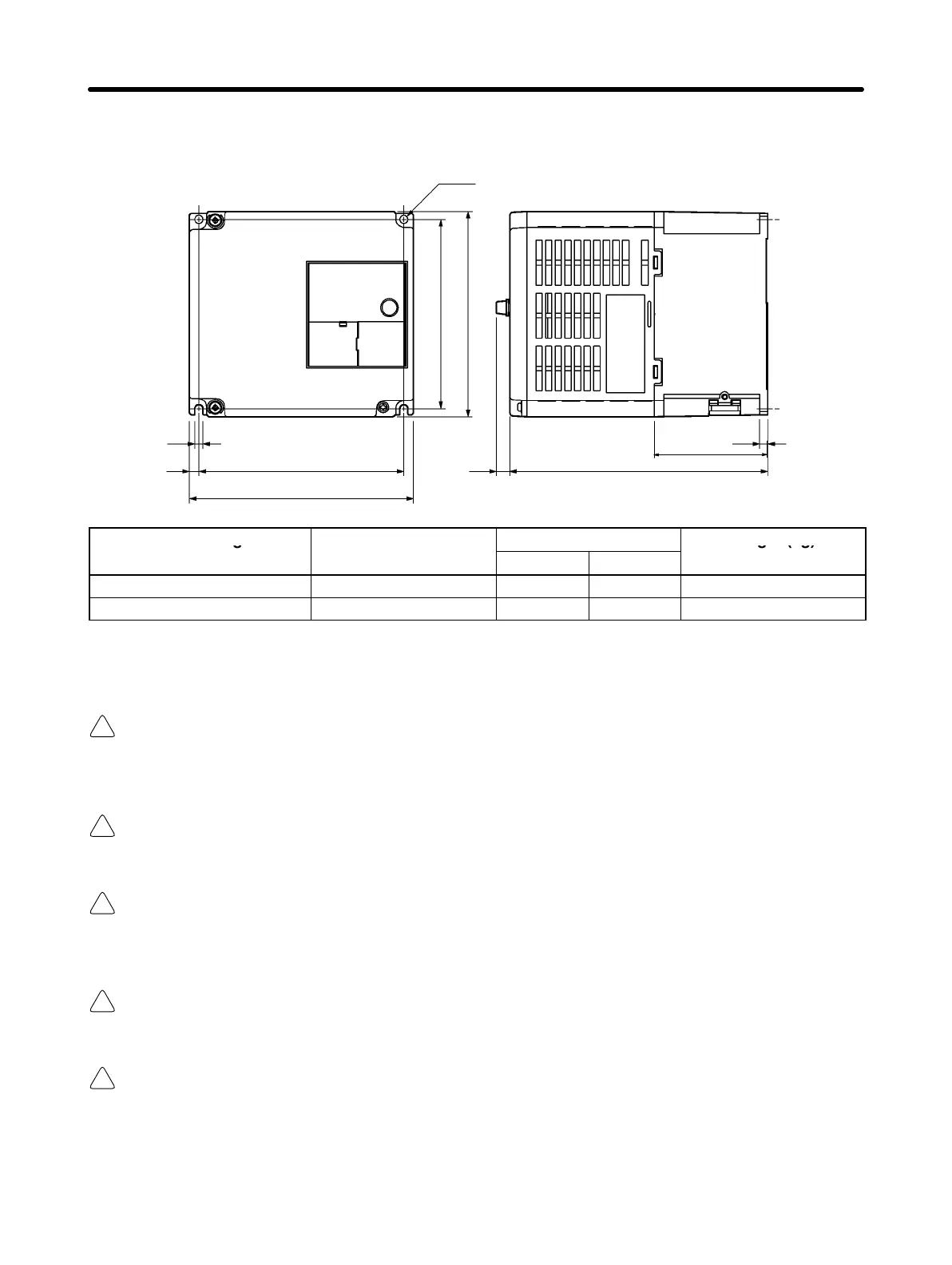

D 3G3JV-A2037 (3.7 kW) 3-phase 200-V AC Input
3G3JV-A4037 (3.7 kW) 3-phase 400-V AC Input
5
6
128
140
118 128
8.5
5
D
Two, 5-dia. holes
D1
Rated voltage Model 3G3JV-
Dimensions (mm)
Weight (kg)
g
D D1
g(g)
3-phase 200 V AC A2037 161 71 Approx. 2.1
3-phase 400 V AC A4037 161 71 Approx. 2.1
2-1-2 Installation Conditions
WARNING Provide an appropriate stopping device on the machine side to secure safety. (A
holding brake is not a stopping device for securing safety.) Not doing so may result in
injury.
WARNING Provide an external emergency stopping device that allows an instantaneous stop of
operation and power interruption. Not doing so may result in injury.
Caution Be sure to install the product in the correct direction and provide specified clear-
ances between the Inverter and control panel or with other devices. Not doing so
may result in fire or malfunction.
Caution Do not allow foreign objects to enter inside the product. Doing so may result in fire or
malfunction.
Caution Do not apply any strong impact. Doing so may result in damage to the product or
malfunction.
Design Chapter 2
