Omron SYSDRIVE 3G3JV

9-8
9-2-2 Adapter Panel
H 3G3JV-PSI232Jj
An Adapter Panel is required as an interface to connect a Digital Operator (3G3IV-PJVOP140 or 3G3IV-
PJVOP146) to the 3G3JV Inverter.
There are two models of Adapter Panel available. The 3G3JV-PSI232J is permanently installed and
cannot be removed and the 3G3JV-PSI232JC for copying parameters is installed so that it can be
removed.
H Connections
3G3JV
Inverter
Adapter Panel
3G3JV-PSI232J (permanent)
3G3JV-PSI232JC (removeable)
Digital Operator Connection
Cable
3G3IV-PCN126 (1 m)
3G3IV-PCN326 (3 m)
Digital Operator
3G3IV-PJVOP146
3G3IV-PJVOP140 + 3G3IV-
PEZZ08386A (Digital Operator Case)

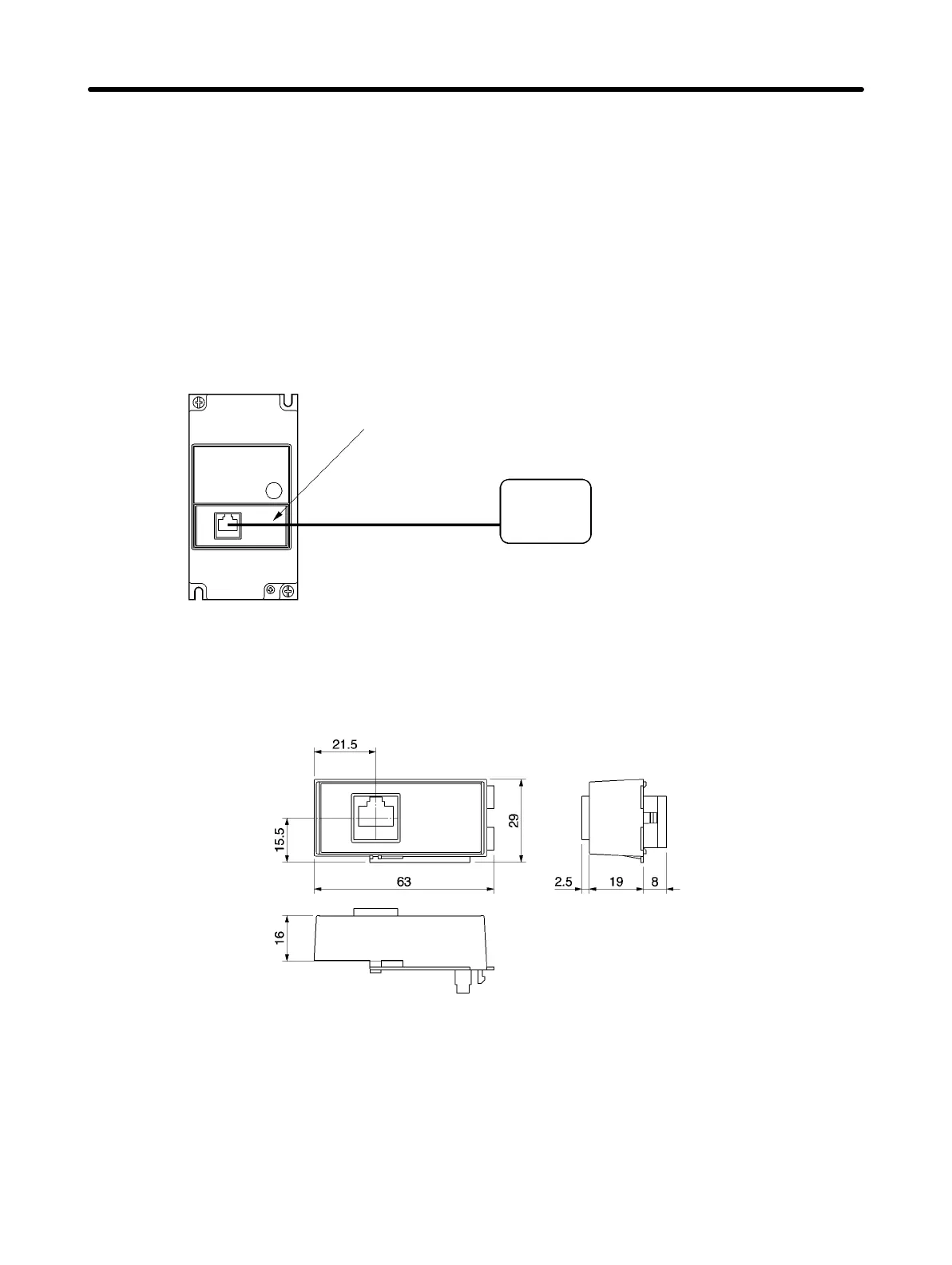

H Dimensions (mm)
D 3G3JV-PSI232J (Permanent)
Specifications Chapter 9
