9-18
Model
3G3IV
Dimension (mm)
3G3IV-
PUZBABj
A B C D E F H J K L M
2A7.0MH 120 71 115 40 50 105 20 M6 10.5 7 M4
2.5A4.2MH 120 71 120 40 50 105 20 M6 10.5 7 M4
5A2.1MH 120 71 120 40 50 105 20 M6 10.5 7 M4
10A1.1MH 130 88 130 50 65 130 22 M6 11.5 7 M4
15A0.71MH 130 88 130 50 65 130 22 M6 11.5 7 M4
20A0.53MH 130 88
(See
note.)
105 50 65 130 22 M6 11.5 7 M5
Note B1 = 114
D 400-V Class (3-phase Input)
Max. applicable
motor capacity (kW)
Model
3G3IV-
PUZBABj
Current (A) Inductance
(mH)
Loss (W) Weight (kg)
0.2 to 0.4 1.3A18.0MH 1.3 18.0 15 2.5
0.75 2.5A8.4MH 2.5 8.4 15 2.5
1.5 5A4.2MH 5 4.2 25 3
2.2 7.5A3.6MH 7.5 3.6 35 3
3.7 10A2.2MH 10 2.2 43 3
Model
3G3IV
Dimension (mm)
3G3IV-
PUZBABj
A B C D E F H J K L M
1.3A18.0MH
120 71 120 40 50 105 20 M6 10.5 7 M4
2.5A8.4MH
120 71 120 40 50 105 20 M6 10.5 7 M4
5A4.2MH
130 88 130 50 70 130 22 M6 9 7 M4
7.5A3.6MH
130 88 130 50 70 130 22 M6 9 7 M4
10A2.2MH
130 88 130 50 65 130 22 M6 11.5 7 M4

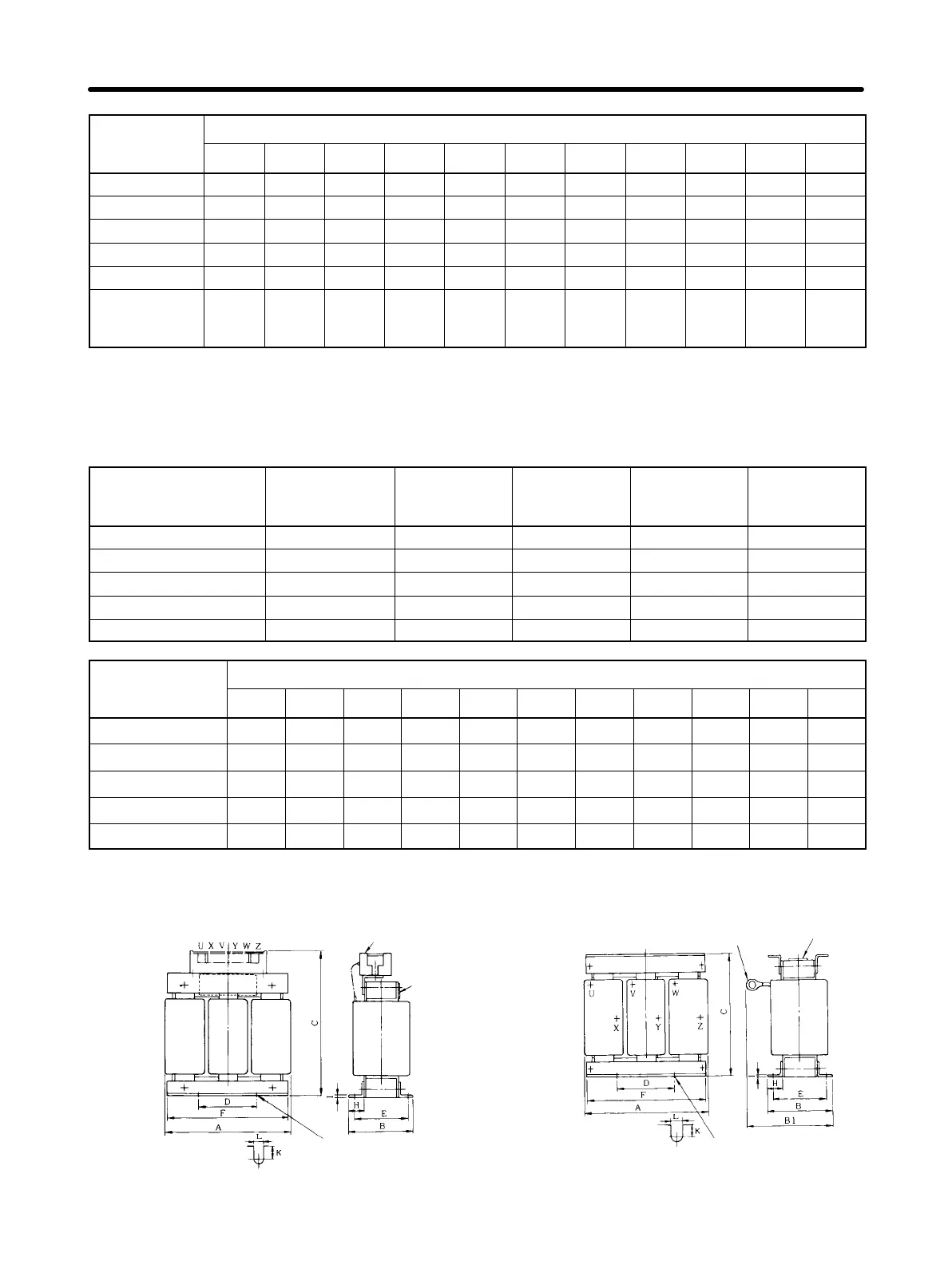

Dimensions
M Terminal
Nameplate
Mounting Dimensions
4-J mounting bolt
All models except 3G3IV-PUZBAB20A0.53MH
3G3IV-PUZBAB20A0.53MH
M Terminal
Nameplate
4-J mounting bolt
Mounting Dimensions
Specifications Chapter 9
