2-10

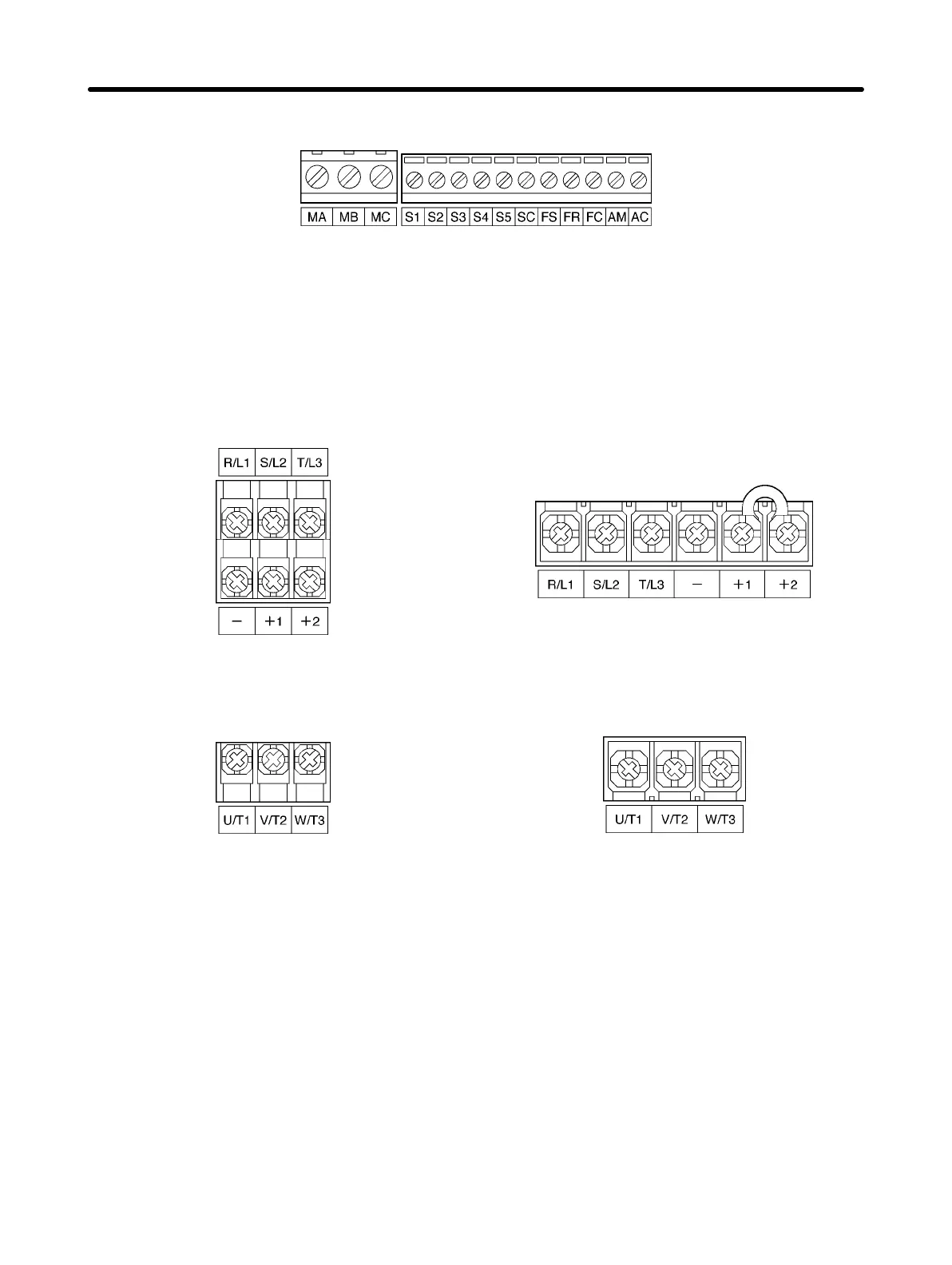

H Arrangement of Control Circuit Terminals
H Arrangement of Main Circuit Terminals
D 3G3JV-A2001 to 3G3JV-A2007
3G3JV-AB001 to 3G3JV-AB004
Main Circuit Input Terminals
(Upper Side)
Main Circuit Output Terminals
(Lower Side)
D 3G3JV-A2015 to 3G3JV-A2037
3G3JV-AB007 to 3G3JV-AB015
3G3JV-A4002 to 3G3JV-A4037
Main Circuit Input Terminals
(Upper Side)
Main Circuit Output Terminals
(Lower Side)
Design Chapter 2
