Appendices
A-12
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

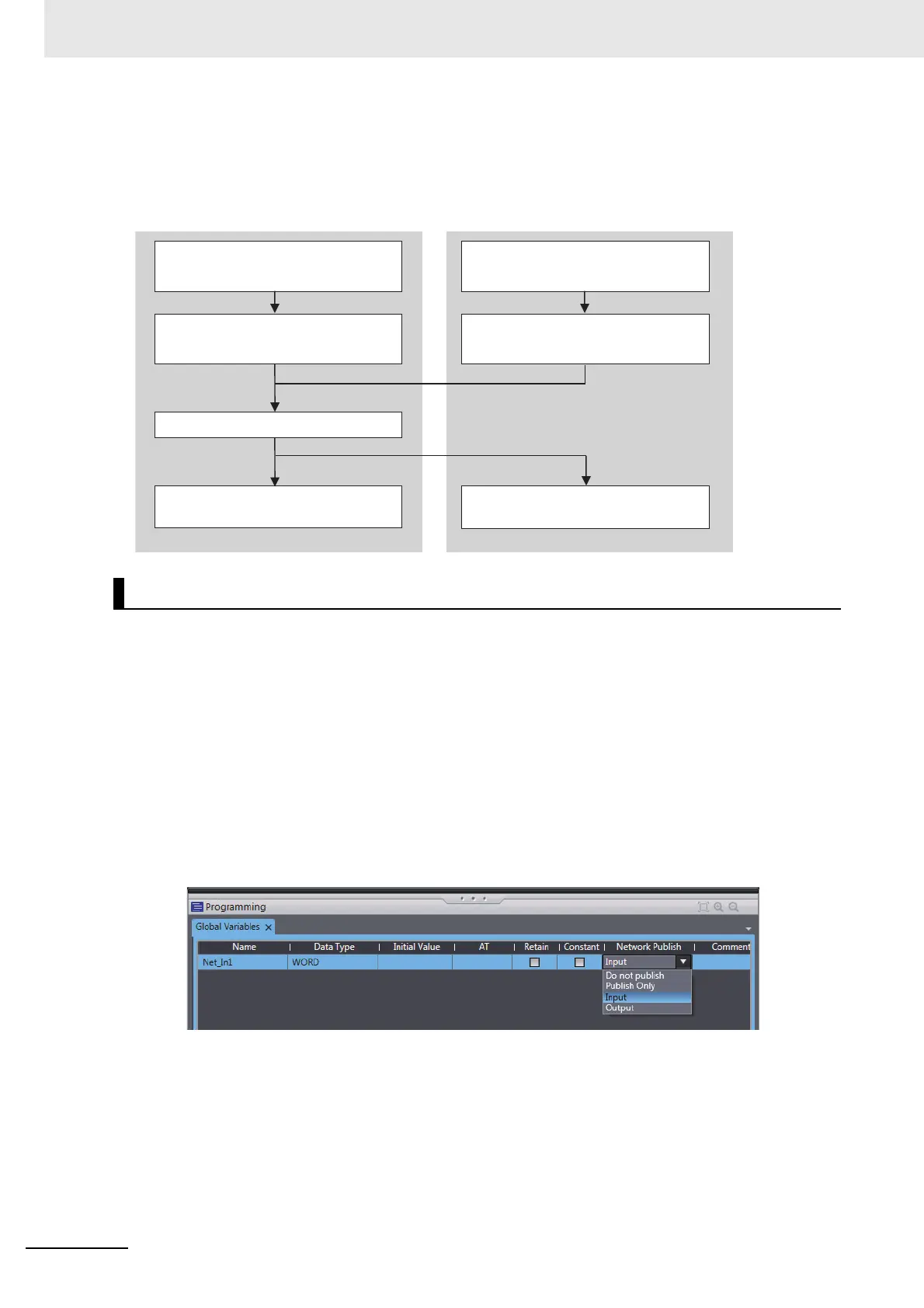

Follow the flow below to set the settings to Controllers 1 and 2 for which to establish EtherNet/IP con-
nections.
The required settings for the originator device and the target device are shown below.
Register the network variable that is sent and received using the EtherNet/IP connections.
Refer to the Sysmac Studio Version 1 Operation Manual (Cat. No. W504) for the operations for register-
ing variables.
1 Assign the network variable to the tag used for the EtherNet/IP connection for Controller 1 (orig-
inator device).
This network variable receives data from Controller 2 (target device).
Set the Network Publish attribute to Input or Output in the Global Variable Table for the variable
so that the variable serves as a network variable, i.e., the variable can be used for the Ether-
Net/IP connections.
In this example, set the network variable for Controller 1 as shown below.
• Variable name: Net_In1
• Data type: WORD
• Network Publish attribute: Input
Registering the Network Variable for the Originator Device
Settings for the originator device (Controller 1) Settings for the target device (Controller 2)
Registering the network variable
Registering the network variable
Registering the tag and tag set Registering the tag and tag set
Setting connections
Transferring settings for the tag and
the tag set
Transferring settings for the connection,
the tag, and the tag set
(Refer to page A-12.)
(Refer to page A-14.)
(Refer to page A-17.)
(Refer to page A-25.)
(Refer to page A-25.)
(Refer to page A-29.)
(Refer to page A-29.)
