Omron ZX Series User Manual

Through-beam Sensor Heads: FUN Mode Functions Section 3-8
82
n Offsetting Display Values: One-point Scaling A
Use one-point scaling to offset the display values. Input the width to be dis-
played for the current measurement point.
When you input only one point for scaling, only the offset is changed with-
out changing the range of display values. In this example, the display val-
ues are not inverted.

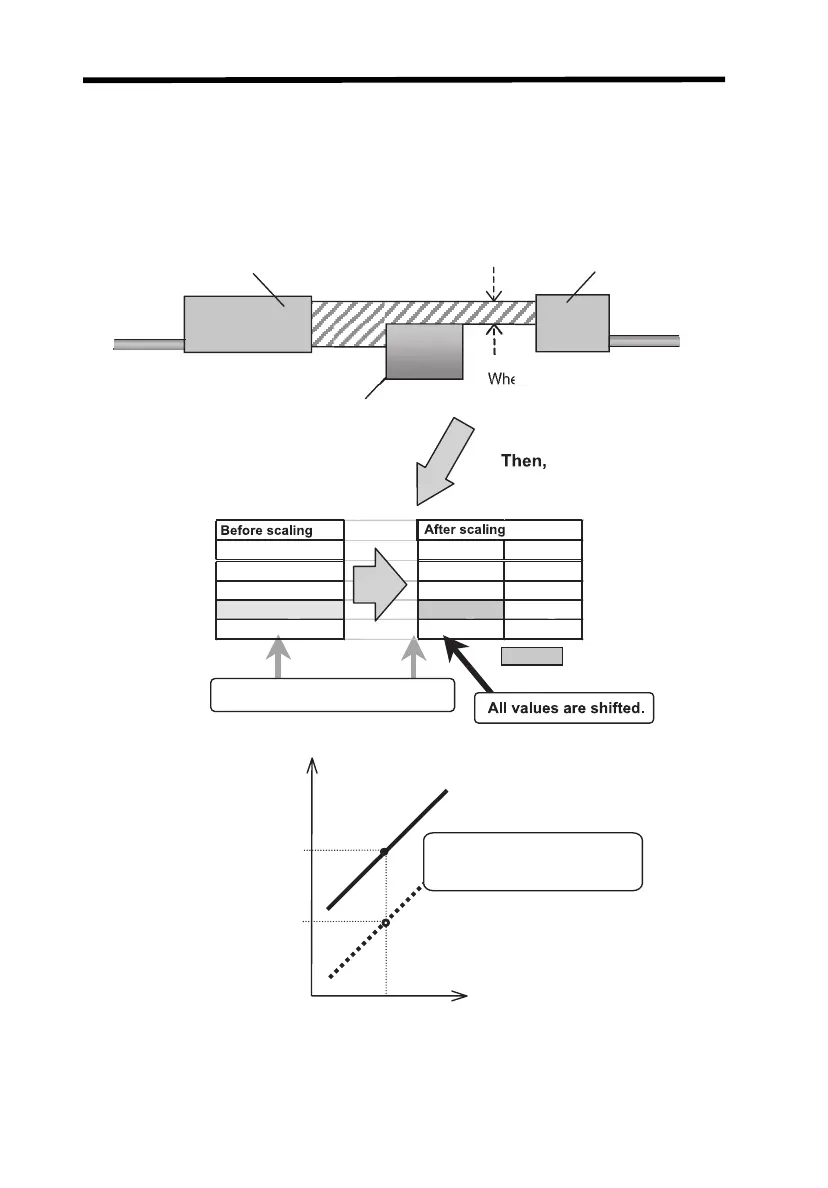

Example: One-point Scaling A
S
ensor Head Emitte
r
X
S
ensor Head Receive
r
When displaying X= 2.5 as
5 mm is required
Sensing object
1.5 4.0 1.5
2.0 4.5 2.0
2.5 5.0 2.5
3.0 5.5 3.0
Measured value = Display value
Measured value
Display value
: Scaling value input
2.5 mm is displayed as 5.0 mm.
Display value
(mm)
5.0
2.5
Despite the offset value,
the range remains unchanged.
2.5
Actual incident beam width (mm)

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
