C200 SOFTWARE
Instruction Manual C200 Part2 A1.doc
optek Danulat GmbH • D-45356 Essen • Germany
page 81
Pulse Frequency Ouput

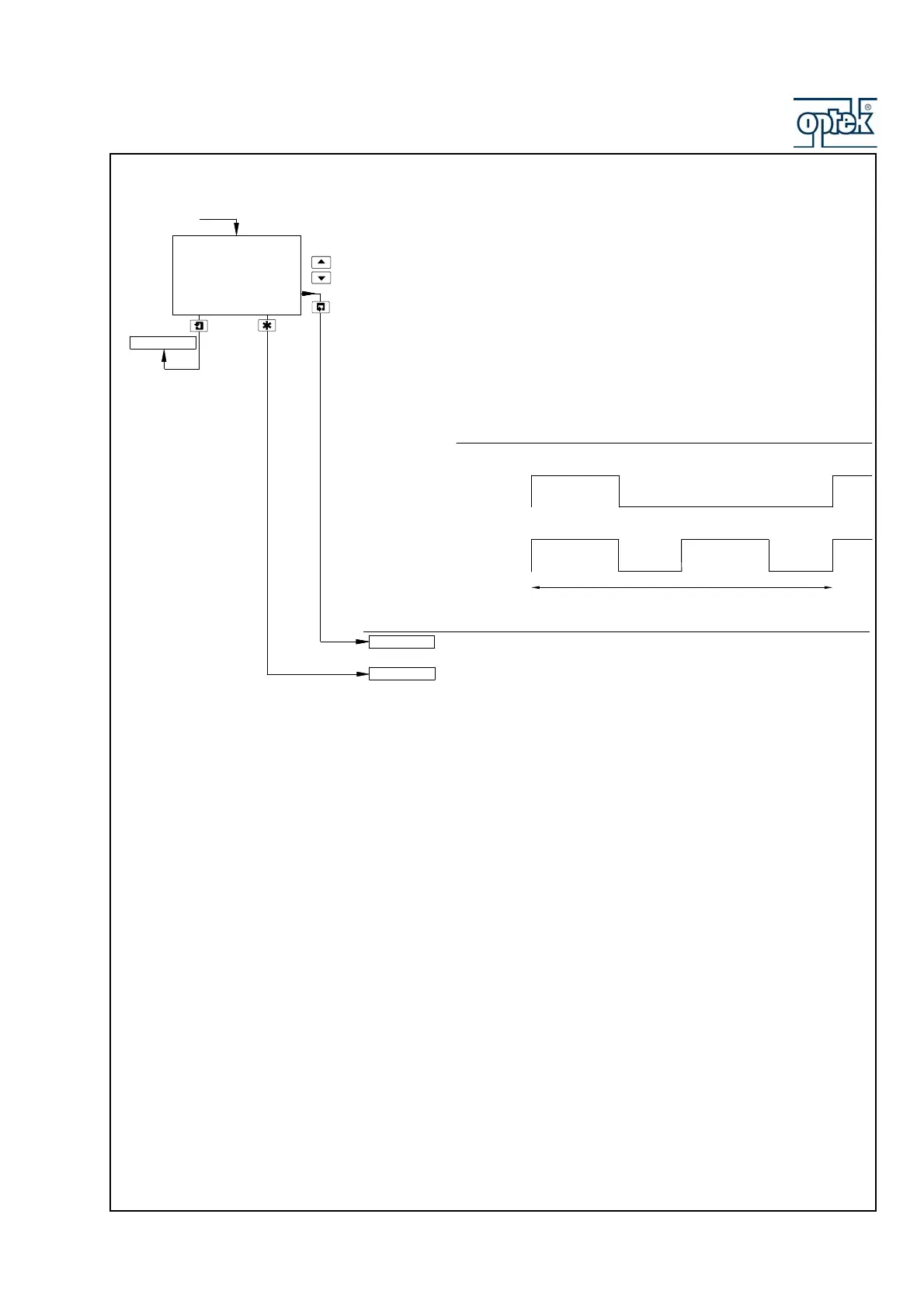

The pulse frequency output is the number of relay pulses per minute required for
100% control output. The actual number of pulses per minute is calculated using
the following equation:
Actual pulses per minute = % control output x pulse frequence output / 100
Set the pulse frequency, between 1 and 120 pulses per minute in 1 pulse per
minute increments.
Note. Changes to the pulse frequency do not take effect until the start of a new
cycle.
See Section 5.2.7.2.
See Section 5.2.8.
Pulses/Minute
60
Output Type
set to Pulse
Power Recovery
PID Controller
CONFIG. SECURITY
Energized
Output = 50%
De-energized
Energized
De-energized
Pulse Frequency = 120 pulses per minute
Permanently de-energized
Output = 0%
Output = 100%
0.3s 0.2s 0.3s 0.2s
0.7s
0.3s
