C200 SOFTWARE
Instruction Manual C200 Part2 A1.doc
optek Danulat GmbH • D-45356 Essen • Germany
page 80

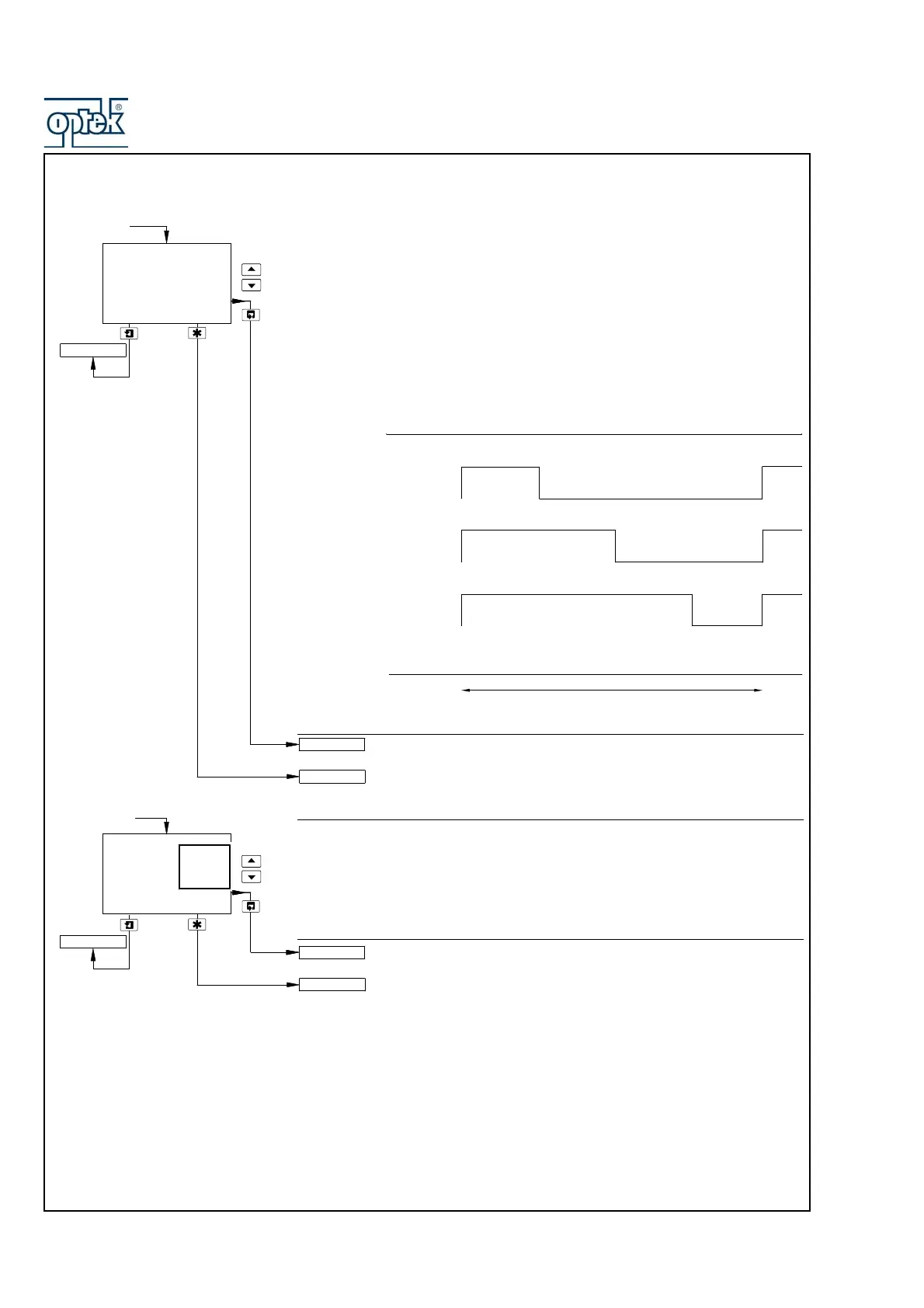

Time Proportioning Output
The time proportioning output value is calculated using the following equation:
on time = control output x cycle time / 100
Set the cycle time, between 1.0 and 300.0 seconds in 0.1 second increments –
see Appendix 8.3, Fig. B4 Mode C.
Note. Changes to the cycle time do not take effect until the start of a new cycle.
See Section 5.2.7.2.
See Section 5.2.8.
Analog Output
Set the analog current output range.
See Section 5.2.7.2.
See Section 5.2.8.
Cycle Time
10.0
Secs
Power Recovery
Output Type
set to Time
PID Controller
CONFIG. SECURITY
2.5s 7.5s
Energized
Output = 50%
Output = 75%
De-energized
Energized
De-energized
2.5s
Cycle Time = 10s
Energized
Permanently de-energized
Output = 0%
Output = 25%
De-energized
Permanently energized
Output = 100%
7.5s
5s 5s
Output Range
----
4-20mA
0-20mA
0-10mA
Output Type
set to Analog
Power Recovery
PID Controller
CONFIG. SECURITY
To Next Page
